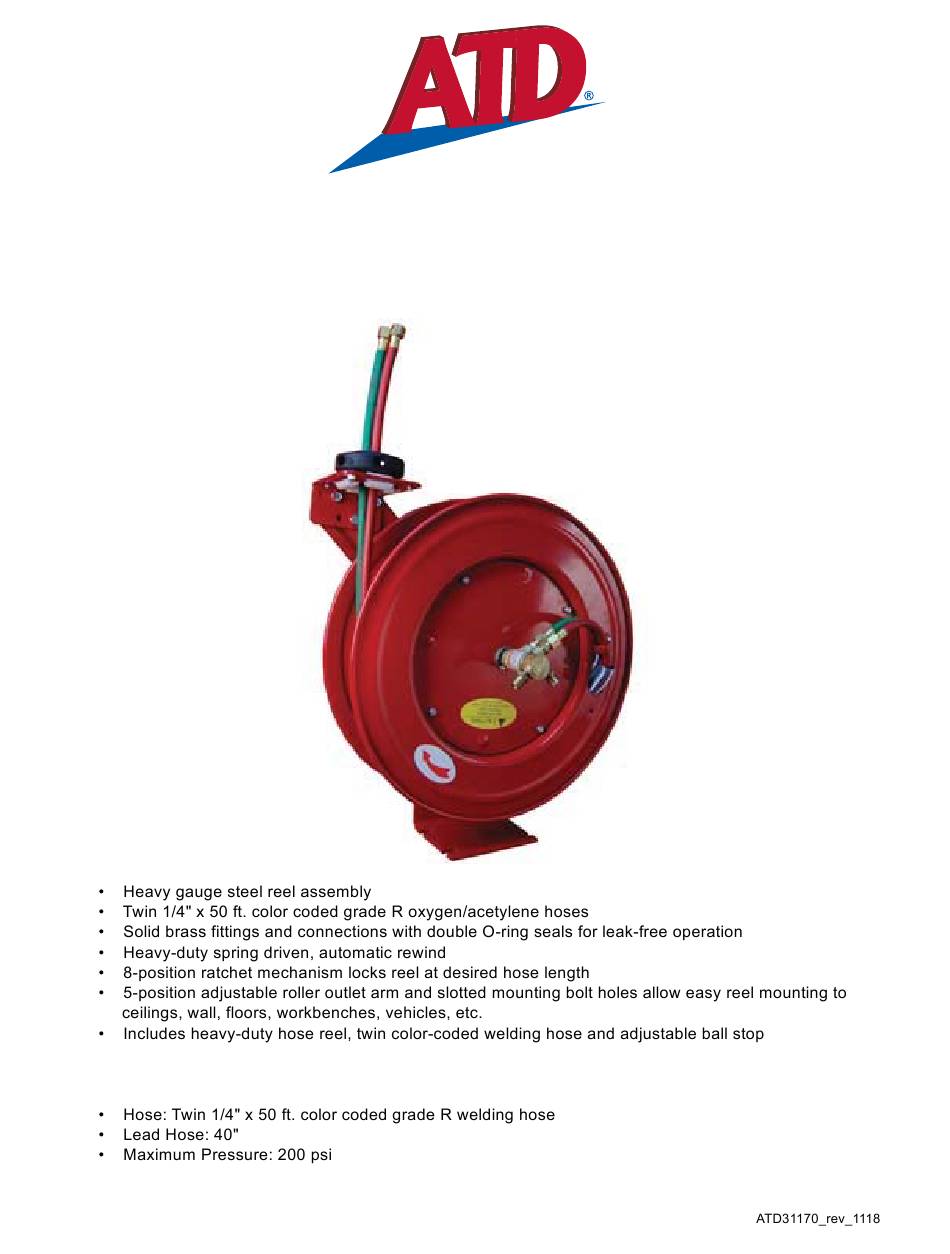

- Page 1 ATD-31170 1/4" x 50' Retractable Dual Hose Welding Reel Owner’s Manual Features: Specifications: Made in China to ATD Tools, Inc. Specifications Visit us at www.atdtools.com...
- Page 2 Save This Manual General Safety Warning and Precautions WARNING: When using this reel, basic safety precautions should always be followed to reduce the risk of personal injury and damage to equipment. Read all instructions before using this tool ’ BURNS BLINDNESS W FUMES GASSES.
- Page 3 6 WARNING: Hose Reel Specific Safety Warnings ’ 2. Risk of Fire and/or Explosion Warning! Leaking Acetylene and Oxygen are extremely hazardous and may result in explosion and fire resulting in SERIOUS INJURY and DEATH. NEVE ’...
- Page 4 “ ” If oil or grease is found, discontinue using the cylinder and immediately contact your supplier. GREEN Unpacking Warning G EE FIGURE 1 BE SURE TO USE TEFLON (PTFE) TAPE ON ALL FITTINGS. THIS TAPE IS SUPPLIED WITH THE UNIT. FAILURE TO USE THIS TAPE WILL RESULT IN GAS LEAKS AND POTENTIAL EXPLOSIONS, FIRES, AND HEALTH PROBLEMS INCLUDING DEATH.
- Page 5 Warning Before attempting to drill into walls or ceilings, make sure no electrical wires or plumbing are in the way or behind the surface you are drilling into. ½” ” B ½” FIGURE 2. FIGURE 2 Operating the Hose Reel EVER retract the Dual-Hose while the gas is on or the torch is lit.
- Page 6 Hose Replacement Warning: Replace the Dual-Hose only with hoses intended for oxygen and acetylene welding: BE SURE TO USE TEFLON (PTFE) TAPE ON ALL FITTINGS. THIS TAPE IS SUPPLIED WITH THE UNIT. FAILURE TO USE THIS TAPE WILL RESULT IN GAS LEAKS AND POTENTIAL EXPLOSIONS, FIRES, AND HEALTH PROBLEMS UP TO AND INCLUDING DEATH.
- Page 7 ATD-31170 ITEM# ORDERING PART# PART DESCRIPTION ITEM# ORDERING PART# PART DESCRIPTION BA E GU E B ACKE A GU E B ACKE A NG C GU E B ACKE A GU E B ACKE A GU E B ACKE A...
- Page 8 WARRANTY 1 YEAR LIMITED WARRANTY THIS WARRANTY AND CONFIRMED RECEIPT(S) SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES...
