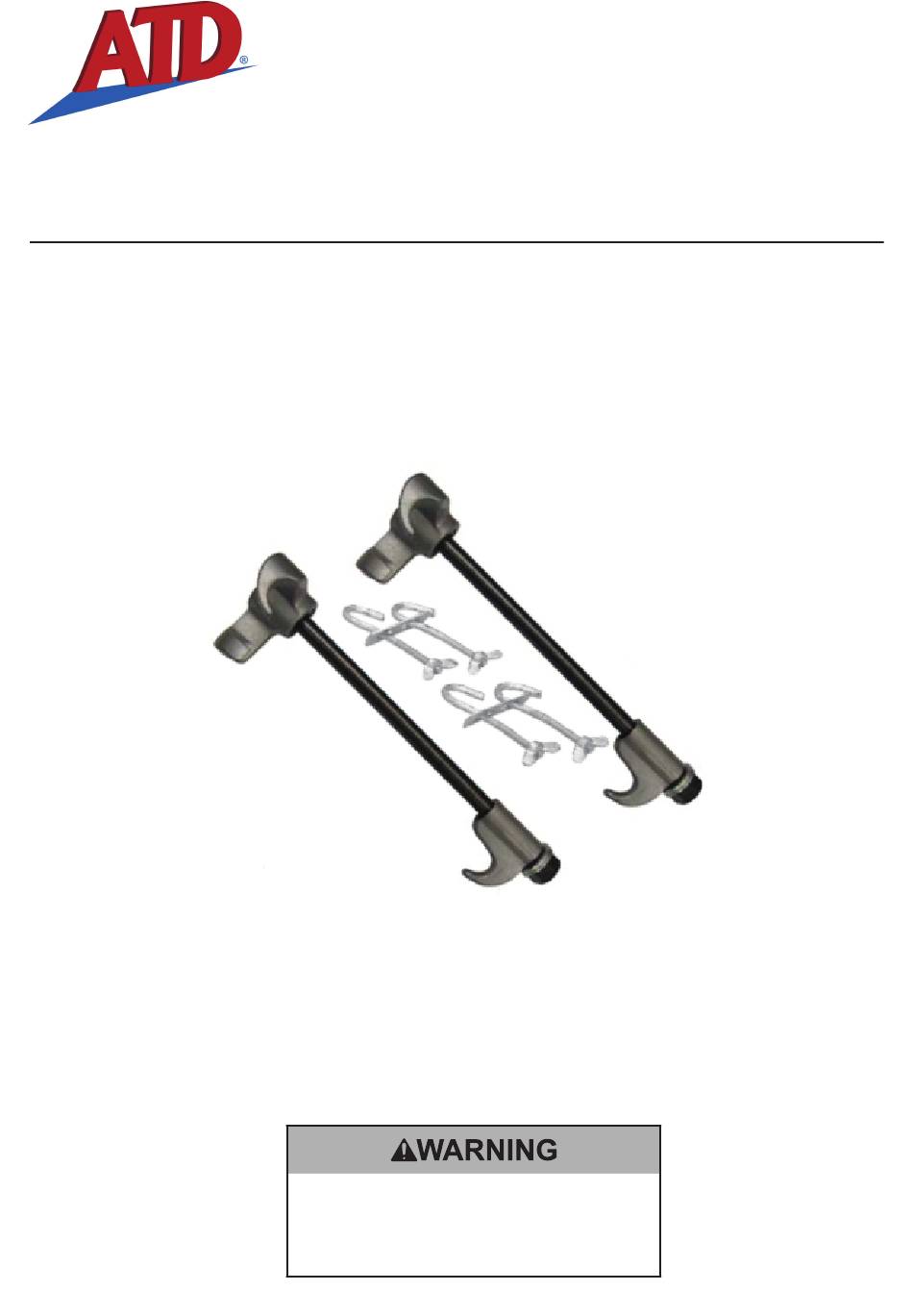

- Page 1 ATD-7551 MacPherson Strut Spring Compressor Set Item 3980 Read this material before using this product. Failure to do so can result in serious injury. SAVE THIS MANUAL.
- Page 2 Use eye and ear protection. Wear ANSI-approved safety goggles during use. Don’t overreach. Keep proper footing and balance at all times. Maximum Spring Diameter 5/8 IN. Maintain tools with care. Keep tools sharp Maximum Strut Spring Outside Diameter 5.5 IN. and clean for better and safer performance.
- Page 3 Double Puller Operation Hook (2) Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of this product. Before each use, inspect the Safety Hooks, Brackets, and the Puller Hooks on the Strut Spring Compressors.
- Page 4 Puller Bracket (5) Double Support Hook (1) Puller Bar Nut (9) Hook (2) Safety Support Hook (6) Bar Nut (9) Double Support Puller Figure 5 – Tighten the Nuts Evenly Wing Nut (4) Bar (3) Hook (2) WARNING! To prevent serious injury or DEATH from the spring suddenly launching free: Figure 4 –...
- Page 5 Maintenance in this manual must be performed technician. TO PREVENT SERIOUS INJURY FROM TOOL FAILURE: Do not use damaged equipment. If abnormal noise or vibration occurs, have the problem corrected before further use. Cleaning, Maintenance, and Lubrication Before and after each use, inspect the Safety Hooks, Brackets, and the Puller Hooks on the Strut Spring Compressors.
- Page 6 Nomenclature/Terms (For reference only - No repair parts are available seperately) Single Puller Hook Washer Safety Hook Wing Nut Support Bar Bracket Bracket Support Bar Safety Hook Double Puller Hook PLEASE READ THE FOLLOWING CAREFULLY THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE NOMENCLATURE/TERMS DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY.
