Summary of Contents for Hoover HGM600X/1

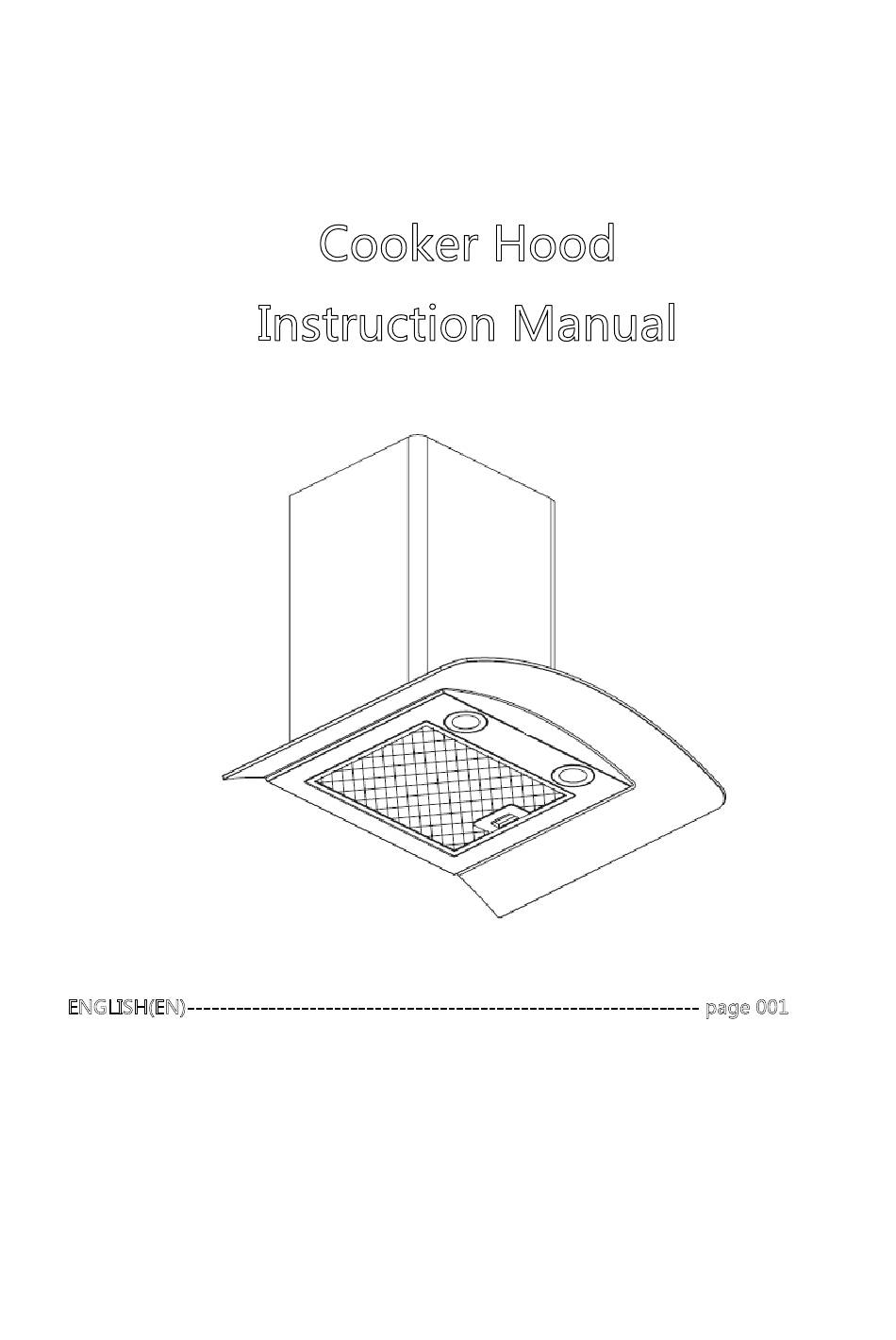

- Page 1 HGM600X/1,HGM610NX/1 Cooker Hood Instruction Manual ENGLISH(EN)--------------------------------------------------------------- page 001...
- Page 2 Cooker Hood Instruction Manual...
-
Page 3: Table Of Contents
Content 1…………………………………..………………………………Safety instructions 2…………………………………..………………………………Installation 3…………………………………..………………………………Start using your cooker hood 4…………………………………..………………………………Troubleshooting 5…………………………………..………………………………Maintenance and cleaning 6…………………………………..………………………………Environment protection... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS his manual explains the proper installation and use of your cooker hood, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference. of a range hood or other cooking fume Never to do: extractor, the operation of open flued... - Page 5 Always to do: ● Always to do: lways put lids on pots and pans when cooking on a gas cooker. ● aution: The appliance and its ● hen in extraction mode, air in the accessible parts can become hot room is being removed by the cooker during operation.
-
Page 6: Installation
INSTALLATION (VENT OUTSIDE) MOUNTING OF THE V-FLAP If the cooker hood does not have an assembled V-flap 1, you should mount the half- parts to its body.The images only show an example of how to mount the V-flap, because the outlet may vary according to different models and configurations. To mount the V-flap 1 you should: •... - Page 7 3. Install the hook on a suitable place once the installation height is fixed, and keep it in line. The fixed position of the inside chimney bracket is the place of chimney. See pic 2. 4. Attach the converter and expansion pipe, and fix the pipe on the converter with a cable tie.
- Page 8 Electrical Installation All installation must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate. Direct Connection The appliance must be connected directly to the mains using an omnipolar circuit breaker with a minimum opening of 3mm between the contacts.
-
Page 9: Start Using Your Cooker Hood
•After the installation ,make sure that the cooker hood is level to avoid grease collection at on end. •Ensure the expansion pipe selected for installation complies with relevant standards and is fire retardant. WARNING: For safety reason, please use only the same size of fixing or mounting screws which are recommended in this instruction manual. -
Page 10: Troubleshooting
works at low speed. Indicator light of low speed will be bright. Press power button again to close it, and its indicator light will be off. All the function operation of the hood will be closed, the hood enters into standby mode, and run by circle. The speed buttons and lamp button can work separately and not controlled by the power button. -
Page 11: Maintenance And Cleaning
Leakage from the connection of Take chimney down and seal. chimney and cover Replace bulbs as per this Lights not working Broken or faulty bulbs instruction. The distance between the Refit the cooker hood to the Insufficient suction cooker hood and the gas top is correct distance. - Page 12 voidmanufactures warrantee. GREASE MESH FILTERS The mesh filters can be cleaned by hand.Soak them for about 3 minute in water with a mild detergent and then brush it gently with a soft brush. Do not apply too much pressure so as to avoid any damage to it . (Leave to dry naturally out of direct sun light) Filters should be washed separately to crockery andkitchen utensils.
- Page 13 NOTE: • Make sure the filter is securely locked. Otherwise, it would loosen and cause danger. • When activated carbon filter attached, the suction power will be lowered. BULB REPLACEMENT The bulb must be replaced by the manufacturer, its Important : service agent or similarly qualified persons.
-
Page 14: Environment Protection
ENVIRONMENTAL PROTECTION: This appliance is labelled in accordance with European Directive 2012/19/EU on Waste Electrical and Electronic Equipment Regulations 2013 regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused).
