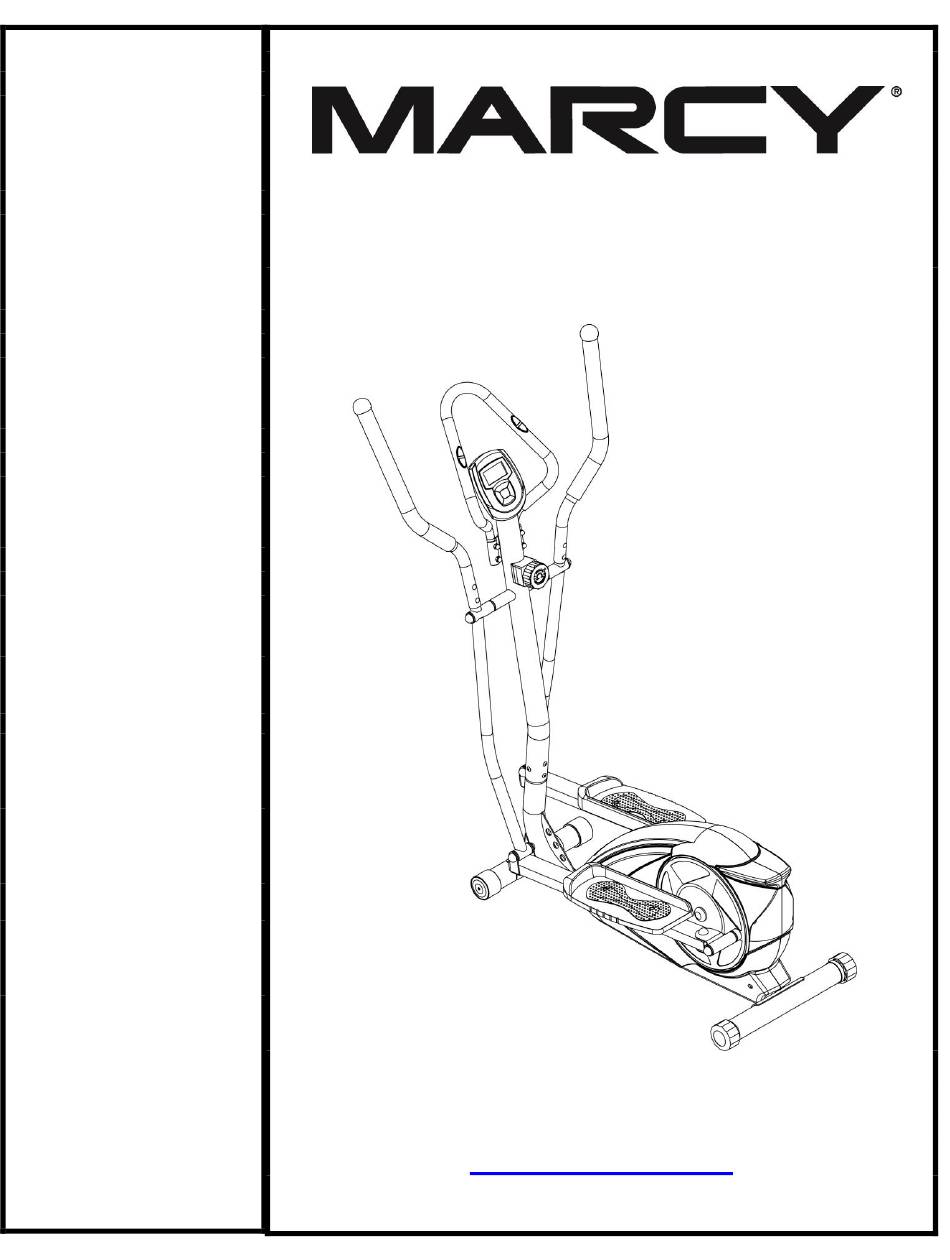

- Page 1 NS-11043E Safety Notice Hardware Pack Assembly Instruction Parts List Warranty Ordering Parts Model NS-11043E Retain This Manual for Reference 180720 OWNER'S MANUAL ® IMPEX INC. 2801 S. Towne Ave, Pomona, CA 91766 Tel: (800) 999-8899 Fax: (626) 961-9966 www.marcypro.com support@impex-fitness.com...
-
Page 2: Table Of Contents
ORDERING PARTS..................….. BEFORE YOU BEGIN ® Thank you for selecting the MARCY Elliptical-Exerciser NS-11043E by IMPEX INC. For your safety and benefit, read this manual carefully before using the bike. As a manufacturer, we are committed to provide you complete customer satisfaction. If you have any questions, or find there are missing or damaged parts, we guarantee you complete satisfaction through direct assistance from our factory. -
Page 3: Important Safety Notices
BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES RESPONSIBILITY PERSONAL INJURY PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT. -
Page 4: Warning Label Placement
WARNING LABEL PLACEMENT The Warning Labels shown here has been placed on the Rear Stabilizer. If the labels are missing or illegible, please call customer service at 1-800-999-8899 for replacement. Apply the labels in location shown. © IMPEX INC. www.marcypro.com... -
Page 5: Hardware Pack
HARDWARE PACK NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size. © IMPEX INC. www.marcypro.com... - Page 6 COMPONENTS FOR ASSEMBLY 1. Remove all components from carton. 2. Inspect each component and check with below component list. 3. Please contact customer service if damaged or missing component occurred. © IMPEX INC. www.marcypro.com...
-
Page 7: Assembly Instructions
B.) Attach the Rear Stabilizer (#5) to the Main Frame (#1). Secure it with two M8 x 2 ¾” Carriage Bolts (#12), two Ø ⅜” x Ø ¾” Curved Washers (#23), and two Domed Nuts (#24). © IMPEX INC. www.marcypro.com... - Page 8 B.) Insert the Upper Tension Cable (#38) through the opening on Front Post to the bottom of Front Post. C.) Plug the Tension Knob (#38) to the opening. Secure the Tension Knob to Front Post with the M5 x 2 ⅛” Tension Knob Phillips Screw (#43) and the Ø ¾” Curved Washer (#44). © IMPEX INC. www.marcypro.com...
- Page 9 E.) Drop down the Upper Tension Cable so the fitting sits firmly on top of the bracket. F.) Secure the Front Post to the Main Frame with four M8 x ¾” Allen Bolt (#13), four Ø ⅝” Lock Washers (#22), and four Ø ⅜” x Ø ¾” Curved Washers (#23). © IMPEX INC. www.marcypro.com...
- Page 10 (#31). Cover the M10 Hex Bolt, and M10 Nuts with three Large Cover Caps (#27). D.) Repeat A, B, and C to install Right Stride Tube (#7) and Right Pedal Support (#41) on the right side. © IMPEX INC. www.marcypro.com...
- Page 11 Bolts (#16), two Ø ⅜” x Ø ⅝” Flat Washers (#20), and two M8 Aircraft Nuts (#25). C.) Repeat A and B to install Right Stride Handle (#32) and Right Pedal (#10) to the right side. © IMPEX INC. www.marcypro.com...
- Page 12 Connect the two ends of upper Computer Pulse Sensor Wire to Computer. C.) Remove the two M5 x ⅜” Phillips Screws (#17) from Computer (#11). D.) Secure the Computer (#11) to the computer bracket with the two Phillips Screws (#17). © IMPEX INC. www.marcypro.com...
-
Page 13: Exploded Diagram
EXPLODED DIAGRAM © IMPEX INC. www.marcypro.com... -
Page 14: Parts List
Left Connect Shaft Small Cover Cap Right Stride Handle Lower Tension Cable Handle Pulse Sensor Wire Upper Computer Wire Lower Computer Wire Right Connect Shaft Upper Tension Cable/Tension Knob Computer Pulse Sensor Wire Left Pedal Support © IMPEX INC. www.marcypro.com... -
Page 15: Care, Maintenance And Storage
1. Use the Tension Knob on Front Post to adjust the exercising resistance. 2. The Bike has a pair of roller wheels on Front Stabilizer. To move, carefully hold and tilt the Handle toward to front and then roll. COMPUTER © IMPEX INC. www.marcypro.com... -
Page 16: Exercise Guidelines
10. When the batteries are removed, all the functional values will reset to zero. Note: Please note all values on this computer are approximate and they are for comparison purpose only. Do not use these values for any medical or rehabilitation purpose. EXERCISE GUIDELINES © IMPEX INC. www.marcypro.com... - Page 17 The rate of work should be sufficient to raise your heartbeat into the target zone shown on the graph below. This stage should last for a minimum of 12 minutes though most people start at about 15-20 minutes 3. The Cool Down Phase © IMPEX INC. www.marcypro.com...
- Page 18 The important factor here is the amount of effort you put in. The harder and longer you work the more calories you will burn. Effectively this is the same as if you were training to improve your fitness, the difference is the goal. ® IMPEX INC. © IMPEX INC. www.marcypro.com...
-
Page 19: Warranty
