Page 1: Table Of Contents
IM10146 MARQUETTE ® AUTO-DARKENING HELMET November, 2012 TABLE OF CONTENTS Page SAFETY WARNINGS – READ BEFORE USING HELMET INFORMATION, SPECIFICATIONS OPERATING INSTRUCTIONS CARTRIDGE OPERATIONS/FEATURES SHADE GUIDE SETTINGS HELMET CARE AND MAINTENANCE TROUBLE SHOOTING PARTS LISTS, WARRANTY INFORMATION OPERATORʼS MANUAL 2345 Murphy Blvd. Gainesville, GA 30504 TEL: 866-236-0044... -
Page 2: Safety Warnings - Read Before Using
SAFETY WARNINGS – READ BEFORE USING WARNING ARC Rays can injure eyes and burn skin • Before welding, always inspect helmet and filter lens to be sure they are fitted properly, in good condition and not damaged. • Check to see that the clear lens is clean and securely attached to the helmet. •... -
Page 3: Helmet Information, Specifications

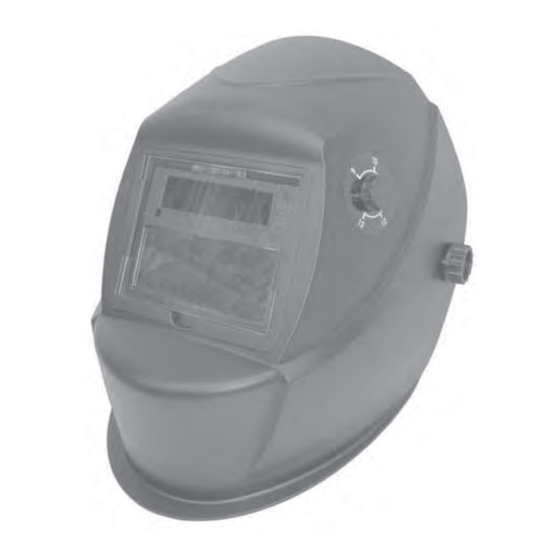

HELMET INFORMATION This Auto-Darkening Welding Helmet will automatically change from a light state (shade 4) to a dark state (Shade 9-13) when arc welding starts. The filter automatically returns to a light state when the arc stops. Shade control adjustments can be made while welding. Match your welding application to the shade indicated on the shade chart. -
Page 4: Operating Instructions
OPERATING INSTRUCTIONS Headgear Adjustment CROWN ADJUSTMENT TILT ADJUSTMENT TILT SHELL LEVER RATCHET HEADGEAR KNOB FORE/AFT ADJUSTMENT Head Size Adjustment: Headband tightness is adjusted by pushing in the ratchet knob and turning to adjust to desired comfort level. This knob is located at the back of the helmet. HEAD GEAR CROWN ADJUSTMENT is made by adjusting crown strap for vertical placement on the head and snapping the pin into the hole to lock securely in place. -
Page 5: Shade Guide Settings
ALWAYS TEST TO BE SURE THE ADF CARTRIDGE IS CHARGED BEFORE WELDING. The helmet can be placed in sunlight to charge. Do not store the helmet in a dark cabinet or other storage area for long periods. While welding, the arc also charges the ADF cartridge. SHADE GUIDE SETTINGS GUIDE FOR SHADE NUMBERS SUGGESTED ( 1 ) -
Page 6: Helmet Care And Maintenance
HELMET CARE AND MAINTENANCE Replacing Front Cover Lens: Replace the front cover lens if it is damaged – cracked, soiled or pitted. Place your finger or thumb into recess (C) at the bottom edge of the cover lens and flex the lens upwards until it releases from the edges marked A and B. -
Page 7: Trouble Shooting
TROUBLE SHOOTING GUIDE Test your shade cartridge prior to welding by directing the front of the car- tridge toward a bright source of light, then using your fingers rapidly cover and uncover the sensors. The cartridge should darken momentarily as the sensor is exposed. -
Page 8: Parts Lists, Warranty Information
PARTS LIST ITEM DESCRIPTION PART No. INSIDE AND OUTSIDE COVER LENS KP3323-1 HEADGEAR ASSEMBLY KP3324-1 WARRANTY INFORMATION WARRANTY INFORMATION: These helmets are warranted for a period of one year. Please contact us at 1 (866) 236-0044 for any service or warranty questions. SPATTER DAMAGE IS NOT COVERED BY WARRANTY: Do not use this product without the correct protective clear cover lenses installed properly on both sides of the Auto-Darkening Filter cartridge (ADF).
