DESCRIPTION
The EU-F-8z room regulator is intended to be used with external
controllers. It should be installed in heating zones. The regulator sends
current temperature and humidity readings from a given zone to the
external controller. Based on the data, the external controller manages the
thermostatic valves (opening them when the temperature is too low and
closing them when the pre-set temperature has been reached).
Current temperature is displayed on the main screen. In order to display
current humidity value, press the Menu button
Controller equipment:
• built-in temperature sensor
• air humidity sensor
• intended to be mounted in a frame
• front panel made of glass
The regulator is intended to be mounted in a frame. It fits in the following
frames:
Ospel - Sonata
Berker - S.1, B.1, B.3, B.7
Jung - AS, A500, A PLUS, A CREATION
Gira- STANDARD 55, E2, EVENT, ESPRIT, PROFIL55, E22
Kopp - ALASKA
Elko - RS16, PLUS
HOW TO INSTALL
The regulator should be installed by a qualified person.
WARNING
• Risk of fatal electric shock from touching live connections.
Before working on the controller switch off the power
supply and prevent it from being accidentally switched on.
• Incorrect connection of wires may damage the regulator!

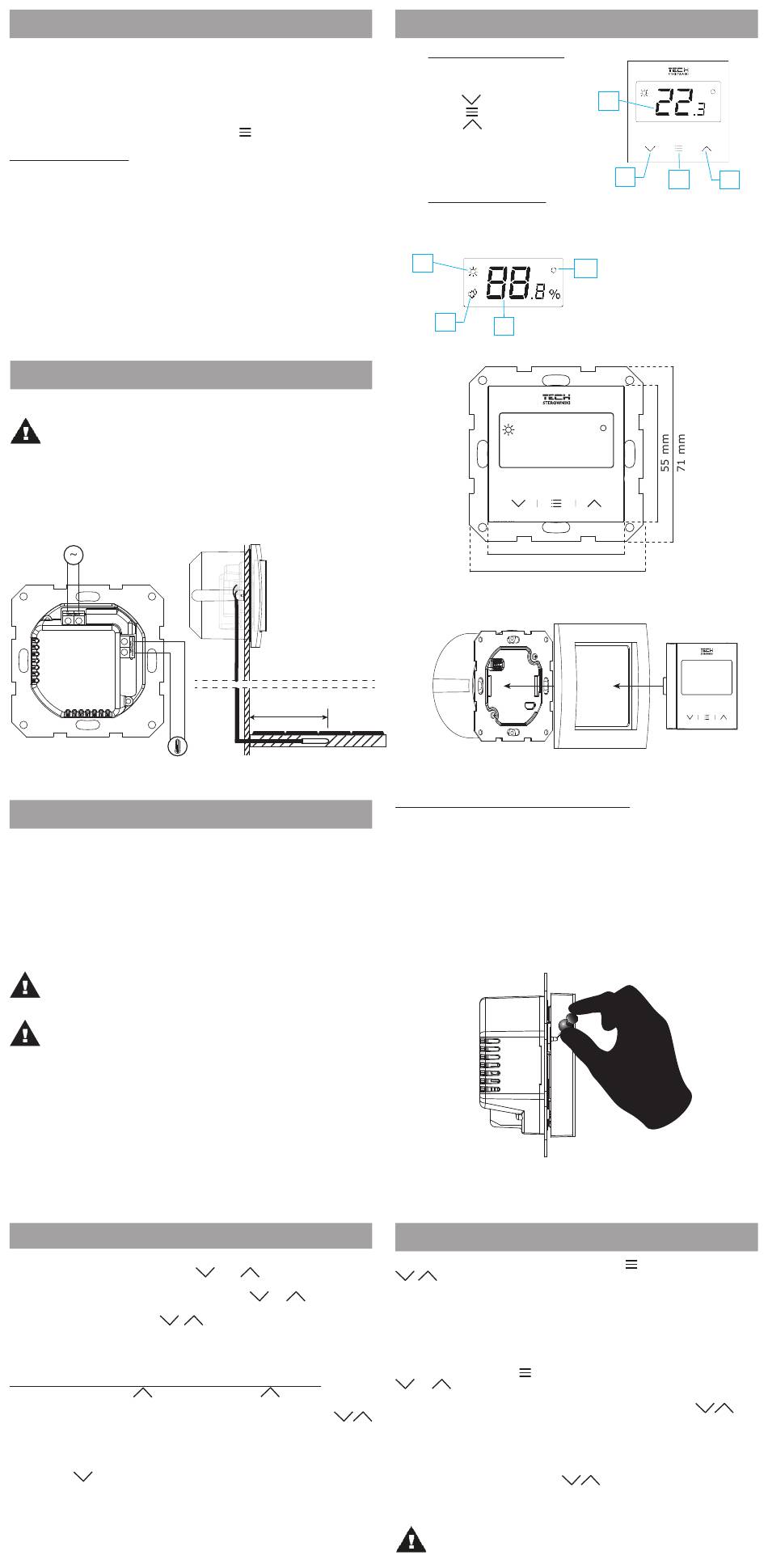

The diagram below illustrate how particular the regulator should be
mounted:
N L
HOW TO REGISTER A REGULATOR
The room regulator must be registered in a zone.
In order to do it, go to the external controller menu and select Zones
and Registration. Next, in the menu of the room regulator select the rEg
function and press briefly the registration button on the right side of the
regulator housing.
If the registration has been successful, the external controller display will
show a message to confirm and SCs will be displayed on the regulator
screen. Err displayed on the screen means that an error occurred during
the registration process.
NOTE
Only one room regulator may be assigned to each zone.
NOTE
In zone controllers, the room regulator may serve as a room
sensor or a floor sensor. In order to register the device as a floor
sensor, press the communication button on the regulator twice.
HOW TO CHANGE PRE-SET TEMPERATURE
The pre-set zone temperature may be adjusted directly from the EU-F-
8z room regulator using the buttons
During controller inactivity, the main screen displays current zone
temperature. After pressing one of the buttons
temperature is replaced with the pre-set temperature (the digits are
flashing). Using the buttons
temperature value. About 3 seconds after setting the desired value, the
display will show a screen enabling the user to define how long the new
setting should apply.
Time settings may be adjusted with the use of buttons:
- permanently – press
pre-set value will apply all the time regardless of schedule settings);
- for a specified number of hours – press one of the buttons
- until the desired number of hours appears on the screen e.g. 01h (the
pre-set value will apply for the specified period of time; after that the
weekly schedule will apply);
- if the temperature value defined in the weekly schedule settings should
apply, press until the screen displays OFF.
When a sun icon appears next to the temperature value, it means that
the pre-set room temperature has been reached and heating has been
disabled. If the sun icon is flashing, the room is being heated and the
pre-set temperature hasn't been reached yet.
(in the middle).
100cm
and .
or
the user may adjust the pre-set
until Con appears on the
HOW TO USE THE CONTROLLER
• REGULATOR DESCRIPTION
1. Display - current room
temperature/humidity
2. Button
3. Button
4. Button
• DISPLAY DESCRIPTION
Current temperature is displayed on the screen. Use the Menu button (in
the middle) to display current humidity.
1
2
How to install particular elements:
The following rules must be kept in mind:
- Once registered, the regulator cannot be unregistered, but only
disabled by selecting OFF in the submenu of a given zone in the external
controller.
- If the user attempts to assign a regulator to the zone to which another
regulator has already been assigned, the first regulator becomes
unregistered and it is replaced by the other one.
- If the user attempts to assign a regulator which has already been
assigned to a different zone, the regulator is unregistered from the first
zone and registered in the new one.
In order to enter the menu, press and hold
to switch between functions.
, the current
1. Cal - this function enables the user to check the sensor calibration
value. After selecting this option, the screen flashes for 3 seconds. Next,
it displays calibration setting.
2. Loc - this function enables the user to activate the key lock. After
selecting this function, the screen flashes for 3 seconds. Next, the user
is asked if they want to activate the key lock (yes/no). Select the answer
using one of the buttons
or .
screen (the
When the lock is active, the keys are locked automatically after 10
seconds of inactivity. To unlock, press and hold the buttons
displayed on the screen means that the keys have been unlocked.
3. rEg - this function enables the user to register the regulator in a zone.
4. Def - this function enables the user to restore factory settings. After
selecting this function, the screen flashes for 3 seconds. Next, the user
is asked if they want to restore factory settings (yes/no). Select the
answer using one of the buttons
5. Ret - after selecting this option, the screen flashes for 3 seconds and
exits the menu.
NOTE
To display the program version number, press and hold the button
on the right side of the controller housing.
1
2
1. Sun icon
4
2. Humidity icon
3. Current humidity
4. Control light
3
22
.3
55 mm
71 mm
MENU FUNCTIONS
. In order to confirm, wait 3 seconds or press
. Wait 3 seconds to confirm.
3 4
. Next, use the buttons
. Ulc
