Summary of Contents for TECH EU-290 v1

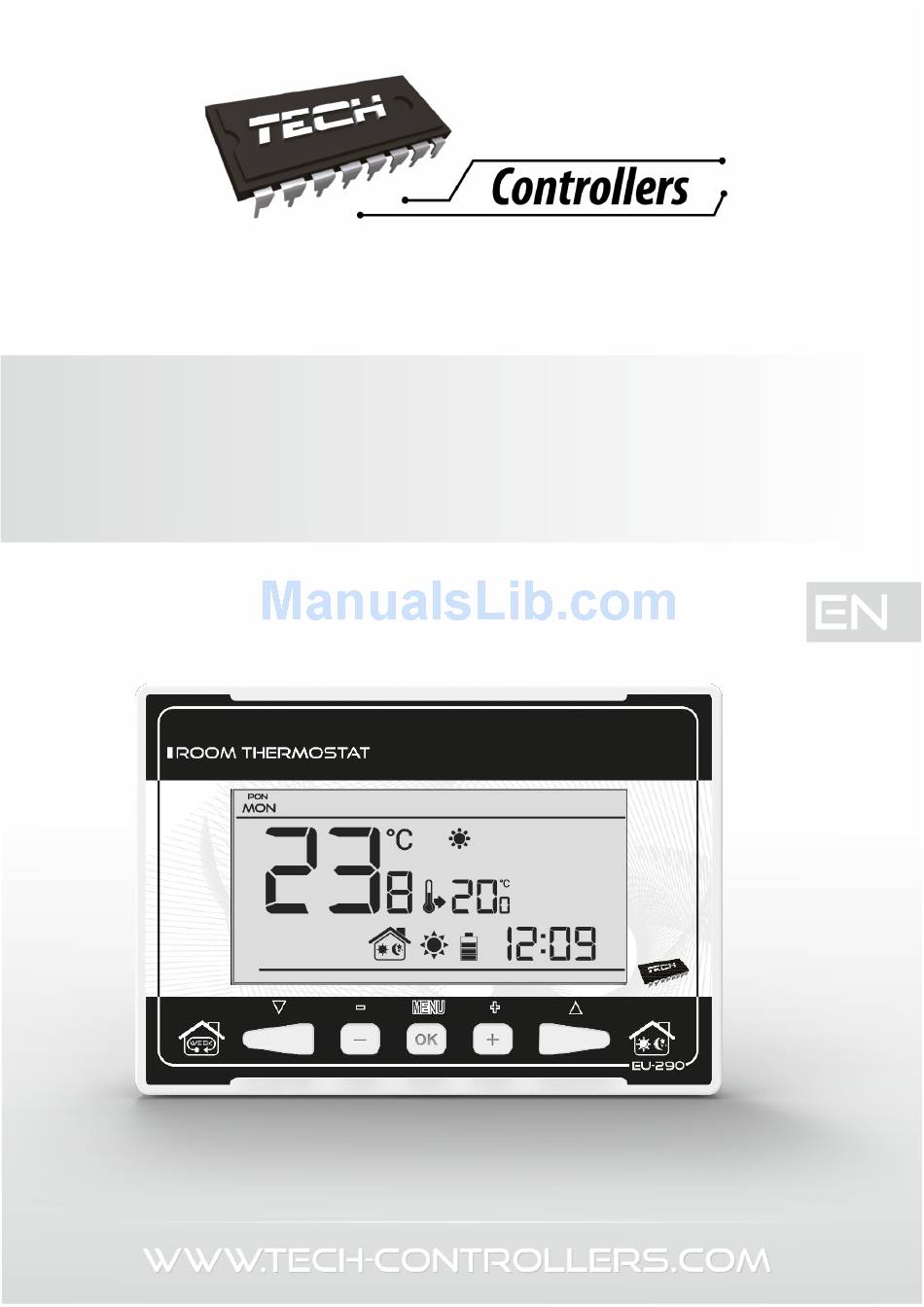

  • Page 1 EU-290 user’s manual User’s manual EU-290...
  • Page 2 TECH Table of contents Safety ........................3 Description of the device ..................4 III. Installation ......................4 III.a) Connection diagrams (v1 and v3 versions) .............. 5 Receiver for wireless controller ................7 External temperature sensor ..................8 First start-up ......................9 VII.

  • Page 3: I. Safety

    EU-290 user’s manual Safety Before using the device for the first time the user should read the following regulations carefully. Not obeying the rules included in this manual may lead to personal injuries or controller damage. The user’s manual should be stored in a safe place for further reference. In order to avoid accidents and errors it should be ensured that every person using the device has familiarized themselves with the principle of operation as well as security functions of the controller.

  • Page 4: Ii. Description Of The Device

    TECH Description of the device EU-290 room regulator is intended for controlling the heating device (e.g. gas, oil or electric furnace or the CH boiler controller). Its main task is to maintain the pre-set temperature in the flat by sending a signal to the heating device (contact opening) when the desired temperature is reached.

  • Page 5: Iii.a) Connection Diagrams (V1 And V3 Versions)

    EU-290 user’s manual EU-290 controller may be installed as a panel mountable on the wall. III.a) Connection diagrams (v1 and v3 versions) The room regulator should be connected to the heating device via a two-core cable as illustrated in the diagrams below: 1 Diagram: EU-290 regulator connected directly to the heating device.
  • Page 6 TECH 3 Diagram: EU-290 regulator connected to the heating device with load up to 1A. 4 Diagram: EU-290 room regulator connected to the heating device with load above 1A. 5 Diagram: EU-290 room regulator connected to a three-phase heating device.

  • Page 7: Iv. Receiver For Wireless Controller

    EU-290 user’s manual In the case of wireless connection, the diagrams presented above should be used – the two-core communication cable should be connected to appropriate sockets in the receiver. Receiver for wireless controller EU-290v2 regulator communicates with the heating device (or the CH boiler controller) via radio signal sent to the receiver.

  • Page 8: V. External Temperature Sensor

    TECH External temperature sensor EU-290v2 room regulator may optionally be equipped with an external temperature sensor. The sensor should be mounted in a shaded place so that it is not affected by the weather conditions. The current temperature value will be sent to the room regulator every few minutes and it will be displayed on the main screen.

  • Page 9: Vi. First Start-Up

    EU-290 user’s manual First start-up EU-290 v1, EU-290 v3: In order for the controller to operate correctly, the user must follow these steps when starting the device for the first time: 1. Remove the front cover of the controller and insert the batteries.

  • Page 10: V.b) Operation Modes

    TECH V.b) Operation modes The user has three operation modes to choose from:  Day/night mode In this mode the pre-set temperature value depends on the current time of the day. The user may set different temperature values for the daytime and nighttime (comfort temperature and economical temperature) as well as define the exact time of entering day mode and night mode.
  • Page 11 EU-290 user’s manual  Manual mode In this mode the pre-set temperature is adjusted manually from the main screen view with the use of these buttons: + or - . Manual mode is activated when one of these buttons is pressed. When the manual mode is activated, the previous operation mode enters ‘sleep mode’...

  • Page 12: Vii.b) Main Screen View And Description

    TECH VII.b) Main screen view and description The user operates the device using buttons. While one parameter is being edited, the remaining icons are not displayed. 1. Display - pressing this button in the main screen view activates weekly control mode. After entering the menu, this button is used to move from one option to another.
  • Page 13 EU-290 user’s manual 1. Current operation mode: a. weekly b. manual c. day/night 2. Current temperature of the room 3. Parameters icons (see: table below) 4. Icon indicating economical temperature (according to weekly control or day/night settings) 5. Icon indicating comfort temperature (according to weekly control or day/night settings) 6.

  • Page 14: Vii.c) Controller Functions

    TECH Parameters icons: Time settings Weekly control settings Day from… Comfort temperature Night from… Economical temperature Optimum start / heating- cooling mode selection (in Hysteresis service menu) Enter service menu / zone Temperature sensor calibration selection (EU-290v4) Channel selection VII.c) Controller functions The user navigates in the menu structure using , + , - and MENU.

  • Page 15: Vii.c.2) Day Of The Week

    EU-290 user’s manual VII.c.2) Day of the week After entering the main menu, all icons which are not connected with the parameter which is being edited are not displayed. The first parameter is day of the week. Press + or - until the current day of the week appears on the screen.

  • Page 16: Vii.c.7) Service Menu

    TECH Room temperature - Room temperature - OPTIMUM START switched off: OPTIMUM START switched on: – pre-programmed change from economical temperature to comfort temperature Activating this function means that at the time of pre-programmed change of the pre-set temperature from comfort to economical or the other way round, the current room temperature is close to the desired value.
  • Page 17 EU-290 user’s manual Heating/cooling mode This function enables the user to select the room regulator operation mode: - controlling the cooling system - controlling the heating system Press + or - to select desired type of system. Press to confirm and move on to edit another parameter in the service menu or press and hold MENU to confirm to return to the main screen view.

  • Page 18: Vii.c.8) Weekly Control

    TECH VII.c.8) Weekly control This function is used to change the current weekly program and edit the weekly programs settings.  How to change the current weekly program When the weekly control mode is activated (see: V.b Operation modes), the current program is activated.
  • Page 19 EU-290 user’s manual Step 2 – Select days of the week If the user wants to edit programs 1÷3, there is no possibility of selecting particular days of the week as the setting applies to each day. If the user wants to edit programs 4÷6, it is possible to edit the settings for weekdays and the weekend separately.

  • Page 20: Vii.c.9) Pre-Set Comfort Temperature

    TECH The following screenshot presents daily settings of program no. 7 for Monday 24⁰⁰-01⁵⁹- economical temperature 02⁰⁰-06⁵⁹- comfort temperature 07⁰⁰-14⁵⁹- economical temperature 15⁰⁰-21⁵⁹- comfort temperature 22⁰⁰-00⁵⁹- economical temperature NOTE When the user finishes the editing process by pressing MENU button, the controller returns to the main screen view and this program is selected as the current program.

  • Page 21: Vii.c.12) Temperature Sensor Calibration

    EU-290 user’s manual VII.c.12) Temperature sensor calibration It is performed when mounting the regulator or after it has been used for a long time, if the room temperature measured by the internal sensor differs from the actual temperature. Calibration setting range is from -10°C to +10°C with the accuracy of 0,1°C.
  • Page 22 TECH Declaration of conformity 190/2015 Hereby, we declare under our sole responsibility that EU-290 230V, 50Hz thermoregulator manufactured by TECH, headquartered in Wieprz (34-122), Biała Droga 31, is compliant with:  the regulation by the Ministry of Economy, Labour and Social Policy (Journal of Laws No.
  • Page 23 EU-290 user’s manual...
  • Page 24 TECH...
