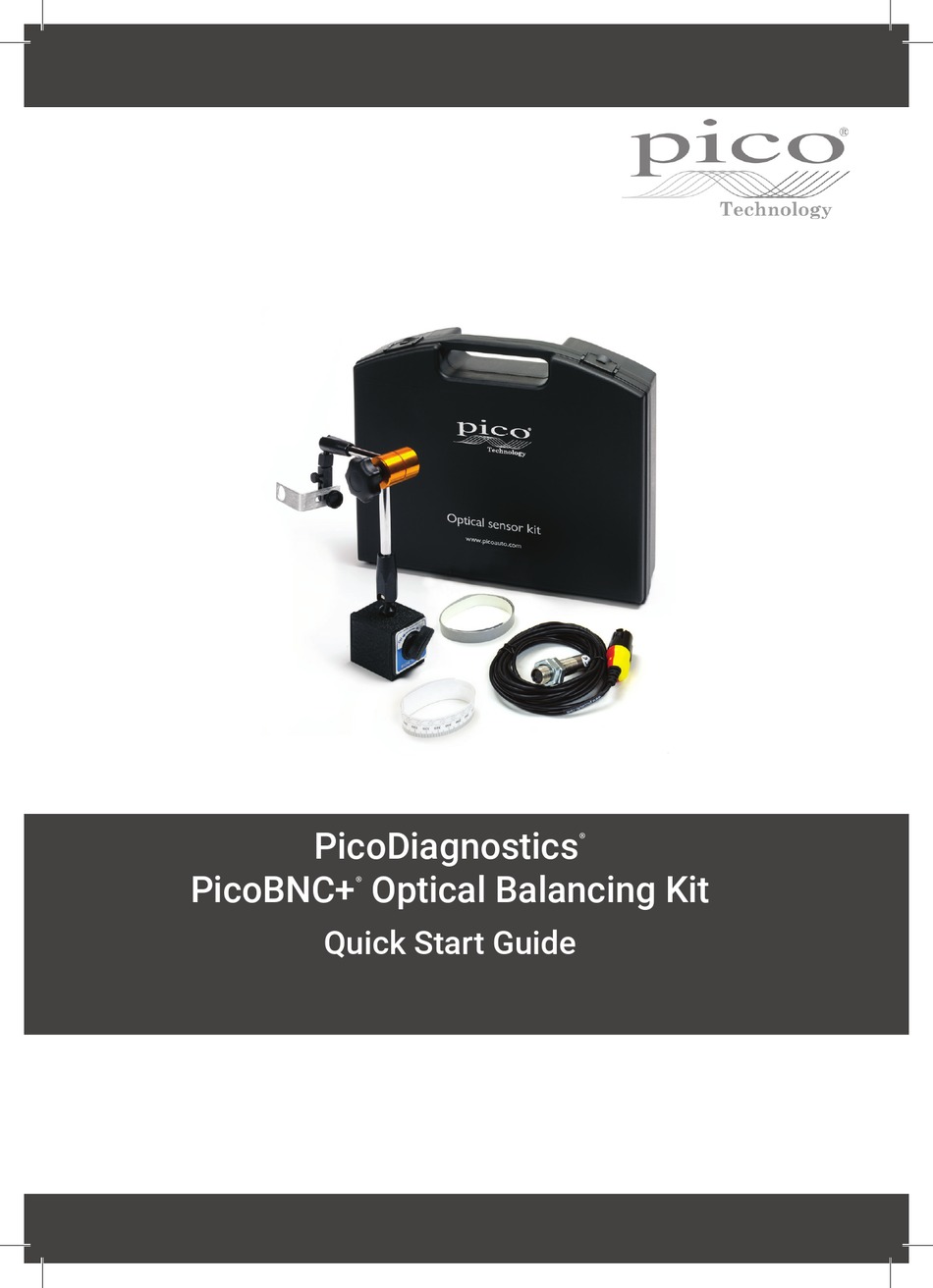

- Page 1 PicoDiagnostics ® PicoBNC+ Optical Balancing Kit ® Quick Start Guide...
- Page 2 PicoDiagnostics PicoBNC+ Optical balancing kit Pico Technology 1. Introduction Thank you for buying the PicoDiagnostics Optical Balancing Kit. Used with a PicoScope oscilloscope, it allows the rebalancing of vehicle propshafts to eliminate vibrations. 2. Safety warnings The product has been designed and tested in accordance with the harmonized...
- Page 3 Pico Technology Quick Start Guide 3. Connection Power and data connection to scope is made by supplied cable ended with PicoBNC+ connector. 4. Magnetic base mounting instructions 1. Verify that the mounting surface is flat and free from contamination. 2. Position the unit in the desired location.
- Page 4 Germany Cambridgeshire United States PE19 8YP United Kingdom Tel: +44 (0) 1480 396395 Tel: +1 800 591 2796 Tel: +49 (0) 5131 907 6290 Email: support@picotech.com Email: support@picotech.com Email: info.de@picotech.com DO348-2 Copyright © 2018-2022 Pico Technology Ltd. All rights reserved.
