Summary of Contents for Nibe Contura C 880

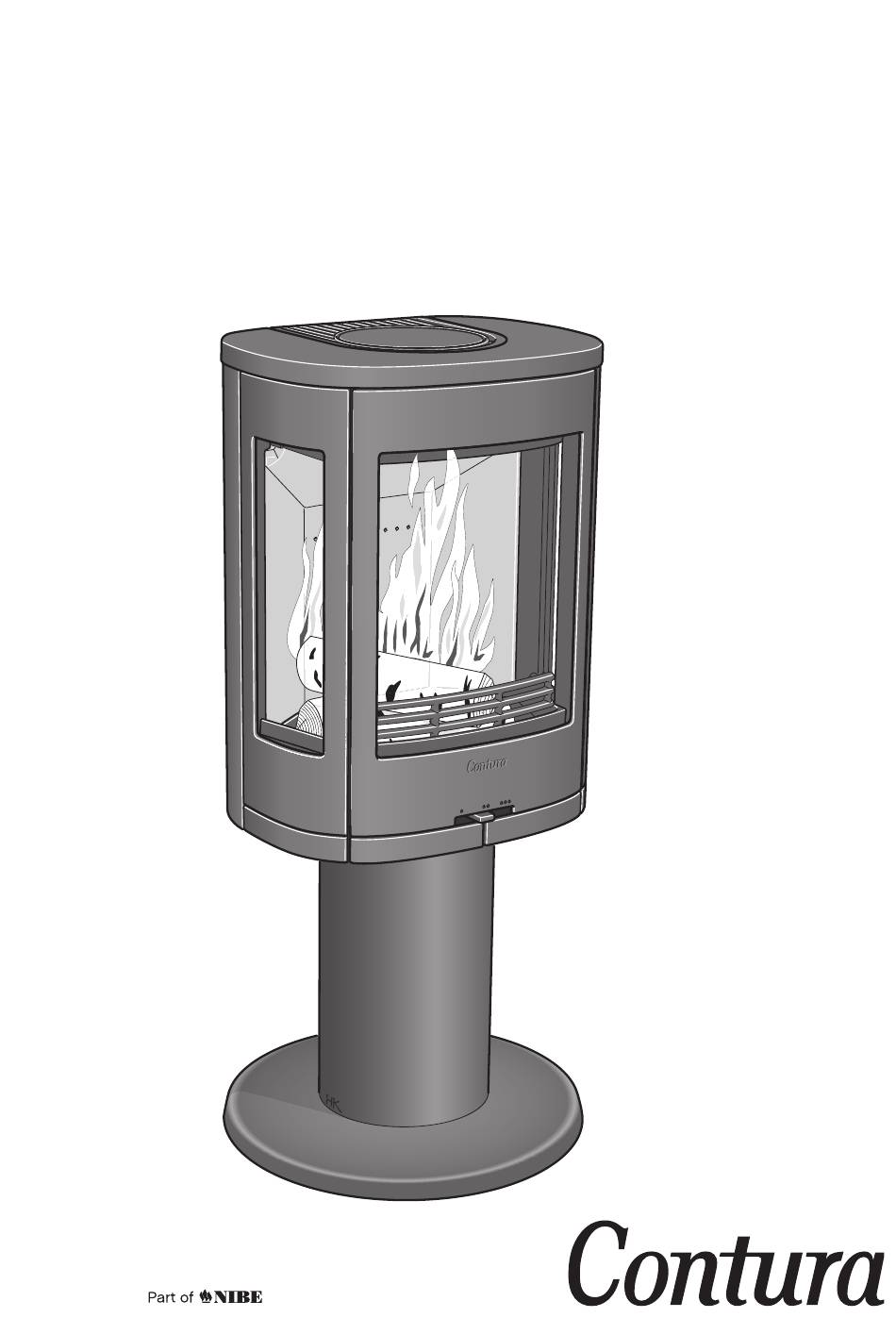

- Page 1 Installation Instructions C 880 www.contura.eu...
- Page 2 Emissions of hazardous substances Approved Nominal output 4 kW Efficiency Flue gas temperature in connector at nominal 320°C output The undersigned is responsible for the manufacture and conformity with the declared performance. Niklas Gunnarsson, Business area manager NIBE STOVES Markaryd, 1st July 2013...
-
Page 3: Table Of Contents
CONTENTS A warm welcome to Contura. A warm welcome to the Contura family. We hope you will get a great deal of pleasure from your new stove. As a new owner of a Contura stove you have secured a product with timeless design and long service life. -
Page 4: Technical Details
FACTS Technical details Important to remember! Installation by authorised Structural support Output 3-6 kW Nominal output 4 kW technician Check that the wood joists are strong Efficiency up to 82% enough to bear the weight of the stove and This manual contains instructions about chimney. -
Page 5: Prior To Installation
PRIOR TO INSTALLATION Prior to installation If the insert needs to be put down to be moved, loose components should be removed. This is described at the end of these installation instructions. 1 Fire bars 2 Grate disc 3 Fire bricks 4 Type plate 5 Hot air grate... -
Page 6: Connection To Chimney
CHIMNEY Connection to chimney • The stove meets the requirements for connecting to chimneys • A flue with sharp bends and horizontal routing reduces the dimensioned for 350°C flue gas temperature. draught in the chimney. Maximum horizontal flue is 1 m, on the condition that the vertical flue length is at least 5 m. -
Page 7: Supply Of Combustion Air/Option
SUPPLY AIR/ACCESSORY Supply of combustion air When a stove is installed in a room, the demand for air supply to the room increases. Air can be provided indirectly via a vent in the outer wall or via a duct from the outside that is connected to the connector on the underneath of the stove. -
Page 8: Installation Distances
INSTALLATION DISTANCES Installation distances C 880 The minimum distance in front of WHEN INSTALLING TURNTABLE (OPTION) the fol- the stove opening to combustible lowing installation distances do not apply. Combustible roof parts of the building or interior See the separate turntable installation instructions. decoration must be at least 1 m. -
Page 9: Installing The Top
ASSEMBLY Installing the top Final inspection of the installation It is extremely important that the installation is inspected by an authorised chimney sweep before the stove is used. Also read the ”Lighting instructions”, before lighting for the first time. -
Page 10: Removal
REMOVAL Removal How to remove the fire bricks Handle the vermiculite with care. Lift the smoke baffle with one hand whilst removing the sides. The side posts need not be removed when sweeping. Reinstall in reverse order. - Page 12 NIBE AB · Box 134 · 285 23 Markaryd · Sweden www.contura.eu Contura reserves the right to change dimensions and procedures described in these instructions at any time without 811240 IAV SE-EX C880-2 special notice. The current edition can be downloaded from 2015-04-20 www.contura.eu...
