Summary of Contents for Nibe Contura C 570

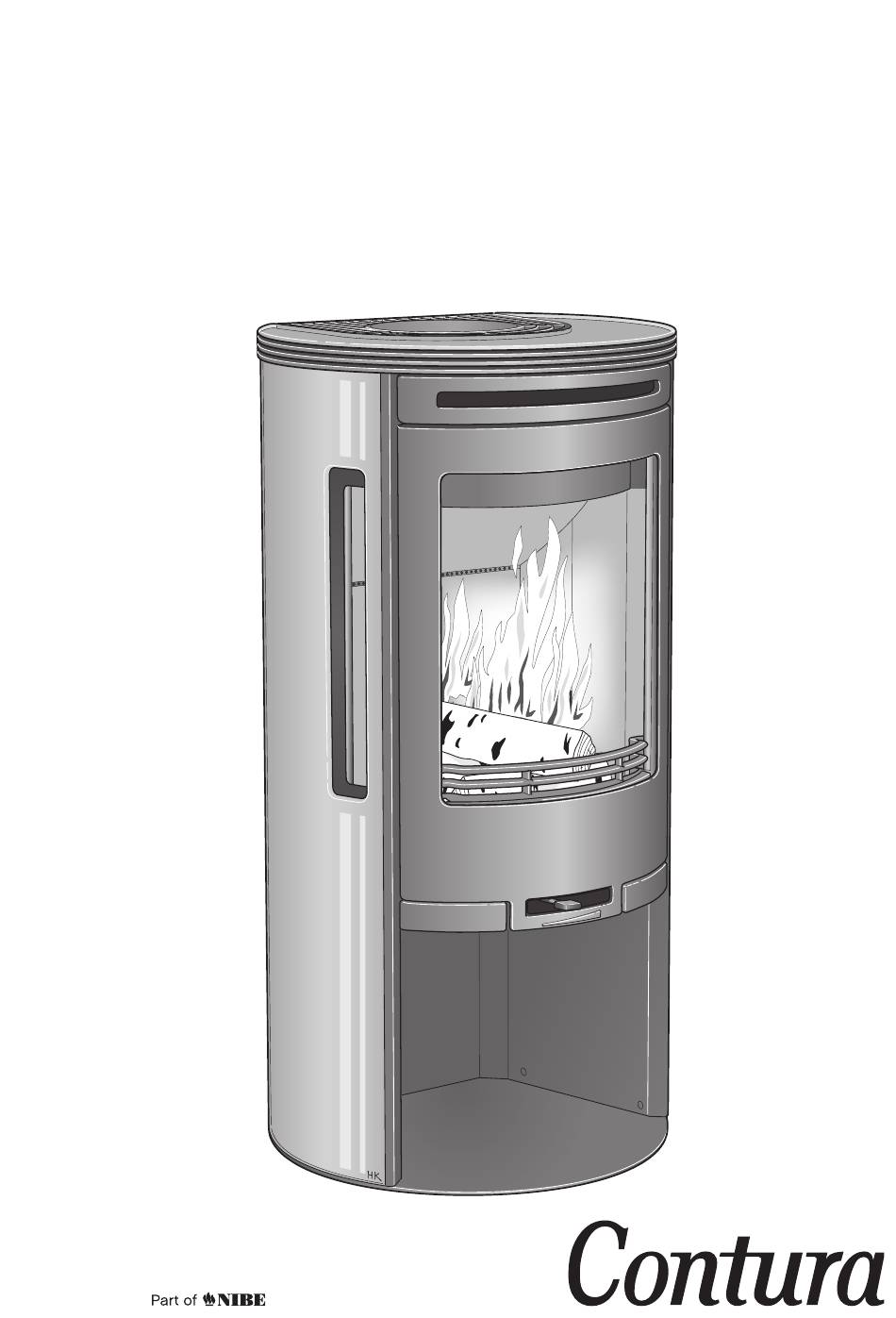

- Page 1 Installations- Installation instruction anvisning C 570 www.contura.eu...
- Page 2 Contura 570 is a Swan labelled stove. NIBE was the first stove manufacturer in Sweden to commit to Swan labelling their stoves. The Swan label is one aspect of our vision to be a company of the future, setting high quality standards...
- Page 3 CONTENTS A warm welcome to Contura A warm welcome to the Contura family. We hope you will get a great deal of pleasure from your new stove. As a new owner of a Contura stove, you have secured a product with timeless design and long service life. Contura also has a combustion process that is both environmentally friendly and efficient, for the best heat production.
- Page 4 FACTS Important to remember! Technical details Installation by authorised Structural support Effect 3-7kW Nominal effect 5 kW technician Check that the wood joists are strong Efficiency up to 79% enough to bear the weight of the stove and This manual contains instructions about chimney.
- Page 5 REMOVAL How to remove the heat deflector How to remove the hearth surround (Vermiculite) Handle the vermiculite with care. Lift the smoke baffle with one hand whilst removing the sides pieces. Reinstall in reverse order...
- Page 6 CHIMNEY Connection to chimney • The stove meets the requirements for connecting to chimneys • A flue with sharp bends and horizontal routing reduces the dimensioned for 350°C flue gas temperature. draught in the chimney. The maximum horizontal flue is 1 m, on the condition that the vertical flue length is at least 5 m.
- Page 7 SUPPLY AIR/ACCESSORY Supply of combustion air When a stove is installed in a room, the demand for air supply to the room increases. Air can be provided indirectly via a vent in the outer wall or via a duct from the outside that is connected to the connector on the underneath of the stove.
- Page 8 INSTALLATION DISTANCES Installation distances C 570 WHEN INSTALLING TURNTABLE (OPTION) the The minimum distance in front of the stove opening to combustible following installation distances do not apply. Combustible roof See the separate installation instructions for parts of the building or interior turntable.
- Page 9 ASSEMBLY Installing C 570 To facilitate the installation of the side glass, the two upper screws for the back panel must not be tightened before the side glass is installed. Installing rating plate Supplied rating plate positioned on underneath of heat deflector, or with fan option on the inside of the stove.
- Page 10 ASSEMBLY Clean all glass thoroughly prior to installation!
- Page 11 ASSEMBLY Coloured side down. The gasket must be on the inside of the glass. Final inspection of the installation It is extremely important that the installation is inspected by an authorised chimney sweep before the stove is used. Also read the ”Lighting instructions”, before lighting for the first time.
- Page 12 ASSEMBLY Installing base When installing the base, the knockout in the back panel must always be removed for the supply of convection air.
- Page 13 ASSEMBLY Installing drawer When installing the drawer, the knockout in the back panel must always be removed for the supply of convection air.
- Page 16 NIBE AB · Box 134 · SE-285 23 Markaryd · Sweden www.contura.eu Contura reserves the right to change colours, materials, dimensions and models at any time without special notice. 811107 IAV SE-EX C570 -3 Your dealer can give you the most up to date information.
