ScentDirect
KIT OVERVIEW
The list below references the parts provided when
assembling the HVAC Adapter onto a ScentDirect
system. The ScentDirect System and Cartridge are
packaged separately.

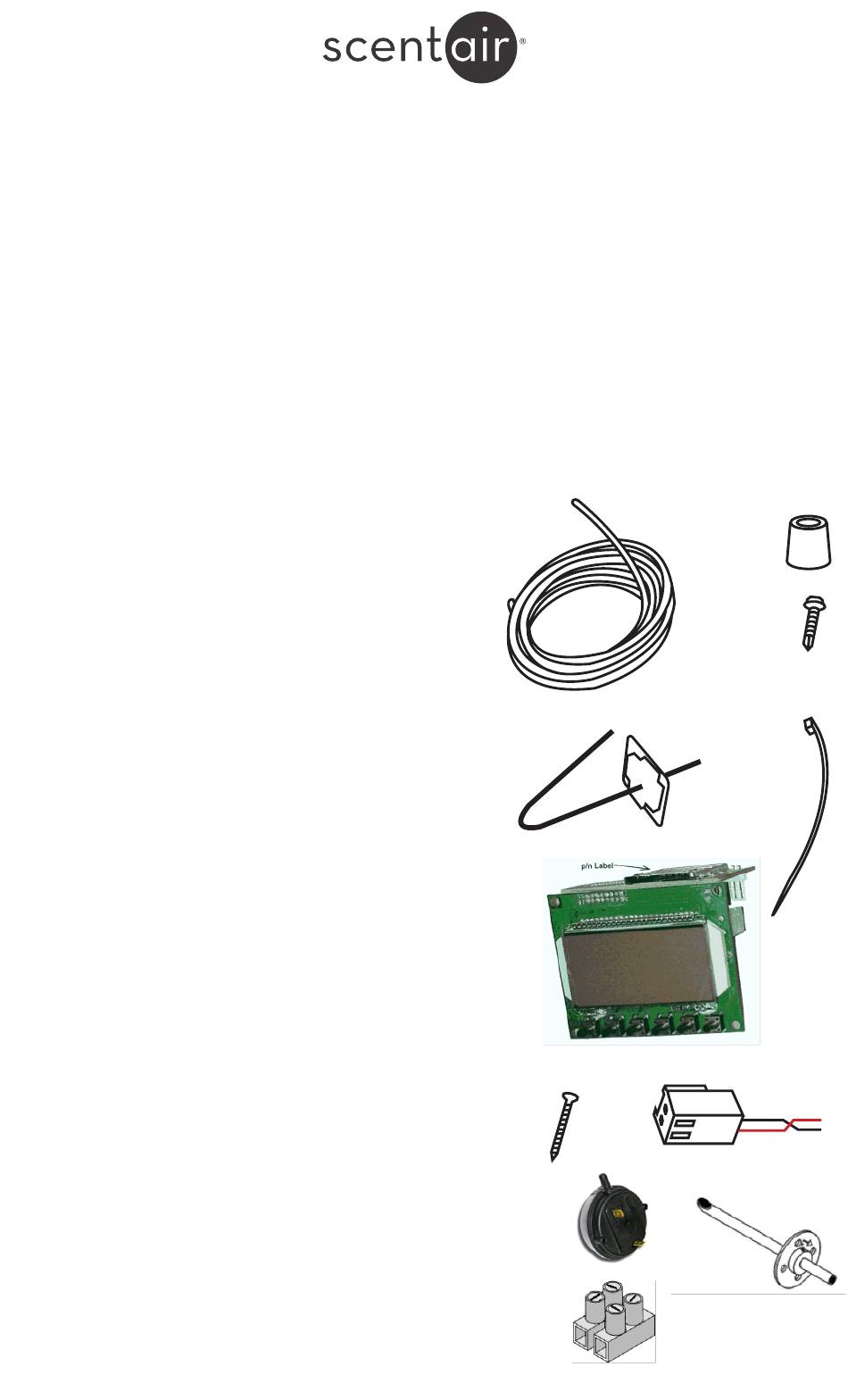

PARTS INCLUDED
1.
PVDF Tubing (6' x ¼" OD x .17" ID)
•
30200189 x 6 [both ends sealed]
2.
HVAC Adapter Cap
•
30400032
3.
4x Self Tapping Screws 12x1
•
30210304
4.
Duct Mount Assembly
5.
3 - Zip Tie
•
30217001
6.
Replacement 4004 control board with HVAC
programming
7.
Screw - 4-24 x ¾"
8.
Duct pressure sensor wired connector for PCB
9.
Duct Pressure sensor
10. Duct sensor probe [sheet metal screws not
shown]
11. Screw terminal connector
12. Clear soft plastic tubing for sensor
13. Jacketed cable for sensor - 25'
PART#-31600075 LIT-SDD4000-HVAC-S INSTALL REV.A
Pat. No. 8857735, 8881999
HVAC-S KIT
™
For: SDD4004
Installation Manual
1
4
6
7
9
11
2
3
5
8
10
REV. 7/15
Advertisement
Related Manuals for ScentAir ScentDirect HVAC-S
Summary of Contents for ScentAir ScentDirect HVAC-S
- Page 1 ScentDirect HVAC-S KIT ™ For: SDD4004 Installation Manual KIT OVERVIEW The list below references the parts provided when assembling the HVAC Adapter onto a ScentDirect system. The ScentDirect System and Cartridge are packaged separately. PARTS INCLUDED PVDF Tubing (6’ x ¼” OD x .17” ID) •...
-
Page 2: Operational Behavior
The power connector must be squeezed to release a latch, the other 2 can simply be pulled straight down while holding the board for support. Remove the 4 screws holding on the black faceplate from the old control panel with the screwdriver. Return the old control panel to ScentAir. PART#-31600075 LIT-SDD4000-HVAC-S INSTALL REV.A... - Page 3 Attach the new control panel from this kit (Part #6 marked HVAC) to the black faceplate with the 4 screws. (no wires are attached yet) Attach the Duct Sensor’s wired connector (Part #7) to the J11 connector on the new control panel near the battery.
-
Page 4: Clear Window
14. Align the PCB assembly with the machine and make the remaining electrical connections: (FIG.3) – The connections are NOT THE SAME as the original configuration. – Reconnect the large 2 pin connector, it will snap into place. – DO NOT reconnect the 2 pin connector from the machine fan. –... - Page 5 INSTALLATION PREPARATION Unpack the components for the installation. Leave the sealing tape on the output tubing in the box to keep debris out of the tube. Chose a mounting point for the SDD4004 unit near (or on) the HVAC duct to be used for fragrance.
- Page 6 12. Place cartridge into SDD4004 system and close the front cover. Attach the power supply and plug it into the top of the machine. PRESSURE SENSOR INSTALLATION The sensor must be installed upstream of the fragrance insertion point and at enough distance from registers so that sufficient air pressure will exist in the duct to actuate the switch.
- Page 7 Secure the probe to the duct with the provided #6 x 3/8” sheet metal screws. In a location close to the probe attach the pressure switch in a vertical orientation. Bend mounting bracket as needed to attain vertical positioning. Connect the pressure sensor to the duct probe with the clear ¼” ID x 3/8” OD tubing provided.
- Page 8 For further assistance please contact ScentAir Technical Services: North America: 1.704.504.2320 Europe: +33(0)5 62 57 63 20 Asia: +852 356 378 42 techservices@scentair.com...
