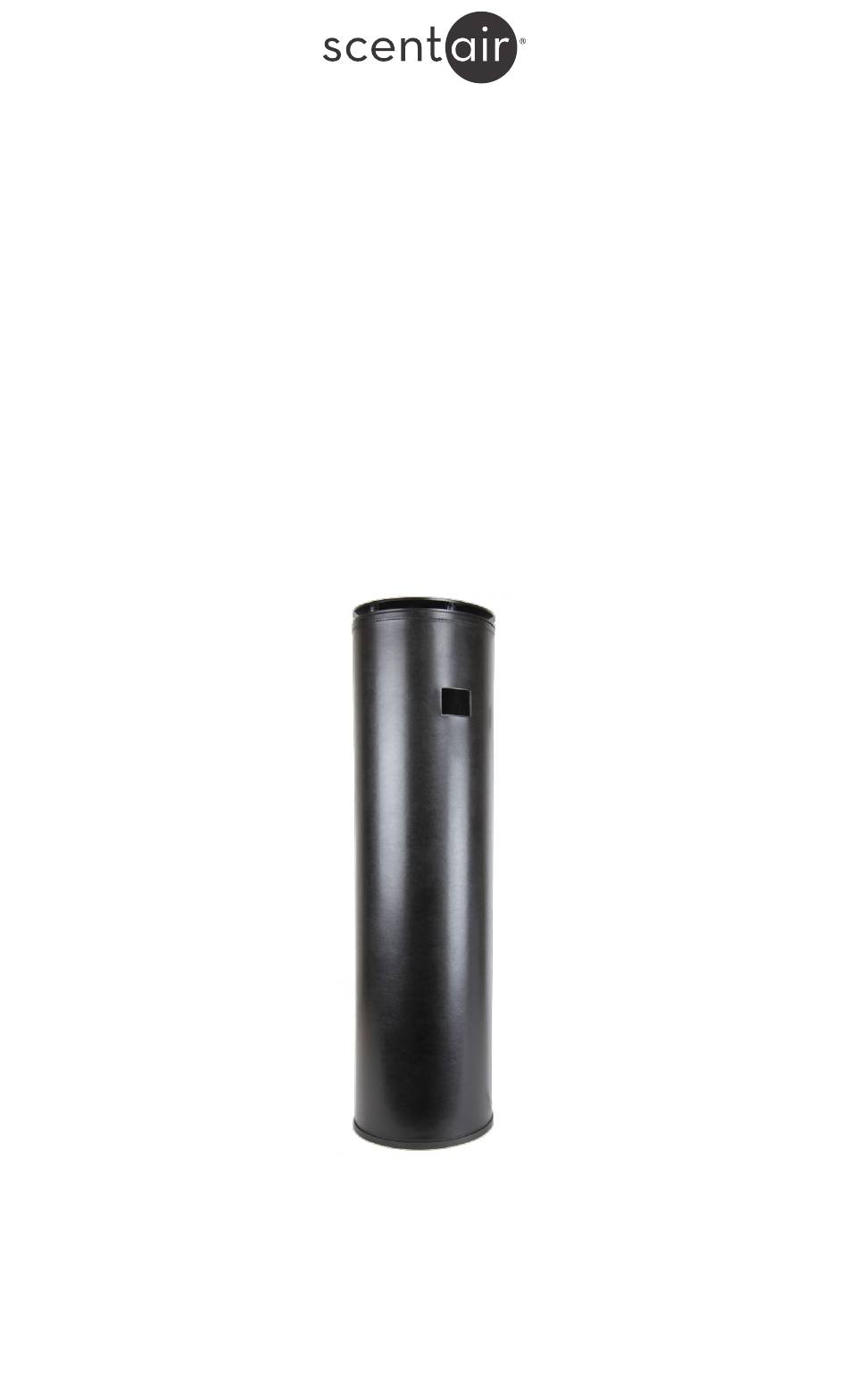

- Page 1 ScentDirect Tower ™ For: SDD4004 User’s Manual Patent Numbers: 8857735, 8881999...
-
Page 2: Table Of Contents

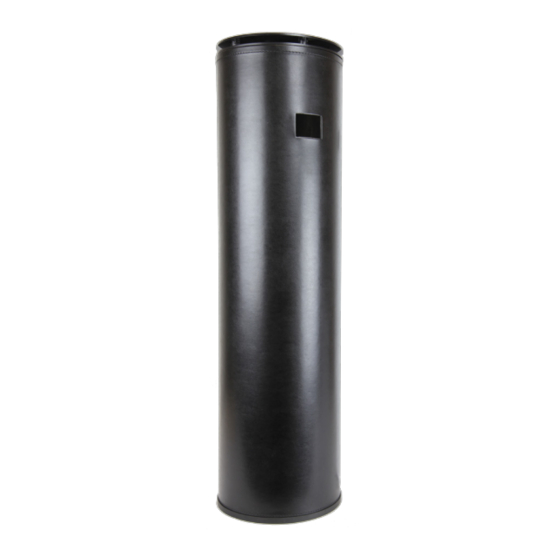

The ScentDirect Tower is wrapped in a high-quality polyurethane material surrounding a sturdy stainless steel frame. The ScentDirect Tower houses one ScentDirect system (sold separately) and is a great option when installation on wall, ceiling or track lighting isn’t possible and HVAC scent delivery is not available. -
Page 3: Included Parts
INCLUDED PARTS: The list of items below are included with the ScentDirect Tower. The ScentDirect System and Cartridge are sold and packaged separately. Tower Frame Tower Cap Black Extension Tube Cap Black Extension Tube... -
Page 4: Proper Placement
PROPER PLACEMENT Placement of the ScentDirect within a space is key to creating an effective scented environment. Always review the air flow characteristics of the property before starting an installation. Identify the location to be scented and locate the air supply vents near the area to be scented. Install the system between these two locations to ensure airflow will carry the fragrance to the desired location. -
Page 5: Preparation
PREPARATION Shipping Cap The ScentDirect System and cartridge will need to be Shipping Cap retrofitted to appropriately work inside of the Tower. Before starting, completely remove all items from their shipping boxes. Set the power supply to the side. The wire cover will not be used in this application. PARTS NEEDED: Fig.1: The ScentDirect cartridge will ship with white shipping caps installed to prevent spilling. -
Page 6: Getting Started
TOWER INSTALLATION PARTS NEEDED: • 1 - Tower Frame • 1 - Tower Cap • 1 - ScentDirect Prepared • 1 - Power Supply • 1 - Extension Tube INSTALLATION: Plug in the ScentDirect power supply to the outlet nearest to where you plan on placing the tower frame. -
Page 7: Troubleshooting
• Call technical services Fan doesn’t run • Call or email ScentAir Technical Service Display Revision • Press MENU four (4) times from the main screen, the words “Set”, “Fan” and “Speed” will be displayed along with the current Fan Speed. - Page 8 For further assistance please contact ScentAir: US & Canada: +1 704 504 2320 UK: +44 1628 601 650 France: +33 5 62 57 63 20 Hong Kong: +852 3563 5566 PRD-400 72024001-Rev.A...
