Kohler TERRAGON K-2933 Installation Instructions Manual

Enameled cast iron self-rimming and undercounter lavatory
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
BEFORE YOU BEGIN
NOTES
S
Use these instructions to install both self-rimming
and undercounter lavatories. Follow only the
instructions that apply to your installation.
S
Due to the nature of undercounter installations,
lavatories installed undercounter should be installed
by trained and experienced installers.
S
Prior to installation, unpack the new lavatory and
carefully inspect for damage. Return the lavatory to
its protective carton until you are ready to install it.
S
Do not use adhesives or adhesive sealants with any
undercounter installation.

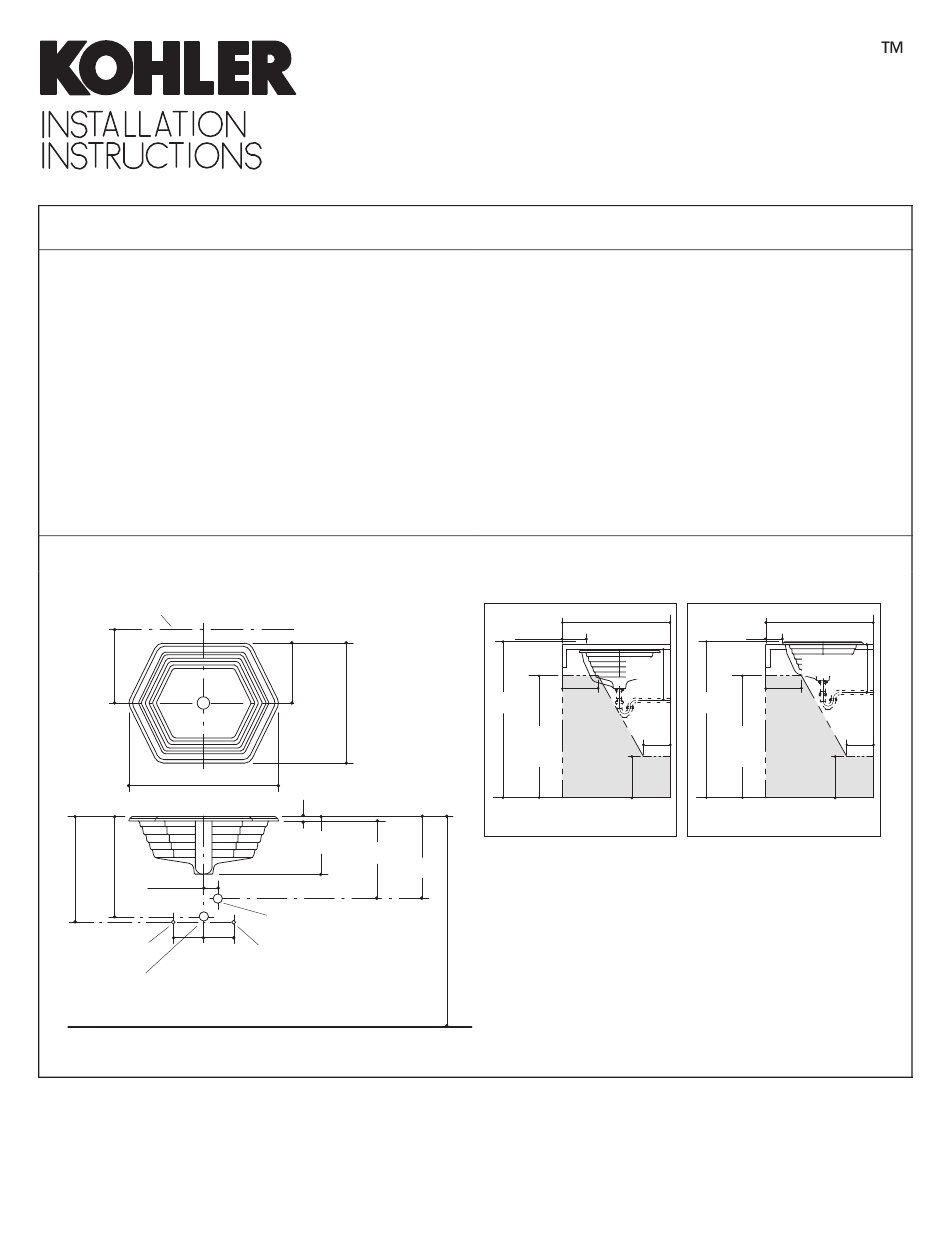

ROUGHING-IN DIMENSIONS
C
L OF FITTING**
9-3/4"
19-3/4"
(T)
(S)
1-1/2"
4"
4"
3/8" HOT
1-1/4" OUTLET
116
CA
114407-2-
(9631)
R
7-7/8"
15-3/4"
5/8"
7-5/8"
*10-1/2"
*11"
ADA DRAIN
OUTLET
3/8" COLD
ENAMELED CAST IRON
SELF-RIMMING AND
UNDERCOUNTER LAVATORY
TOOLS AND MATERIALS REQUIRED
S
Safety glasses
S
Safety shoes
S
Pencil
S
Scissors
S
Tape measure
S
Putty knife
S
Screwdriver
S
Hole saw
S
Keyhole saw or saber saw
S
Drill (1/2" dia. drill bit or larger)
S
Sealant
24"
6-3/4"
8"
34"
MIN.
27"
MIN.
9"
MIN.
ADA CLEARANCE
UNDERCOUNTER
31"
Fig. #1
TERRAGON
4"
*10-1/2"
*11"
8"
34"
6"
MIN.
MAX.
27"
MIN.
9"
MIN.
ADA CLEARANCE
SELF-RIMMING
Copyright E1996 Kohler Co.
24"
6"
MAX.

Advertisement

loading

Related Manuals for Kohler TERRAGON K-2933

Summary of Contents for Kohler TERRAGON K-2933

  • Page 1 27” 27” MIN. MIN. 9” 9” MIN. MIN. 19-3/4” 5/8” ADA CLEARANCE ADA CLEARANCE UNDERCOUNTER SELF-RIMMING 7-5/8” *10-1/2” *11” 1-1/2” ADA DRAIN 31” OUTLET 4” 4” 3/8” HOT 3/8” COLD 1-1/4” OUTLET Fig. #1 114407-2- (9631) Copyright E1996 Kohler Co.

  • Page 2: Undercounter Installation

    Temporarily position the lavatory in the cutout to check fit. Remove the lavatory from the cutout. Fig. #4 Drill the faucet holes. Install the faucet to the countertop according to the manufacturer's instructions. Kohler Co., Kohler, WI 114407-2- (9631)
  • Page 3 Calculate the faucet centerline measurement by first dividing the escutcheon diameter in half, and then add 1/4”. Fig. #1 NOTE: Round this calculation up to the nearest 1/16”, if necessary. Kohler Co., Kohler, WI 114407-2- (9631)
  • Page 4 Backsplash behind the final faucet centerline. This is the minimum Backsplash Locator Line backsplash locator line. NOTE: Some Kohler faucets require a minimum of 2 1/2" 2” Faucet Centerline behind the final faucet centerline. Cut along the backsplash locator line.
  • Page 5 Fig. #8 Install the drain to the lavatory according to the manufacturer’s instructions. Apply two beads of sealant to the inside of the pencil line. Spread the sealant evenly with a putty knife. Fig. #9 Kohler Co., Kohler, WI 114407-2- (9631)

  • Page 6: Parts Information

    Connect the drain assembly. Gasket Open the faucet valves, and check for leakage. Clean up with a non-abrasive cleaner. Fig. #12 PARTS INFORMATION ITEM PART DESCRIPTION 44596 Insert 44597 Clip 68918 Screw 44598 Screw Kohler Co., Kohler, WI 114407-2- (9631)
  • Page 7 Kohler Co., Kohler, WI 114407-2- (9631)
  • Page 8 Kohler Co., Kohler, WI 114407-2- (9631)
