M-system R80DAT16A2 Instruction Manual page 2

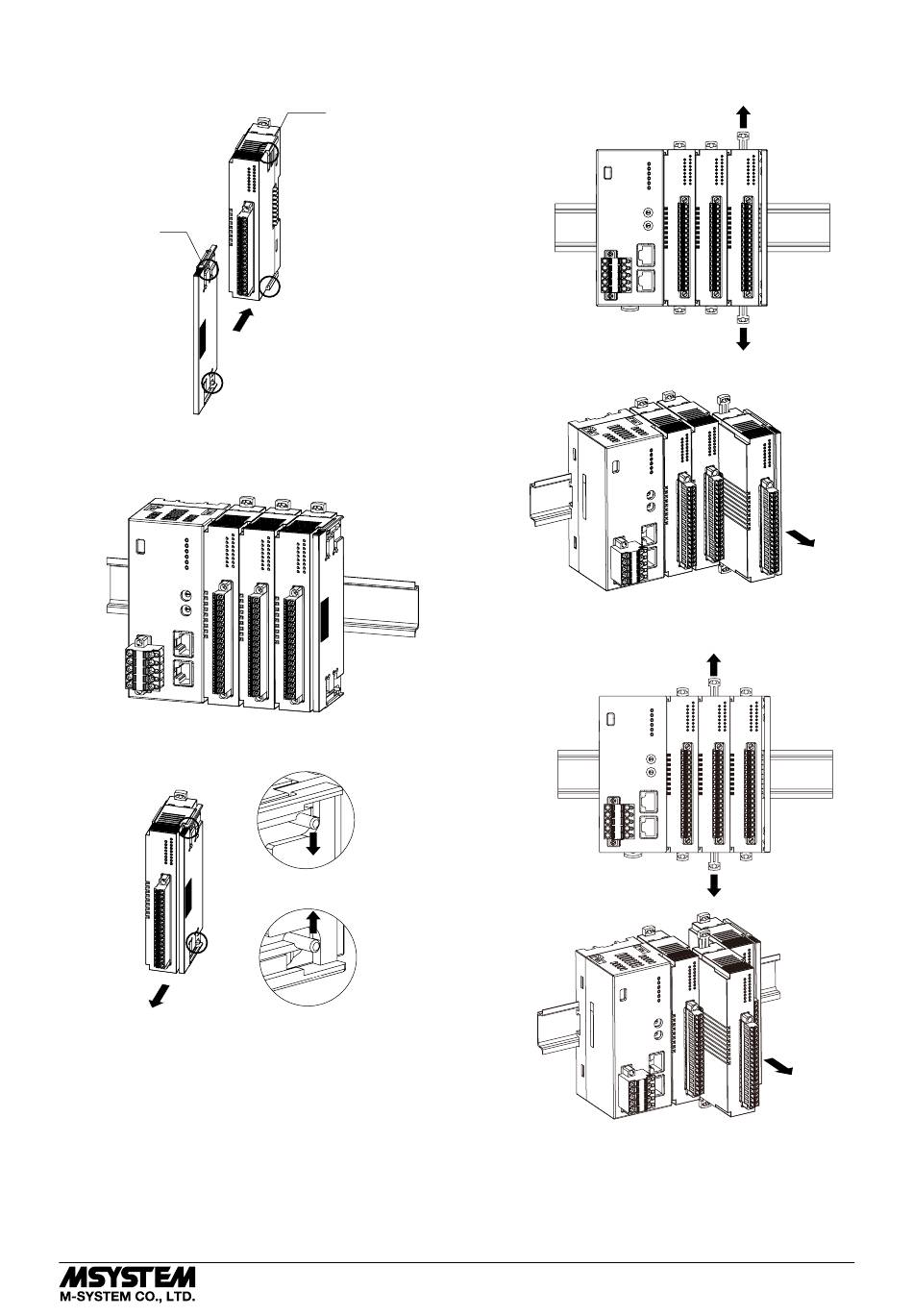

• Protective Cover
Hook
The protective cover is to be attached over the connected I/O module
at the right end.
Align the hooks on the cover with the grooves of the module and slide it
straight until the hooks are latched.
When removing the cover, pull it out while squeezing the hooks inward.
Groove
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
■ HOW TO UNMOUNT THE MODULE FROM DIN RAIL
• Release the locking clamps and pull out straight the module.
• Removing an intermediate module
Note 1: Be careful not to hurt your hand by pointed edges of the internal
bus connector.
Note 2: I/O modules cannot hold tightly on the DIN rail by themselves
without power/network module.
Secure them to the position if necessary by using DIN rail end
plates.
R80DAT16A2
EM-7031 P. 2 / 5
