OPERATING MANUAL
POWER/NETWORK MODULE
BEFORE USE .... ........................................................................................................... 2
POINTS OF CAUTION ...................................................................................................... 2
INSTALLATION ............................................................................................................. 2
COMPONENT IDENTIFICATION .......................................................................................... 3
TERMINAL CONNECTIONS ............................................................................................... 4
WIRING INSTRUCTIONS .................................................................................................. 5
TRANSMISSION DATA DESCRIPTIONS ................................................................................. 6
I/O DATA DESCRIPTIONS ................................................................................................. 7
SETTING .................................................................................................................... 8
(CC-Link IE TSN)
CONTENTS
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

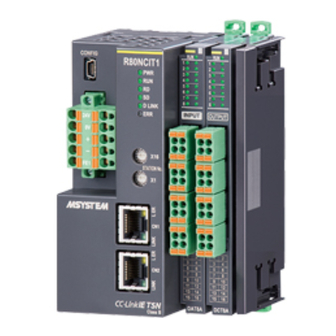

R80NCIT1
MODEL
EM-7026-B P. 1 / 15
Advertisement
Table of Contents
Related Manuals for M-system R80NCIT1
Summary of Contents for M-system R80NCIT1
-
Page 1: Table Of Contents
COMPONENT IDENTIFICATION ..................3 TERMINAL CONNECTIONS ....................4 WIRING INSTRUCTIONS ....................5 TRANSMISSION DATA DESCRIPTIONS ................. 6 I/O DATA DESCRIPTIONS ....................7 SETTING ........................8 EM-7026-B P. 1 / 15 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp... -
Page 2: Before Use
• Indoor use. • When heavy dust or metal particles are present in the Thank you for choosing M-System. Before use, please check air, install the unit inside proper housing with sufficient contents of the package you received as outlined below. -
Page 3: Component Identification
IP address / Station No. setting rotary SW are set with hexadecimal. For example, in the case of setting station No. 175, Set the Station MSB: A and LSB: F. EM-7026-B P. 3 / 15 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp... -
Page 4: Terminal Connections
Connect the unit as in the diagram below. ■ EXTERNAL DIMENSIONS unit: mm [inch] • UNIT 50 [1.97] (3 [.12]) 73 [2.87] (4 [.16]) DINrail (35mm wide) EM-7026-B P. 4 / 15 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp... -
Page 5: Wiring Instructions
AI0,5-10WH 0.5 mm (Phoenix Contact) AI0,75-10GY 0.75 mm (Phoenix Contact) AI1-10RD 1.0 mm (Phoenix Contact) AI1,5-10BK 1.5 mm (Phoenix Contact) AI2,5-10BU 2.5 mm (Phoenix Contact) EM-7026-B P. 5 / 15 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp... -
Page 6: Transmission Data Descriptions
The bit corresponding to such module turns to “1”, as described below. R80UST4, R80FST4NJ input current in error (AD converter response failure) R80YST4N output current in error (DA converter response failure) EM-7026-B P. 6 / 15 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp... -
Page 7: I/O Data Descriptions
■ DISCRETE DATA (models: R80DAT16A2, R80DCT16A2, etc.) Input 1 (Output 1) Input 2 (Output 2) Input 3 (Output 3) Input 16 (Output 16) 0 : OFF 1 : ON EM-7026-B P. 7 / 15 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp... -
Page 8: Setting
■ REGISTRATION FOR PROFILE This unit supports CC-Link Family system profile (CSP+). CSP+ can be downloaded from the M-System’s web site (https://www.msystem.co.jp) or CC-Link Partner Association’s web site (https://www.cc-link.org). However, registration of CSP+ is optional. If CSP+ is not needed, skip this section and move on to [Construction of System]. - Page 9 2) From the main menu, select [Project] ➞ [New] to create a new project. Select 3) Select the series, type, and program language, and click OK. Click EM-7026-B P. 9 / 15 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
- Page 10 4) In the following window, when [Module Label: Not use] is displayed in Module Setting, click [Setting Change] to open the option window, and change to [Use]. Click Select [Yes] for [Use Module Label] in [Operation Setting], and click [OK]. Click EM-7026-B P. 10 / 15 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
- Page 11 PLC configuration, select the module from [POU List] of the [Element Selection] window, and drag and drop it to the module configuration diagram. Drag & Drop 6) Double click [CC-Link IE TSN network module] to open the parameter setting window. EM-7026-B P. 11 / 15 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
- Page 12 7) Set Station Type to [Master Station], Network No. to 1 in [Required Settings]. 8) Click <Detailed Setting> of [Network Configuration Settings] in [Basic Settings] to display the [CC IE TSN Configuration] window EM-7026-B P. 12 / 15 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
- Page 13 * When CSP+ not registered, select [General CC IE TSN Module]. Click Drag & Drop 9) Click <Detailed Setting> of [Refresh Setting] to display the Refresh Setting window EM-7026-B P. 13 / 15 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
- Page 14 Assign link devices RX/RY/RWr/RWw to devices of the CPU unit, click [Apply] to close the window. Click 10) Click [Convert] ➞ [Convert] to execute conversion. Select EM-7026-B P. 14 / 15 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
- Page 15 11) Click [Write to PLC...] in [Online] on menu bar to open [Online Data Operation] window. Select Check necessary items, and click [Execute]. Click EM-7026-B P. 15 / 15 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
