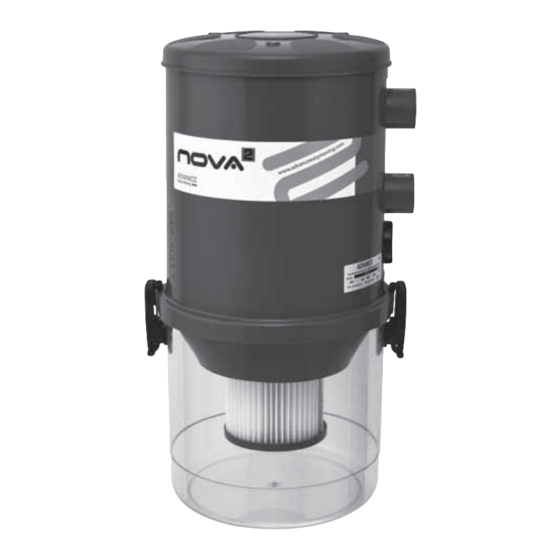

- Page 1 ASSEMBLY, USE AND MAINTENANCE MANUAL CENTRAL VACUUM UNIT NOVA 2...
- Page 3 INSTRUCTION MANUAL • Type: feeding system for solid fuel boilers • Model: Nova 2 • Revision 1.0.6 VACUUM UNIT NOVA 2 INDEX INTRODUCTION 1.1 Use of this manual WARNINGS 2.1 Installer’s responsibilities TECHNICAL DATA, EXPLODED VIEW DRAWINGS AND DIMENSIONS 3.1 Identifi cation plate 3.2 Safety symbols...
- Page 4 Instruction manual for vacuum unit 1 INTRODUCTION Dear customer, the manufacturer would fi rstly like to thank you for the choice you made in buying an product, whose technical features will certainly meet Your needs. Our products have been designed and manufactured in total compliance with the current regulations, by choosing the best materials to obtain durability and ease of use of the product.
- Page 5 3 TECHNICAL DATA, EXPLODED VIEW DRAWINGS AND DIMENSIONS Model Nova 2 Article AP1000.50.01 Dust inlet pipe Ø mm 50 M English Discharge pipe Ø mm 50 M IP protection degree Operating temperature min/max °C 0 ÷ 40 Degree of humidity min/max 30 ÷...
- Page 6 Instruction manual for vacuum unit Thermal switch Soundproof dome Activation signal cable (micro lines) Electric power cable Motor Machine body Dust inlet Filter cartridge Air vent Vacuum breaker Dust container Handle and closure hook 22/07/22 Rev:1.0.6...
- Page 7 Electronic board English Thermal switch Cover Fixing plate Motor upper gasket Machine body Motor Protection Vacuum grid breaker Motor lower gasket Conveyor cone with gasket Filter Handle and cartridge closure hook Filter Dust bin tightening knob 22/07/22 Rev:1.0.6...
- Page 8 Instruction manual for vacuum unit 3.1 Identifi cation plate The CE identifi cation plate is located to the piping network attachment side. Do not remove or damage the plate. Vacuum unit type Manufacturer identifi cation ......................CE Mark of Model: conformity P/N:...
- Page 9 4 KIT AND ACCESSORIES Check that the product corresponds to what was ordered and that there is no obvious damage caused by transport, otherwise notify the retailer immediately. English After opening the packaging, check that the material contained in the package is conforms to the list below: N°1 vacuum unit N°1 fi...
-
Page 10: Proper Use Of The Product
Instruction manual for vacuum unit 5 PROPER USE OF THE PRODUCT The vacuum unit has been designed to be installed for the pneumatic transport of pellets or other biomass fuels with a medium-fi ne size: it can move a large amount of air into the pipes connected, allowing the solid fuel to be conveyed and transported together with the air. - Page 11 system: 1- the characteristics and technical data provided for each component must always be evaluated in advance, so that the system works at its best and has the required characteristics. 2- in two-pipe systems (fuel suction and air return to the silo) the limits on the lengths are generally English much lower and never exceed 10 meters.
- Page 12 Instruction manual for vacuum unit Screw the screws into the dowels and check that the plate is well an- chored to the wall. Hook the suction unit to the anchor plate by lifting it, placing it against the wall and lowering it until it engages in the fi...
-
Page 13: Start-Up And Use
6.4 Electrical Connection Before making the electrical connection, check that the supply voltage corresponds to the one required and that the electrical system to which the product is connected English is done in compliance with current regulations. Connect the two MICRO line wires to the MICRO OUT terminal on the control panel. Connect the power cable to a 230 V ac power outlet. - Page 14 Instruction manual for vacuum unit If the plant is also used for dust aspiration and so if one or more aspiration sockets have been provided in the system, its operation is twofold and it is always managed by the control panel. In this case it works either when it is required to transport the fuel or when it is required the dust suction through the installed suction inlets (see components and accessories in the catalog).
- Page 15 8 MAINTENANCE AND END-OF-LIFE Before carrying out any maintenance operation, it is obligatory to disconnect the power supply cable from the main socket and to aerate the premises in which it is installed for at least 15 minutes. English Complex or long maintenance operations must be done out of fuel storage and heating unit premises.
-
Page 16: Safety Requirements
Instruction manual for vacuum unit 9 SAFETY REQUIREMENTS FOR FUEL STORAGE TANKS SAFETY REQUIREMENTS for pellet storage tanks with capacity up to 10 t Keep the doors closed. Access is permitted only to authorized personnel under the supervision of a person outside Do not smoke and approach fl... -
Page 17: Warranty
10 WARRANTY PRODUCT LIMITED WARRANTY CONDITIONS English The Manufacturer guarantees to the original purchaser the absence of defects in material and workmanship of the product for the period stated, from the date of purchase. Except as prohibited by applicable law, this warranty is non transferable and it is limited to the original purchaser. - Page 18 Instruction manual for vacuum unit 11 CERTIFICATION Declaration of absence of harmful substances The manufacturer declares that their products and equipment are made with materials compliant with the current regulations regarding protection of health and the environment and does not contain substances classifi...
- Page 19 Register your warranty Registra la tua garanzia Enregistrez votre garantie Registrieren Sie Ihre Garantie Registre su garantía advanceeasymoving.it/registrazione-prodotto...
- Page 20 F0920235.1 info@advanceeasymoving.com - www.advanceeasymoving.com...
