Intermatic PE45300 Supplementary Manual

MODEL: PE45300
I I N N R R A A I I N N P P R R O O O O F F ( ( T T Y Y P P E E 3 3 R R ) ) E E N N C C L L O O S S U U R R E E F F O O R R I I N N D D O O O O R R / / O O U U T T D D O O O O R R U U S S E E . .
125 amp. US /120 amp CANADA (If used as residential Distribution/Control equipment, not more
SUITABLE FOR SWIMMING POOL/SPA APPLICATIONS AND FOR DIRECT CONNECTION TO A WET-NICHE OR NO NICHE LUMINAIRE.
than 6 disconnects can be provided.)
120/240 volt or 120/208 volt single phase (three wire) AC
IMPORTANT:
The short circuit rating of this panel is 10000 symmetrical amperes.
This control panel must be installed according to the National Electrical Code (including article 680)
or Canadian Electrical Code (including section 68) and local code requirements. This installation is subject to the approval
by the local inspection authority. The main lugs and neutral main are suitable for No.14 to 2 AWG COPPER conductors.Use
No.14 to 6 AWG COPPER conductors for branch circuit wiring. Follow gauge selection table and corresponding terminal
screw tightening torque requirements below. Install interchangeable circuit breakers with an interrupting current rating of
10000 symmetrical amperes, or higher. All circuit breakers in this control panel shall be of the same manufacturer and type.
See list of suitable types below. Follow manufacturers instructions for installing and testing of ground fault circuit breakers
(GFCB) and interrupters (GFCI). Install only LISTED receptacle(s) and/or wiring device(s) inside the enclosure. A LISTED
wiring device may be installed in the rectangular side knockout provided. When panel is outdoors, a LISTED rainproof
cover must be installed over the wiring device in the side knockout. If this enclosure is used for direct conduit connection
to a wet-niche or no niche luminaire, one of the connection kits listed below in Note 6 must be used. This control should
not be connected to any equipment which would cause bodily injury or property damage should it be activated unexpectedly.
After wiring, install front panel over wiring compartment and close unused breaker openings with filler plates.
KEEP DOOR CLOSED AT ALL TIMES.
SUITABLE LISTED BREAKERS
CIRCUIT BREAKER
MANUFACTURER SINGLE DOUBLE TWIN QUAD
CUTLER-HAMMER BR BR BRD BRD
MURRY MP-T MP-T MH-T MH-T
SIEMENS QP QP QT QT
SQUARE D HOM HOM HOMT HOMT
NOTES: THOMAS & BETTS TB TB TBBD TBBQ
8. "
1. Any Intermatic T100M Series Time Switch, P1353ME mechanism, or
25
P4243ME mechanism may be installed in the bracket(s) provided or in
the event an existing mechanism(s) is replaced.
2. An additional ground bar may be installed in this control panel
(order 130T1318A).
3. If this control panel requires bonding, attach a LISTED bonding
terminal of a suitable size using the mounting hole(s) provided on the
bottom of the enclosure (156T11047A may be ordered).
4. When a circuit breaker is backfed, 22T904A Breaker Hold-Down Kit must
be used.
5. Wiring devices may be installed in this control panel (order 21T156A
(4) stand-offs for mounting).
6. The following kits are available to connect under water luminaires to this
enclosure: 1/2" non-metallic - order 156PA13713A
3/4" non-metallic - order 156PA13714A
1" non-metallic - order 156PA13715A
1/2" metallic - order 156PA14336A
7. Optional opening for Intermatic control device.
3-CIRCUIT DIGITAL CONTROL RATINGS:
CLOCK SOURCE VOLTAGE: 120/240VAC, 50/60 Hz.
POWER CONSUMPTION: 6.0 Watts Max.
CONTACT CONFIGURATION: SPST - each circuit.
CONTACT RATINGS - EACH CIRCUIT (P1353ME)
- 17A Resistive - 120/240V AC
- 17 Full Load A, 80 Lock Rotor A - 120/240V AC
- 5A Tungsten, or Ballast 120/240V AC
EVENTS PER CIRCUIT: 3 On/Off Events Per Circuit
- Aux Switch: 2A, 24V AC
MEMORY RETENTION:
• 40 Year retention for all programmed settings.
• 8-hour time retention.
VALVE / PUMP SWITCH MECHANISM (P4243ME) RATINGS:
CIRCUITS #1 & #2:
17A Resistive 120-240V, 10 A Tungsten-120V,
1.5 HP - 120V, 3 HP - 240V, 60 Hz; Double Pole Single Throw (DPST)
VALVE ACTUATOR SUPPLY: 24V - 40VA MAX.
INTERMATIC INCORPORATED
SPRING GROVE, ILLINOIS 60081-9698
6. "
5
C C L L A A S S S S C C T T L L D D I I S S T T R R I I B B U U T T I I O O N N / / C C O O N N T T R R O O L L
LR3730
P P A A N N E E L L W W I I T T H H 3 3 - - C C I I R R C C U U I I T T D D I I G G I I T T A A L L C C O O N N T T R R O O L L
WIRING INFORMATION - COPPER CONDUCTORS ONLY
TERMINAL TORQUE a
FILLER
GENERAL PURPOSE
PLATE
MAX MOTOR PURPOSE BRANCH
GFCB
SUPPLY LINE AND LOAD BRANCH
GFCB BRFP
WIRE SIZE CIRCUIT NEUTRAL NEUTRAL (CONTINUOUS CIRCUIT MAXIMUM
75˚C MIN BREAKER MAIN AND DUTY) BREAKER CURRENT
MP-GT LX100FP
INSULATION RATING LUGS GROUND 120V. 240V. RATING
QPF QF3
AWG AMP LB-IN LB-IN HP HP AMP
HOM HOMFP
14 15 35 20 1/2 1 15
12 20 35 20 1 2 20
GFB FP-1C-TB
10 30 35 20 1 1/2 3 30
8 50 b 40 25 2 5 40
6 65 45 35 --- --- 60
4 85 45 35 --- --- ---
2 115 50 --- --- --- ---
2 (90˚C) 125 c 50 --- --- ---
a TORQUE CIRCUIT BREAKER LUGS TO VALUES SPECIFIED ON CIRCUIT BREAKERS
b 45 AMP FOR CANADA.
c
120 AMP FOR CANADA.
158PE12767
2 REV ART TO REF NOTE 6 WAS 5
1 RELEASED TO ELEC. DATA
LET.
1/8 R. (4) OPTIONAL
UL508
UL1563
GENERAL
CIRCUIT
CAPACITY
AMP
12
16
24
32
44
---
---
---
MATERIAL SPECIFICATIONS:
1. WHITE VINYL WITH PERMANENT PRESSURE SENSITIVE
ADHESIVE BACKING. (.005" THICK)
SRB 4/27/2006
REVISION SIGN. MODEL
158PE12767
NOTES:
1. ALL PRINTING TO BE AS PER INTERMATIC
APPROVED ARTWORK, AND TO BE
CENTRALLY LOCATED ON LABEL.
SEE B/M FOR ALL PART NUMBERS & QUANTITIES
INTERMATIC INCORPORATED
ITEM PT. NO.
DR.: SRB 4/42006
CHKD.: TJS 4/4/2006

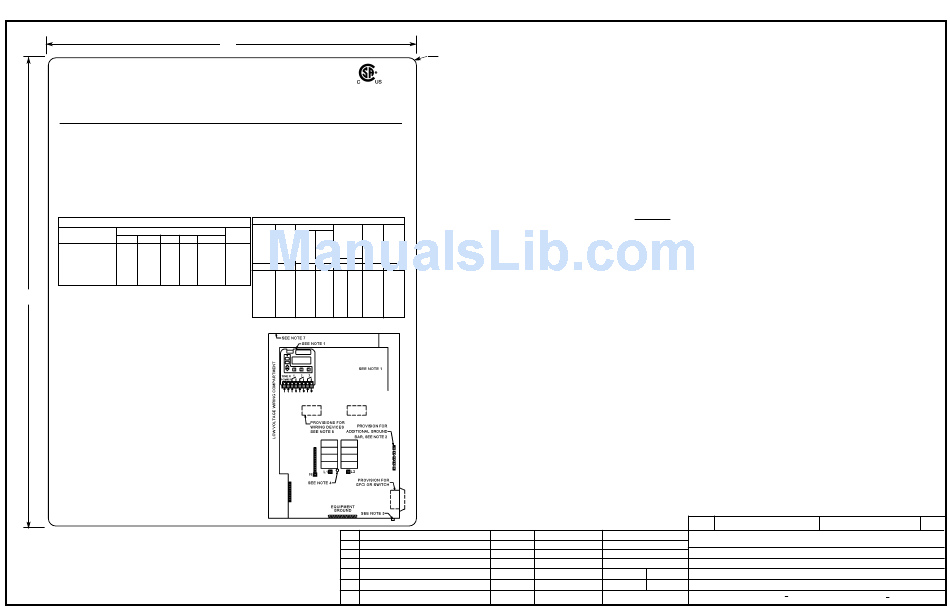

INST SHT - DOOR, PE45300
