P40000 SERIES
POOL/SPA EQUIPMENT CONTROLS

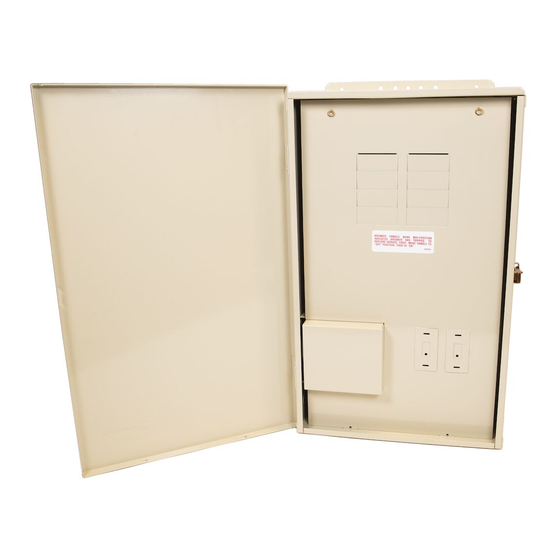

CONTROL PANEL FOR INDOOR/OUTDOOR USE
Suitable for Pool Equipment Control and for Direct Connection of Underwater Lights
ELECTRICAL RATINGS: See inside Enclosure Door
Risk of electric shock!
Test ground fault protection regularly. If it fails, do not use Pool or Spa. Contact
qualified service professional for help.
Do not use this control as a power disconnect, it could turn ON unexpectedly.
Disconnect electricity at the main Panel before servicing this control or the
equipment(s) connected to it.
Intermatic Pool and Spa load centers are
complete in construction and shall be installed
in accordance with NEC requirements as
applicable. These enclosures are provided
with provisions for single-gang certified
switching devices and an extra low voltage
transformer certified for use with underwater
pool lights with a breaker base. Enclosures
with breaker bases are certified as industrial
controls for specific use.
The Transformers supplied in these panels
are specifically designed to supply 12 volts
to underwater pool/spa lights. A grounded
shield between the primary and secondary
winding assures safe operation and the built-
in circuit protection will disconnect power to
the transformer in case of overload. These
transformers are suitable for direct connection
to underwater Pool and Spa lights.
The all-weather enclosure contains provisions
to install a switch inside as well as a switch or
GFCI receptacle on the outside.
WARNING
GENERAL INFORMATION
Transformer
Rating
100W
300W
* Any combination of bulbs, any tap.
1
INSTALLATION
OPERATION &
SERVICE MANUAL
Input
Secondary Output
60 Hz.
Lamp Watts*
120V. 1 Amp Max.
100 Max.
120V. 3 Amp Max.
300 Max.
Volts
12, 13 or 14
12, 13 or 14
