T21000R SERIES
POOL/SPA EQUIPMENT CONTROLS
CONTROL PANEL WITH TIME SWITCH FOR INDOOR/OUTDOOR USE
Suitable for Pool Equipment Control and for Direct Connection of Underwater Lights
ELECTRICAL RATINGS:
PANEL: 60 AMP/75˚C MAX. 120/240V OR 120/208V SINGLE PHASE (THREE WIRE) A.C.
TIME SWITCH: See Rating Inside Enclosure Door
The short circuit current rating of this panel board is 5000 symmetrical amperes.
...do not permit children to operate the Control Unit or use the Pool/Spa unless they are closely supervised at all times.
...test GROUND FAULT protection regularly. If it fails to reset, DO NOT USE THE POOL or SPA!
Contact a qualified service technician.
...always disconnect electricity before servicing this control or the equipment connected to it.
Many of today's energy efficient pools and spas
utilize the advantages of a single electrical panel,
containing all the necessary controls for the safe,
efficient and automatic operation of the pool/spa
equipment. In addition, this Panel can also be
used to control any outdoor equipment, sign or
pump within its rated capacity.

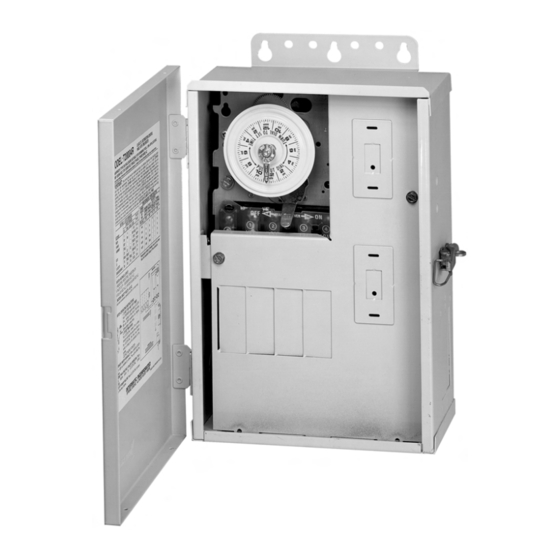

The all-weather enclosure contains a heavy-duty,
industrial grade Time Switch and a breaker base
for up to four full size circuit breakers. Also, it
has provisions to install switches or a GFCI
receptacle on the side as well as the inside.
The Time Switch can also accommodate an
optional heater control (fireman) switch.
The Control is designed to operate any pump,
within its rated capacity. However, if protection
to prevent dry start is required by the pump
manufacturer, it must be provided in addition
to this Control. Contact pump manufacturer if
not sure and/or for more details.
DANGER! TO AVOID RISK OF INJURY:
READ, FOLLOW AND SAVE THIS INSTRUCTION MANUAL
GENERAL INFORMATION
SERVICE MANUAL
1
INSTALLATION
OPERATION &
Advertisement
Related Manuals for Intermatic T21000R SERIES
Summary of Contents for Intermatic T21000R SERIES
- Page 1 T21000R SERIES POOL/SPA EQUIPMENT CONTROLS CONTROL PANEL WITH TIME SWITCH FOR INDOOR/OUTDOOR USE Suitable for Pool Equipment Control and for Direct Connection of Underwater Lights ELECTRICAL RATINGS: PANEL: 60 AMP/75˚C MAX. 120/240V OR 120/208V SINGLE PHASE (THREE WIRE) A.C. TIME SWITCH: See Rating Inside Enclosure Door The short circuit current rating of this panel board is 5000 symmetrical amperes.
- Page 2 IMPORTANT SAFETY INSTRUCTIONS When installing and operating this Product and other associated equipment, basic safety precautions should always be followed, including the following: 1. Read and follow all instructions. 2. This Control must be installed by a qualified electrician, according to National and Local Electrical Codes. 3.
- Page 3 TO SET FILTER PUMP TIME SWITCH, follow instructions on the right. The length of the daily filtration/ heating cycle depends on many variables such as size, shape, geographic location of the pool, water chemistry, type of pool equipment, usage and season of year. If not sure, contact your local pool service professional for advice.
- Page 4 Because of our commitment to continuing research and improvements, Intermatic Incorporated reserves the right to make changes, without notice, in the specifications and material contained herein and shall not be responsible for any damages, direct or consequential, caused by reliance on the material presented.
