Intermatic PE45300 Installation, Operation & Service Manual

PE SERIES POOL/SPA
EQUIPMENT CONTROLS
Model: PE45300

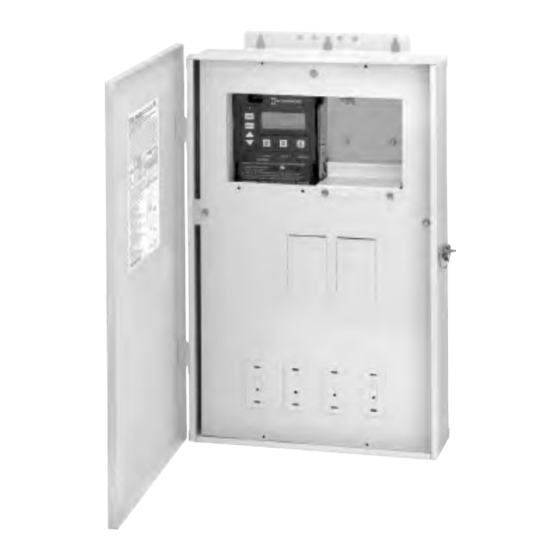

CONTROL PANEL WITH DIGITAL TIME CLOCK FOR INDOOR/OUTDOOR USE
Suitable for Pool Equipment Control and for Direct Connection of Underwater Lights
ELECTRICAL RATINGS:
80 AMP/75˚C MIN. 120/240V OR 120/208V SINGLE PHASE (THREE WIRE) A.C.
ALL DEVICES IN THIS CONTROL MUST BE SUPPLIED BY BRANCH CIRCUIT PROTECTORS LOCATED WITHIN THIS ENCLOSURE.
Digital Time Clock: See Rating Inside Enclosure Door
The short circuit current rating of this panel board is 10,000 symmetrical amperes.
...do not permit children to operate the Control Unit or use the Pool/Spa unless they are closely supervised at all times.
...test GROUND FAULT protection regularly. If it fails to reset, DO NOT USE THE POOL or SPA!
Contact a qualified service technician.
...always disconnect electricity before servicing this control or the equipment connected to it.
Many of today's energy efficient pools and spas
utilize the advantages of a single electrical panel,
containing all the necessary controls for the safe,
efficient and automatic operation of the pool/spa
equipment. In addition, this panel can also be
used to control any outdoor equipment, sign or
pump within its rated capacity.
The all-weather enclosure contains a heavy-duty,
industrial grade Digital Time Clock and a
breaker base for up to eight full size circuit
breakers. Also, it has provisions to install a switch
inside as well as a switch or GFCI receptacle on
the outside.
The Digital Time Clock is designed to operate
any pump, within its rated capacity. However, if
protection to prevent dry start is required by the
pump manufacturer, it must be provided in
addition to this Control. Contact pump
manufacturer if not sure and/or for more details.
DANGER! TO AVOID RISK OF INJURY:
READ, FOLLOW AND SAVE THIS INSTRUCTION MANUAL

GENERAL INFORMATION

SERVICE MANUAL
1
INSTALLATION
OPERATION &
