Bouclair 9403335 Assembly Instructions Manual

Bouclair 9403335 Assembly Instructions Manual

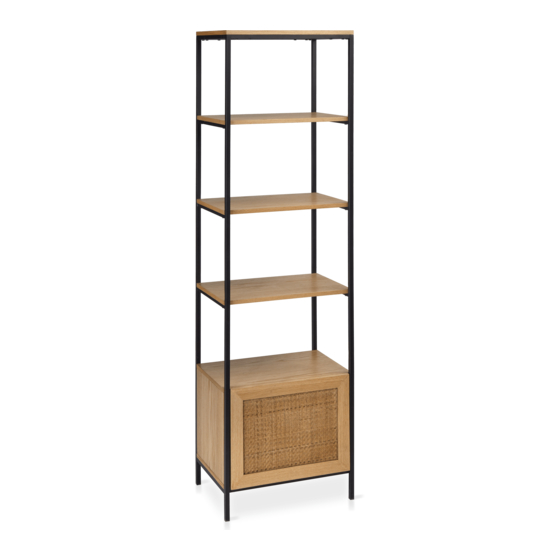

Shelving unit

Advertisement

Quick Links

IMPORTANT
Nous vous suggérons de lire ce dépliant jusqu'au
bout et de suivre les instructions simples étape
par étape.
Vérifiez soigneusement que vous avez toutes les
pièces avant de commencer l'assemblage.
Gardez les pièces de fixation hors de la portée
des enfants et tenir les enfants bien éloignés de
la zone d'assemblage.
Nous recommandons d'utiliser l'emballage pour
proteger les surfaces durant l'assemblage.
AVERTISSEMENT
Manipulerz es pièces de bois avec soin durant
l'assemblage, car elles peuvent s'égratigner
facilement.
No
lllustration
1
3
5
DIRECTIVES D'ASSEMBLAGE
ASSEMBLY INSTRUCTIONS
ÉTAGÈRE/ SHELVING UNIT
QTE
Description
QTY
Cadre latéral
Side frame
Croisillon
Cross brace
Planche latérale
Sideboard
9403335
IMPORTANT
• We suggest you read through this leaflet and
follow the simple step-by-step instructions.
• Carefully check that you have all parts before
beginning assembly.
• Keep fittings out of children's reach and keep
children well away from the assembly area.
• We recommend using the packaging to protect
surfaces during assembly.
WARNING
Handle wood components with care during
assembly as they can scratch easily.
No
lllustration
1
2
4
4
1
6
QTE
Description
QTY
Cadre latéral
Side frame
Planche arrière
Back board
Planche latérale
Sideboard
1
1
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 9403335 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bouclair 9403335

  • Page 1 DIRECTIVES D’ASSEMBLAGE ASSEMBLY INSTRUCTIONS ÉTAGÈRE/ SHELVING UNIT 9403335 IMPORTANT IMPORTANT • Nous vous suggérons de lire ce dépliant jusqu’au • We suggest you read through this leaflet and bout et de suivre les instructions simples étape follow the simple step-by-step instructions.
  • Page 2 Planche Planche inférieure supérieure Bottom board Top board Planche Tablette d'étagère supérieure Shelf board Top board Porte en cannage Canned door lllustration Description lllustration Description Goujons Came Dowels M8*30mm Φ15*12mm Tiges de Charnières connexion Hinges Connector rods M6*35mm Screw Screw 3.5*14mm 7*40mm Screw...
  • Page 3 Fixez 1 x Cadre latéral (1) et 1 x Cadre latéral (2) à 4 x Croisillon (3), en utilisant 16 x Vis (G). Serrez à 80%. à l'aide de la Clé hexagonale (J). Attach 1 x Side frame (1) and 1 x Side frame (2) to 4 x Cross brace (3), using 16 x Screw (G).
  • Page 4 Insérez 10 x Came (B) dans la Planche latérale (5 et 6) et à la Planche arrière (4). Insert 10 x Cam (B) to Side board (5 and 6) and back board (4). Fixez 4 x goujon (A) au planche latérale (5) et planche latérale (6).
  • Page 5 Fixez 6 x Goujon (A) au Panneau supérieur (7). Fixez le cadre assemblé à l'étape 4 à 1 x Planche supérieure (7). Serrez avec le tournevis (non inclus). Attach 6 x dowel (A) to the top panel (7). Attach the frame assembled in step 4 to 1 x Top board (7).
  • Page 6 Insérez le cadre assemblé à l'étape l'étape 6 dans le cadre assemblé à l'étape l'étape 1 à l'aide de 4 x Vis (I). Serrez avec la Clé hexagonale (J). Insert the frame assembled in step 6 into the frame assembled in step 1 using 4 x Screw (I).
  • Page 7 Fixez 2 x Charnière (D) à 1 x Porte en cannage (11), à l'aide de 4 x Vis (E), et serrez-les avec un tournevis (non inclus). Attach 2 x Hinges (D) to 1 x Canned door (11), using 4 x Screw (E), tighten with the screwdriver (not included).
  • Page 8 Fixez 2 x Plaque métallique en forme de L (M) au panneau de l'étagère (10), en utilisant 4 x Vis (E). Serrez à 80 % avec le tournevis(non inclus). Attach 2 x L-shaped metal plate (M) to Shelf board (10), using 4 x Screw (E). Tighten 80% with the screwdriver (not included).
  • Page 9 Questions? customerservise@bouclair.com / 1-800-268-254...
