Mercury Security EP4502 Manual

EP4502 Intelligent Controller
with Two Reader Interface
Installation and Specifications:

1. General

The EP4502 intelligent controller provides decision making, event reporting, and database storage for the
Mercury hardware platform. Two reader interfaces provide control for two doors.
The EP4502 communicates with the host via on-board 10Base T/100Base-TX Ethernet port.
Two physical barriers can be controlled with the EP4502. Each reader port can accommodate a read-
head that utilizes Wiegand, magnetic stripe, or 2-wire RS-485 electrical signaling standards and also
provides tri-stated LED control, and buzzer control (one wire LED mode only). Four Form-C relay outputs
may be used for strike control or alarm signaling. The relay contacts are rated at 5 A @ 30 Vdc, dry
contact configuration. Eight inputs are provided for monitoring the door contacts, exit push buttons and
alarm contacts. The EP4502 requires 12 to 24 Vdc for power.

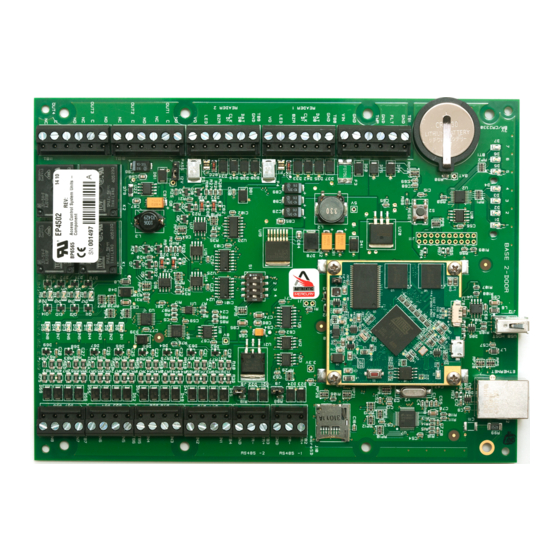

2. EP4502 Hardware:

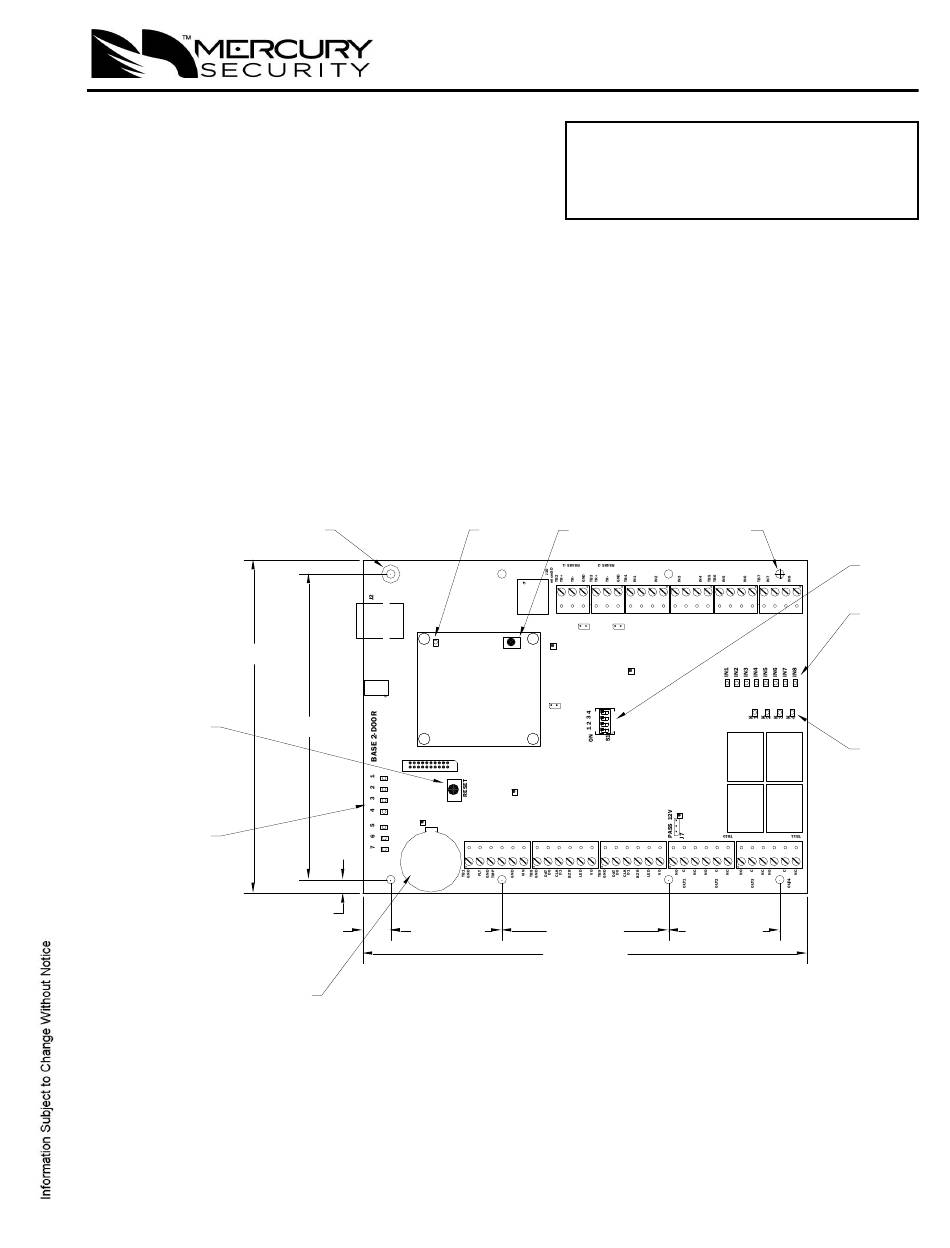

6.00 [152.40]
RESET SWITCH
STATUS
LEDs
0.25 [6.35]
BATTERY: BR/CR2330
REPLACE ANNUALLY
Mercury Security © 2015
2355 MIRA MAR AVE. LONG BEACH, CA 90815-1755, (562)986-9105 FAX (562) 986-9205
CHASSIS
GROUND
ETHERNET
USB HOST
J12
5.50 [139.70]
S2
BAT
+
BT1
3V
BR/CR2330
0.50 [12.70] 2.00 [50.80]
EP4502
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
PROCESSOR PROCESSOR
STATUS LED RESET SWITCH
J9
J5
S1
3.3V
RESET
8V
J1
J11
5V
READER 1 READER 2
3.00 [76.20]
8.00 [203.20]
DOC 10107-0039
www.mercury-security.com
Ø0.156 [Ø3.962]
8 PLACES
2.00 [50.80]
REV 1.02
Dip Switches
INPUT
STATUS
LEDs
OUTPUT
STATUS
LEDs
Page 1
