MS-ICS
Intelligent Controller
Installation and Specifications:
1. General
The MS-ICS is part of Mercury Security's bridging hardware technology for replacing the Software House GCM
module. The MS-ICS intelligent controller provides decision making, event reporting, and database storage for
the Mercury hardware platform.
The MS-ICS communicates with the host via on-board 10-BaseT/100Base-TX Ethernet port. An alternate host
10-BaseT/100Base-TX communication connection is available by use of the optional Lantronix Micro125
interface daughter board.
The MS-ICS connects to the MS-ACS processor via a 34-pin ribbon cable, up to two MS-ACS are supported.
Standard Mercury remote serial I/O panels may be connected to the external 2-wire RS-485 multi-drop
communication bus.

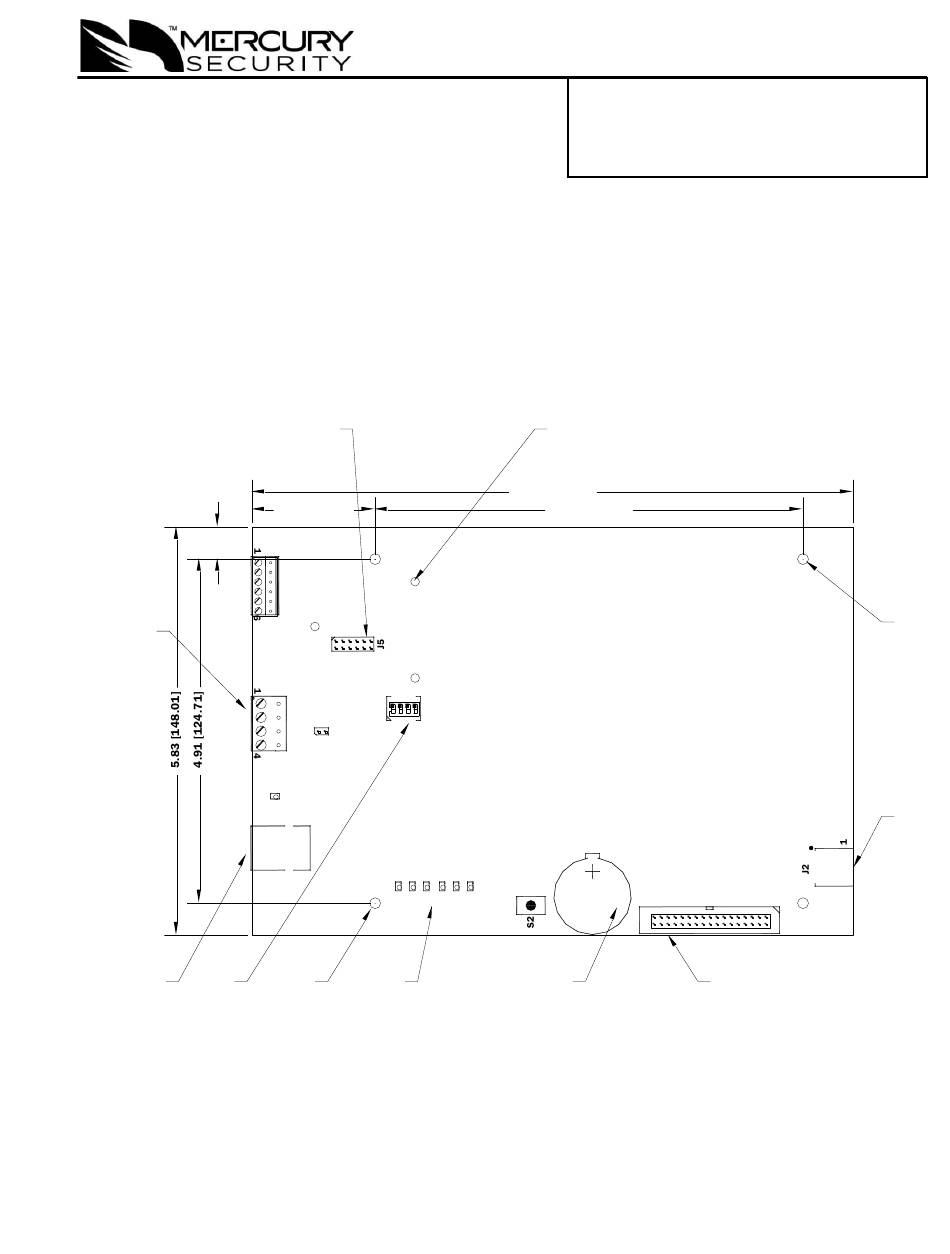

J5: CONNECTION FOR
LANTRONIX MICRO125
ETHERNET MODULE
.46 [11.56]
PFL
GND
BAT
GND
TMP
GND
TB2: TO
REMOTE
MODULES
TR+
TR-
GND
D7
J4: ETHERNET
DIP
JACK
SWITCH
Mercury Security © 2017
2355 MIRA MAR AVE. LONG BEACH, CA 90815-1755, (562)986-9105 FAX (562) 986-9205
(PORT 1)
1.75 [44.55]
TB1
1
2
3
4
TB2
^ |
S1
ON
J8
J4
1 2 3 4 5 6
EARTH
STATUS
GROUND
LEDs
MS-ICS
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
STANDOFF FOR LANTRONIX MICRO125
ETHERNET MODULE: DIAMETER
0.125" X 7/16", 3 REQUIRED
RICHCO, INC. P/N LMSP-7-01
8.58 [218.01]
6.11 [155.19]
MS-ICS
BT1 3V
CR/BR2330
BATTERY: BR/CR2330
REPLACE ANNUALLY
MS-ICS
DOC 10107-0053
www.mercury-security.com
+12VDC
J1
J1: TO MS-ACS
REV 1.02
Ø.156
4 PLACES
J2: INPUT
POWER
12VDC
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mercury Security MS-ICS
Summary of Contents for Mercury Security MS-ICS
- Page 1 10-BaseT/100Base-TX communication connection is available by use of the optional Lantronix Micro125 interface daughter board. The MS-ICS connects to the MS-ACS processor via a 34-pin ribbon cable, up to two MS-ACS are supported. Standard Mercury remote serial I/O panels may be connected to the external 2-wire RS-485 multi-drop communication bus.
-
Page 2: Input Power Wiring
2. Setting Up the MS-ICS Hardware: DIP Switches: The four switches on S1 DIP switch are used to configure the operating mode of the MS-ICS controller. DIP switches are read on power-up except where noted. Pressing switch S2 causes the MS-ICS to reboot. -
Page 3: Memory And Real Time Clock Backup Battery
The 34-conductor ribbon cable is non-standard. Do use a floppy disk drive cable. IMPORTANT NOTE! Install the termination jumper (MS-ICS jumper J8), ONLY on the panel at each end of the RS-485 bus. Failure to do so will compromise the proper operation of the communication channel! 6. - Page 4 6. Full memory erase takes up to 60 seconds. 7. When complete, only LEDs 1 & 4 will flash for 8 seconds. 8. The MS-ICS board will reboot 8 seconds after LEDs 1 & 4 stop flashing (no LEDs are on during this time). 9. IT Security When installing the MS-ICS, it is important to ensure that it done in a secure manner.
- Page 5 These specifications are subject to change without notice. Warranty Mercury Security warrants the product is free from defects in material and workmanship under normal use and service with proper maintenance for one year from the date of factory shipment. Mercury Security assumes no responsibility for products damaged by improper handling or installation.
