Comfort, Quality & Style Since 1998
Modern Pyramid Heater
Questions, problems, missing parts?
Before returning to your retailer, our Florida-based customer service team is available:
Call toll-free
Email
Live chat
FOR YOUR SAFETY:
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from
the appliance and immediately call your
gas supplier or fire department.
DANGER indicates an imminently
hazardous situation which, if not avoided,
will result in death or serious injury.
Failure to comply with the precautions
and instructions provided with this heater
can result in death, serious bodily injury
and property loss or damage from
hazards of fire, explosion, burn,
asphyxiation, and/or carbon monoxide
poisoning. Only persons who can
understand and follow the instructions
should use or service this heater.
WARNING
This product can expose you to chemicals
including Lead, Chromium (hexavalent
compounds), Di(2-ethylhexyl) phthalate (DEHP)
and Diisononyl phthalate (DINP), which are known
to the State of California to cause cancer and birth
defects or other reproductive harm. For more
information, go to www.P65Warnings.ca.gov.
(866) 985-7877
cservice@welltraveled.net
www.balkenehome.com
Item #: 63099, 63591, 63592, 63593, 63594,
63595, 63596, 63597
DANGER
DANGER
DANGER
9 a.m. – 9 p.m., EST
9 a.m. – 6 p.m., EST, Monday - Friday
WARNING
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
An LP-cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance.
WARNING
Improper installation, adjustment,
alteration, service or maintenance can
cause property damage, injury or death.
Read the installation, operation and
maintenance instructions thoroughly
before installing or servicing this
equipment.
WARNING
FOR OUTDOOR USE ONLY!
ATTACH YOUR
RECEIPT HERE
Keep a copy of your proof of
purchase or order confirmation
which will be needed if you need
to contact us about warranty
coverage.
Serial No.
Purchase Date
01272021
Advertisement
Table of Contents
Related Manuals for Fire Sense 63099
Summary of Contents for Fire Sense 63099

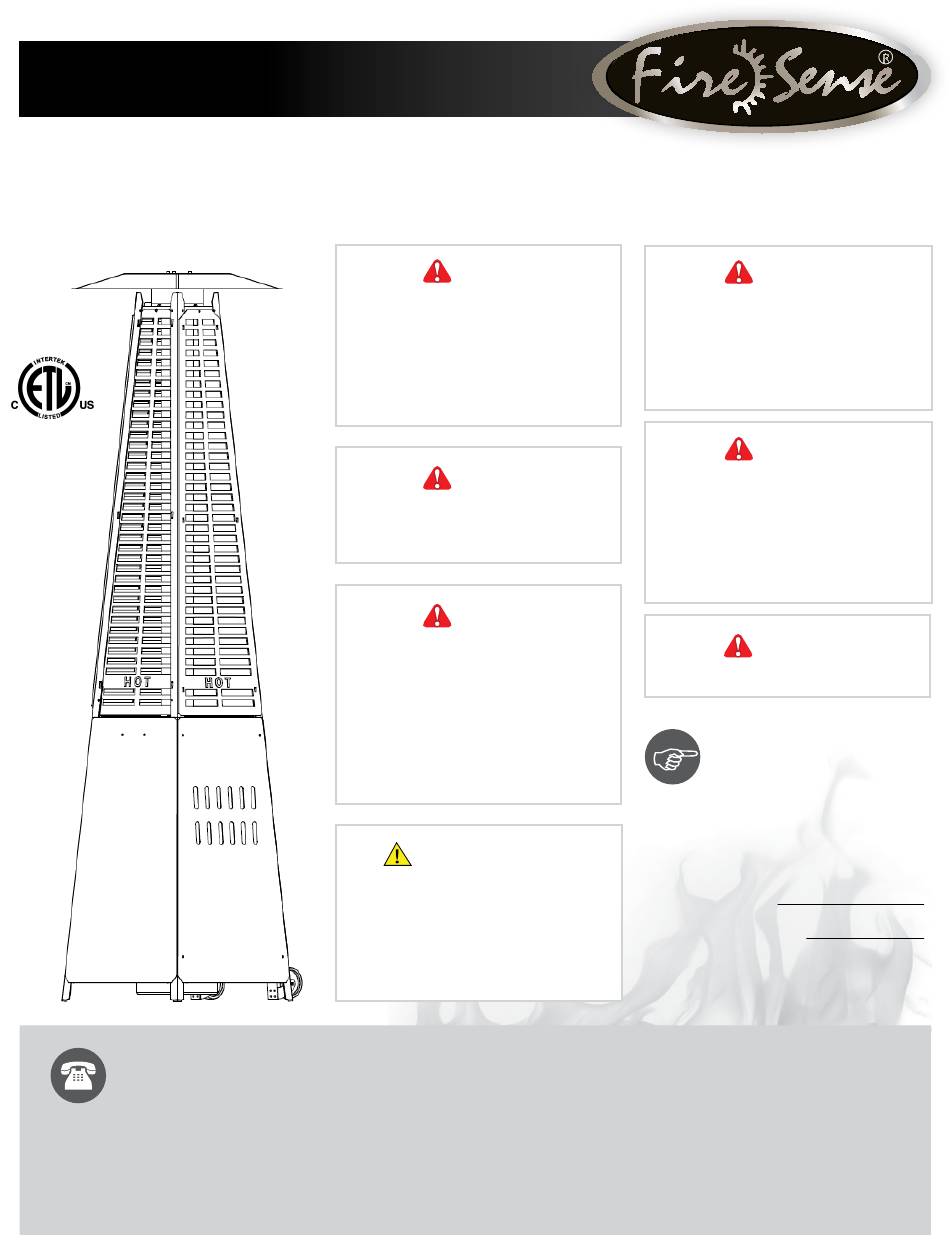

- Page 1 Comfort, Quality & Style Since 1998 Modern Pyramid Heater Item #: 63099, 63591, 63592, 63593, 63594, 63595, 63596, 63597 DANGER WARNING FOR YOUR SAFETY: Do not store or use gasoline or other If you smell gas: flammable vapors and liquids in the 1.
-
