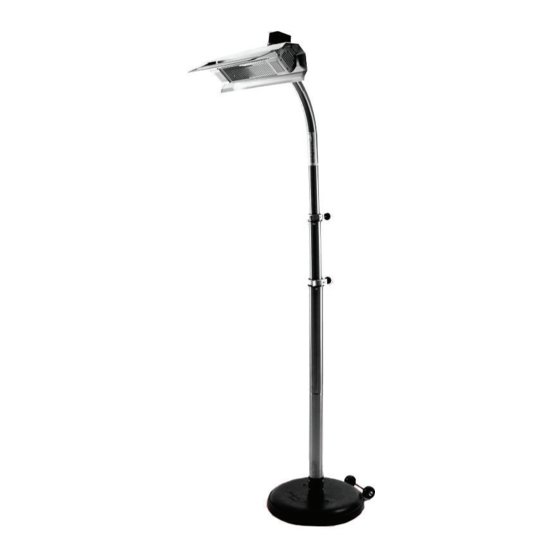

Fire Sense 02117 Owner's Manual
Hide thumbs
Also See for 02117:
- Owner's manual (14 pages) ,
- Operating instructions & troubleshooting manualline (2 pages)
Advertisement
Quick Links
Distributed by:
Well Traveled Living
Amelia Island, FL 32034
Web:
www.wtliving.com
Email:
cservice@welltraveled.net
Owner's Manual
Models: 02117/60694/02678
READ & SAVE these instructions
Carefully read and review before attempting to
assemble, install, operate, or maintain this product.
Observe all safety instructions and information.
FAILURE TO FOLLOW WARNINGS AND
OPERATIONAL INSTRUCTIONS
CONTAINED IN THIS MANUAL CAN
RESULT IN SEVERE PROPERTY DAMAGE
AND OR PERSONAL INJURY.
***For Residential Use Only***
***Important Notice***
Do not return to place of purchase!!
Please contact our Toll Free Hotline at
1-866-985-7877 for customer
service and warranty issues.
SAVE THESE INSTRUCTIONS
Advertisement
Related Manuals for Fire Sense 02117
Summary of Contents for Fire Sense 02117
- Page 1 Owner’s Manual Models: 02117/60694/02678 READ & SAVE these instructions Carefully read and review before attempting to assemble, install, operate, or maintain this product. Observe all safety instructions and information. FAILURE TO FOLLOW WARNINGS AND OPERATIONAL INSTRUCTIONS CONTAINED IN THIS MANUAL CAN RESULT IN SEVERE PROPERTY DAMAGE AND OR PERSONAL INJURY.
- Page 2 Safety Guidelines Read this manual carefully to become knowledgeable about your heater and how to use it properly. To help recognize this information, observe the following symbols. Indicates a potentially hazardous situation which, if Indicates a potentially hazardous situation, if not not avoided, WILL result in serious injury or death.
-
Page 3: Parts List
This appliance MUST be grounded. * When using outdoors, we recommend using a certified GFI (Ground Fault Interrupt) outlet to protect against electrical shock. * All installations must be in accordance with I.E.E. safety regulations or the equivalent. * Avoid the use of an extension cord with this appliance. * Do not place any objects such as furniture, papers, clothing or curtains closer than 3 feet to the front and sides of the heater. - Page 4 Important Instructions 1. Read all instructions before using this heater. 11. Do not insert or allow foreign objects to enter any ventilation or exhaust opening; doing so may 2. This heater is hot when in use. To avoid burns, cause an electrical shock or fire, or may damage the do not let bare skin touch hot surfaces.
-
Page 5: Assembling Your Heater
Assembling Your Heater Before beginning assembly, be sure to read and familiarize yourself with the overall assembly process and instructions in this manual. It may be helpful to have someone assist you with the assembly. You will need the following tools (NOT INCLUDED): ** #2 or #3 Philips Screwdriver (or standard slotted screwdriver) ** Adjustable Wrench. - Page 6 STEP 2 Using mounting bracket (Part 2), thread entire electrical cord through the mounting bracket as shown in Figure 3. FIGURE 3 STEP 3 Using 4 threaded bolts and lock washers, attach mounting bracket (Part 2) to head unit (Part 1) as shown in Figure 4. FIGURE 4 STEP 4 Align tilt switch (black box on head unit, Part 1) to threaded holes on mounting bracket (Part 2) and insert small...
- Page 7 STEP 5 Thread electrical cord through curved upper arm (Part 3) and attach with 4 threaded bolts and lock washers as shown in Figure 6. FIGURE 6 STEP 6 Insert inner support tube (Part 4) inside telescopic body (Part 5) as shown in Figure 7. Tighten clamp collar as shown in Figure 8.
- Page 8 STEP 8 Thread electrical cord through base connection pole section (Part 6) and insert 4 threaded bolts and lock washers as shown in Figure11, 12 and 13. FIGURE 12 FIGURE 11 FIGURE 13 STEP 9 Mount support collar flange (Part 7) to base assembly with wheels (Part 8) as shown in Figure 14, and secure with flat washer, lock washer, and ¾”...
- Page 9 CAUTION! OPERATING INSTRUCTIONS This appliance MUST be grounded. * When using outdoors, we recommend using a certified GFI (Ground Fault Interrupt) outlet to protect against electrical shock. * ALL installations must be in accordance with I.E.E. safety regulations or equivalent. * Avoid the use of an extension cord with this appliance.
- Page 10 Specifications Model: 02117/60694/02678 Voltage: 120 volts Amps: 12.5 amps Wattage: 1500 watts Lamp Type: Quartz Halogen Minimum Operational Height: 8 ft., 2 in. (98 in.) Assembled Weight: 53 lbs. 4.5” x 7” x 22” Head Unit Dimensions: 22” diameter base, 93” height...
- Page 11 Halogen Lamp Replacement Contact the toll free customer hotline to order approved replacement lamps and parts. Use ONLY approved original equipment and replacement halogen lamps to ensure safe, proper and maximum output operation of your heater. NOTE: Do NOT touch the new halogen lamp with your bare fingers. Oils from your hand could reduce the life of the lamp by causing a heat spot.
-
Page 12: Troubleshooting
Troubleshooting Problem Solution Unit fails to turn on. Check electrical plug connection at wall outlet for a complete, snug fit. Check to make sure the “On/Off” switch located on tilt switch is pulled OUT or in the “On” position. Check GFI and reset circuit breaker if needed. If unit is plugged into a wall outlet wired to an On/Off switch, make sure switch is in On Position. - Page 13 Customer Service Hours: Mon. – Fri. 9:00 a.m. – 6:00 p.m. (EST) Fire Sense®, Mojave Sun ®, and Well Traveled Living® are registered trademarks of Well Traveled Imports, Inc®. All assembly instruction presentations are the property of Well Traveled Imports, Inc.® and are protected by U.S. copyrights and trademarks. All rights reserved.
