Fire Sense 02110 Manual

Fire Sense 02110 Manual

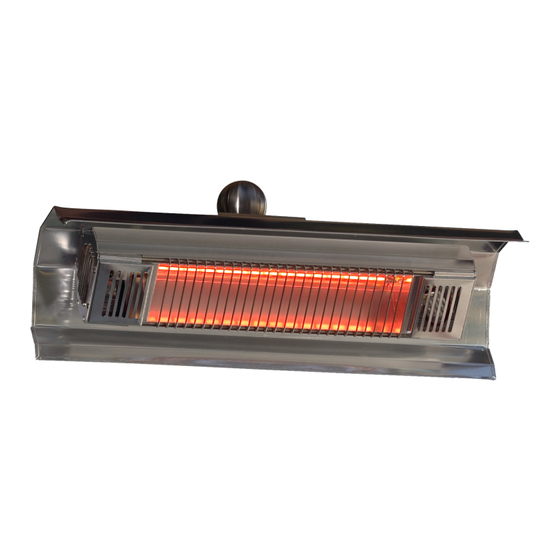

Wall-mountable infrared heater

Advertisement

Wall-Mountable Infrared Heater
C
Intertek
3154846
Questions, problems, missing parts?
Before returning to your retailer, our Florida-based customer service team is available:
Call toll-free
Email
Live chat
UNIT MUST BE ON A
DEDICATED ELECTRICAL
CM
US
PLEASE READ THESE
INSTRUCTIONS CAREFULLY
BEFORE USING YOUR NEW
(866) 985-7877
cservice@welltraveled.net
www.balkenehome.com
1. Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage.
2. Read the installation, operation, and maintenance
instructions thoroughly before installing or servicing
this equipment.
3. Failure to follow these instructions could result in fire or
explosion, which could cause property damage, personal
injury, or death.
CAUTION
No user - serviceable parts inside.
Recommended for SHELTERED exterior use or indoor use.
Do NOT expose to rain or moisture.
CIRCUIT.
HEATER.
9 a.m. – 9 p.m., EST
9 a.m. - 6 p.m., EST, Monday - Friday
Item#: 02110 / 60460
WARNING
FOR YOUR SAFETY
Risk of Electric Shock — Do not open.
NOTICE:
For residential use only.
WARNING
This product can expose you to chemicals
including Lead, Chromium (hexavalent
compounds), Di(2-ethylhexyl) phthalate (DEHP)
and Diisononyl phthalate (DINP), which are known
to the State of California to cause cancer and birth
defects or other reproductive harm. For more
information, go to www.P65Warnings.ca.gov.
ATTACH YOUR
RECEIPT HERE
Keep a copy of your proof of
purchase or order confirmation
which will be needed if you
need to contact us about
warranty coverage.
Purchase Date:
03162021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 02110 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Fire Sense 02110

  • Page 1 Wall-Mountable Infrared Heater Item#: 02110 / 60460 WARNING FOR YOUR SAFETY 1. Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. 2. Read the installation, operation, and maintenance instructions thoroughly before installing or servicing this equipment.
  • Page 2: Table Of Contents

    BEFORE YOU BEGIN TABLE OF CONTENTS Before You Begin Page 2 Safety Information Pages 3-4 Package Contents Page 5 Assembly Page 6 Adjustment & Operation Page 7 Specifications, Storage & Maintenance Page 10 Bulb Replacement Page 9 Troubleshooting Page 10 Warranty Page 11 BEFORE YOU BEGIN...
  • Page 3: Safety Information Pages

    Particular attention must be given where children and vulnerable people are present. LISTING APPROVALS This heater has been tested in accordance with the ETL standards. Model Number Length Height Depth 02110 / 60460 22.125"” 7.25" 8.25" Description Wall-Mountable Quartz Halogen Infrared Heater Voltage 120V AC, 60Hz Amps 12.5 amps...
  • Page 4 SAFETY IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances, to reduce the risk of fire, electric shock and injury to persons, always follow basic precautions, including the following: 1. Read all instructions before use. 21. When turning on your heater for the first time, it is normal for the heater to emit a mild “new heater”...
  • Page 5: Package Contents

    PACKAGE CONTENTS PARTS LIST 1 - IR Head unit w/Protective Aluminum Shield with: • Pre-installed wall-mount component • Aluminum main heating unit w/ 1500W quartz halogen lamp, swivel bracket, and 16/3 grounded electrical cord 2 - Wall Mounting Bracket 3 - Hardware •...
  • Page 6: Assembly

    ASSEMBLY PREPARATION Before beginning assembly, be sure to read and familiarize yourself with the overall assembly process and instructions in this manual. It may be helpful to have someone assist you with the assembly. You will need the following tools (NOT INCLUDED): #2 or #3 Philips Screwdriver (or standard slotted screwdriver) Adjustable Wrench, pencil, drill with 5/16 bit, ladder Complete any assembly on a clean, level, nonabrasive location.
  • Page 7: Adjustment & Operation

    ADJUSTMENT & OPERATION Your infrared electric heating system is ready to use. Plug in the heater and enjoy the warmth! Contact us for assistance: (866) 985-7877 | www.balkenehome.com...
  • Page 8 STORAGE & MAINTENANCE 0 2 1 1 0 , 6 0 4 6 0 1 2 0 v o l t s 1 2 . 5 a mp s 1 5 0 0 w a t t s Q u a r t z H a l o g e n 8 4 ”...
  • Page 9: Bulb Replacement

    BULB REPLACEMENT INSTALLATION WARNINGS Halogen Bulb Replacement Contact the toll free customer hotline to order approved replacement bulbs and parts. Use ONLY approved original equipment and replacement halogen bulbs to ensure safe, proper and maximum output operation of your heater. NOTE: Do NOT touch the new halogen lamp with your bare fingers.
  • Page 10: Specifications, Storage & Maintenance

    TROUBLESHOOTING TROUBLESHOOTING Problem Possible Solution Check electrical plug connection at wall outlet for a complete, snug fit. Check to make sure unit is on a dedicated electrical circuit. Make sure unit is on flat ground and tilt switch is LEVEL/horizontal with the ground. Make sure ON/OFF power switch on pole is in ON position.
  • Page 11 an additional year Before returning 9 a.m. – 6 p.m., EST, Mon – Fri...

This manual is also suitable for:

60460
