ESP8266EX
Espressif Systems
Hardware User Guide
!
!
!
3.
ESP-LAUNCHER Development Board
Espressif Systems provides ESP8266EX development board for quick evaluation and familiarisation
of products and for secondary development for customers. The size of the demo board is
46mm*78.5mm. Functional components on the demo board are illustrated in the Figure 14 below.

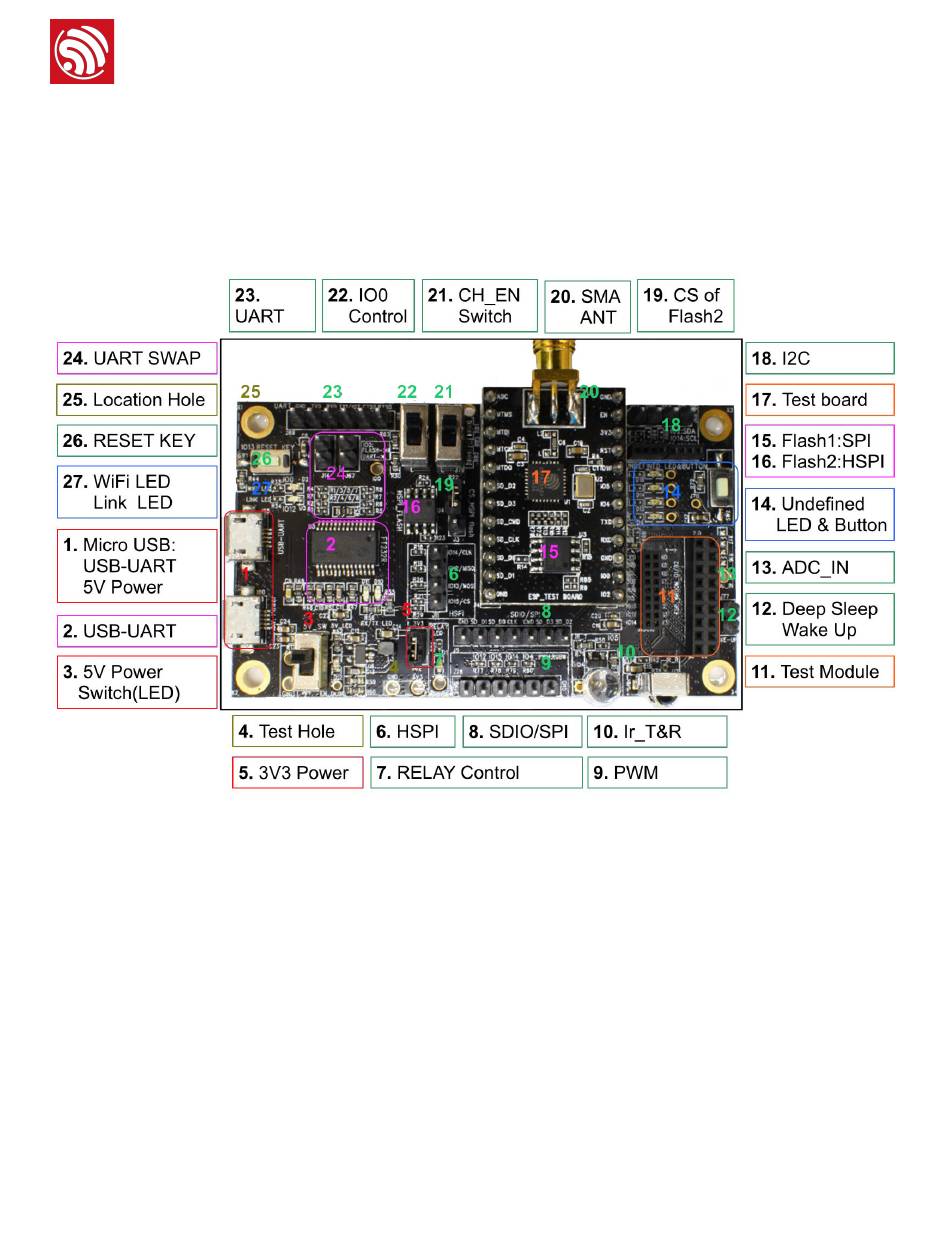

Figure 14 ESP8266EX Development Board
Espressif Systems
24 48
/
Jun 1, 2015
