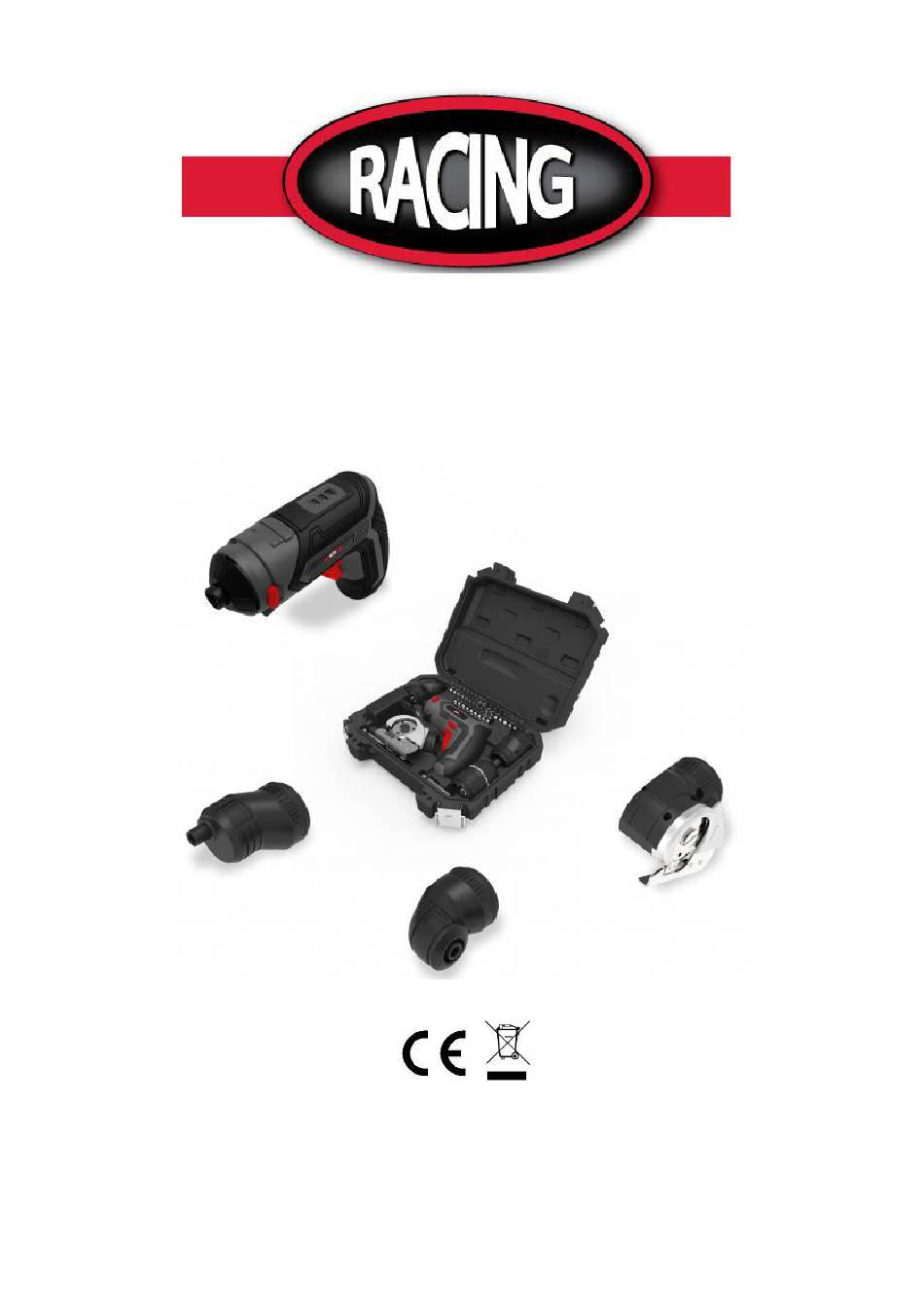

- Page 1 ORIGINAL INSTRUCTIONS>EN CORDLESS SCREWDRIVER RAC3IN115 INSTRUCTION MANUAL BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Made in PRC 2021...
-
Page 2: Table Of Contents
ORIGINAL INSTRUCTIONS>EN CONTENT SAFETY INSTRUCTIONS......................3 KNOW YOUR PRODUCT......................6 INTENDED USE..........................8 PACKAGE CONTENTS........................8 TECHNICAL DATA........................8 BEFORE USE..........................9. ASSEMBLE THE ATTACHMENTS....................9 CHANGING BITS/SCREW DRIVER BITS..................10 OPERATION..........................10 10. MAINTENANCE, STORAGE AND CLEANING................11 11. DISPOSAL...........................11 12. CE DECLARATION........................12 13. WARRANTY..........................13 14. PRODUCT FAILURE........................14 15. WARRANTY EXCLUSIONS......................15... -
Page 3: Safety Instructions
ORIGINAL INSTRUCTIONS>EN 1: SAFETY INSTRUCTIONS: GENERAL POWER TOOL SAFETY WARNINGS: WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. - Page 4 ORIGINAL INSTRUCTIONS>EN h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second. 4) Power tool use and care a) Do not force the power tool.
- Page 5 ORIGINAL INSTRUCTIONS>EN a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock. ELECTRICAL SAFETY Connect the charger only to 100-240V~ socket. Load the battery of the screwdriver only with the appropriate charger. The charger and screwdriver must be protected against moisture! Do not use the charger outdoors.
-
Page 6: Know Your Product
ORIGINAL INSTRUCTIONS>EN 2. KNOW YOUR PRODUCT... - Page 7 ORIGINAL INSTRUCTIONS>EN Rotation direction switch/safety lock-out Charger Battery charge level indicator Torque attachment Rubber cap Micro USB plug of the charging cable Lock bottom Eccentric attachment Charging socket Angle attachment ON/OFF switch Cutting attachment LED lamps Bits and bit extension Tool holder...
-
Page 8: Intended Use
1 charger 1 angle attachment 10 bits x 25mm 1 cutting attachment 2 bits x 50 mm 1 set of operating instructions 5. TECHNICAL DATA CORDLESS SCREWDRIVER RAC3IN115 Voltage V d.c. Battery cell ICR18650 Li-ion Battery capacity 1500 No-load speed... -
Page 9: Before Use
ORIGINAL INSTRUCTIONS>EN 6. BEFORE USE 6.1) Charging the appliance battery (see fig. a) Note: The battery is supplied partially charged. Before first use, charge the battery in the charger for at least 1 hour. This guarantees full battery power. Li-ion batteries can be charged at any time without adversely affecting their service life. -
Page 10: Changing Bits/Screw Driver Bits
ORIGINAL INSTRUCTIONS>EN 8. CHANGING BITS/SCREW DRIVER BITS (see fig. d) Inserting: ♦ Insert the bit into the tool holder. Removal: ♦ Pull the bit out of the tool holder. Replacing the cutting blade (see fig. e + f) Note: Before carrying out any work on the appliance, ensure that the rotation direction switch is in the middle. This prevents unintentional switching on. -
Page 11: Maintenance, Storage And Cleaning
ORIGINAL INSTRUCTIONS>EN 10. MAINTENANCE, STORAGE AND CLEANING WARNING! RISK OF ELECTRIC SHOCK! Before cleaning, disconnect the charger from the mains socket. Note Before carrying out any work on the appliance, ensure that the rotation direction switch is in the middle. This prevents unintentional switching on. -
Page 12: Ce Declaration
ZI, 32 rue Aristide Bergès- 31270 Cugnaux-France Tel : + 33 (0) 5.34.502.502 Fax : + 33 (0) 5.34.502.503 Declares that the machinery designated below: Cordless screwdriver RAC3IN115 Serial number: 20210433722-20210436771 Complies with the provisions of the Directive « machinery »... -
Page 13: Warranty
13. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 14: Product Failure
14. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 15: Warranty Exclusions
15. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
