The Kicker KSMT25 pod provides a mid and tweeter with optimized adjustability. The
pod can be mounted to almost any surface where a hole can be drilled. Not only does the entire
pod assembly pivot, lean, and rotate on the ball and socket mounting stud - the tweeter also has
approximately 260 degrees of planetary rotation around the mid to provide desired orientation.
This document demonstrates adjusting, mounting, and wiring of the KSMT25 pod assembly for
the following Kicker models:
• 47KSMT2504

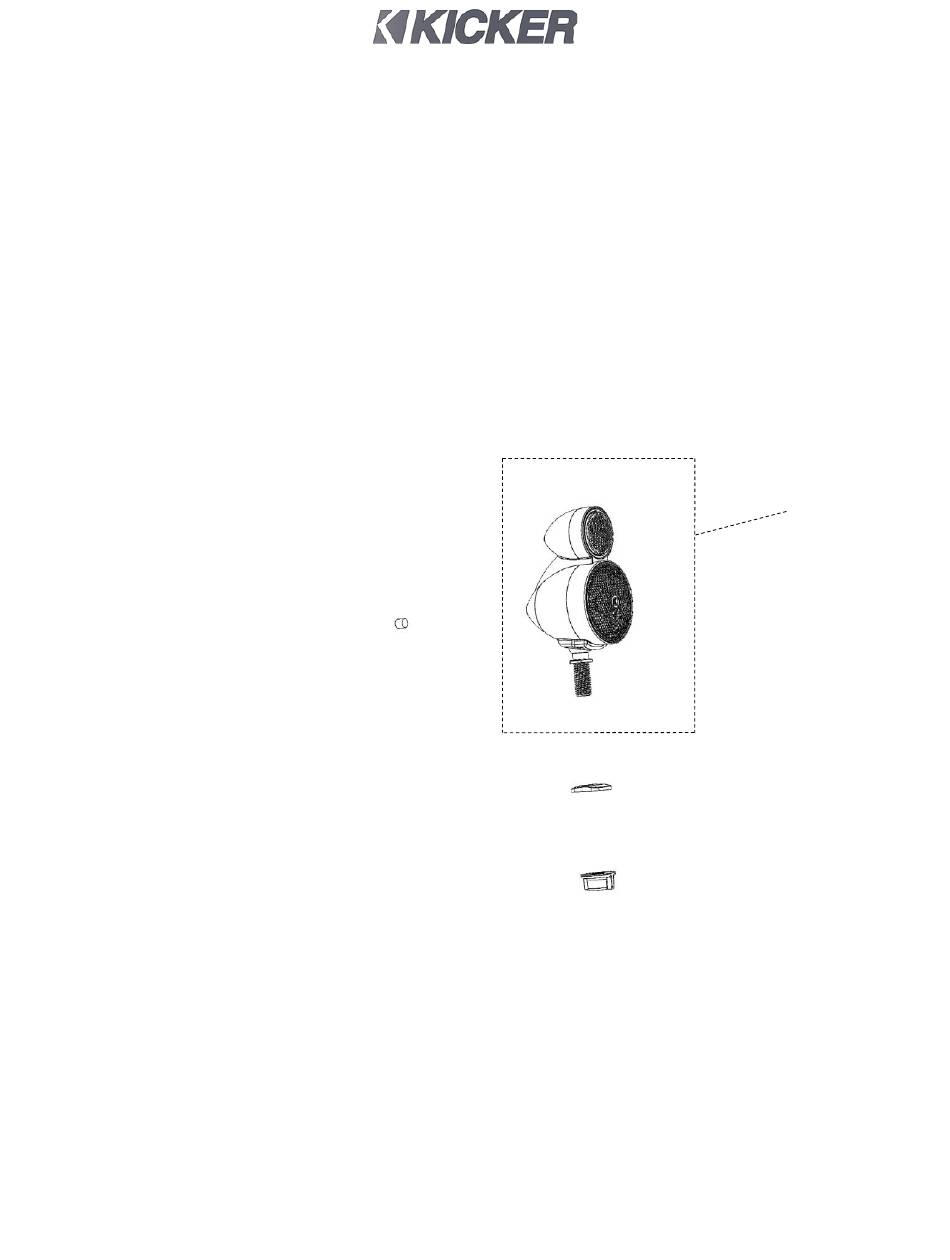

PARTS IDENTIFICATION
Below is a list describing part names used in these instructions.
(1) KSMT25 pod assembly
(2) Tweeter
(3) Mid
(4) Mounting Stud
(5) Decorative Plug
(6) Washer
(7) Wing Nut
READ AND UNDERSTAND ALL OF THESE INSTRUTIONS BEFORE
EOP2021-CS4
REV-A.1
(5)
INSTALLATION!
49KSMT25 Installation Guide
(2)
(3)
(4)
(6)
(7)
(1)
5/26/2021
Page 1 of 6
