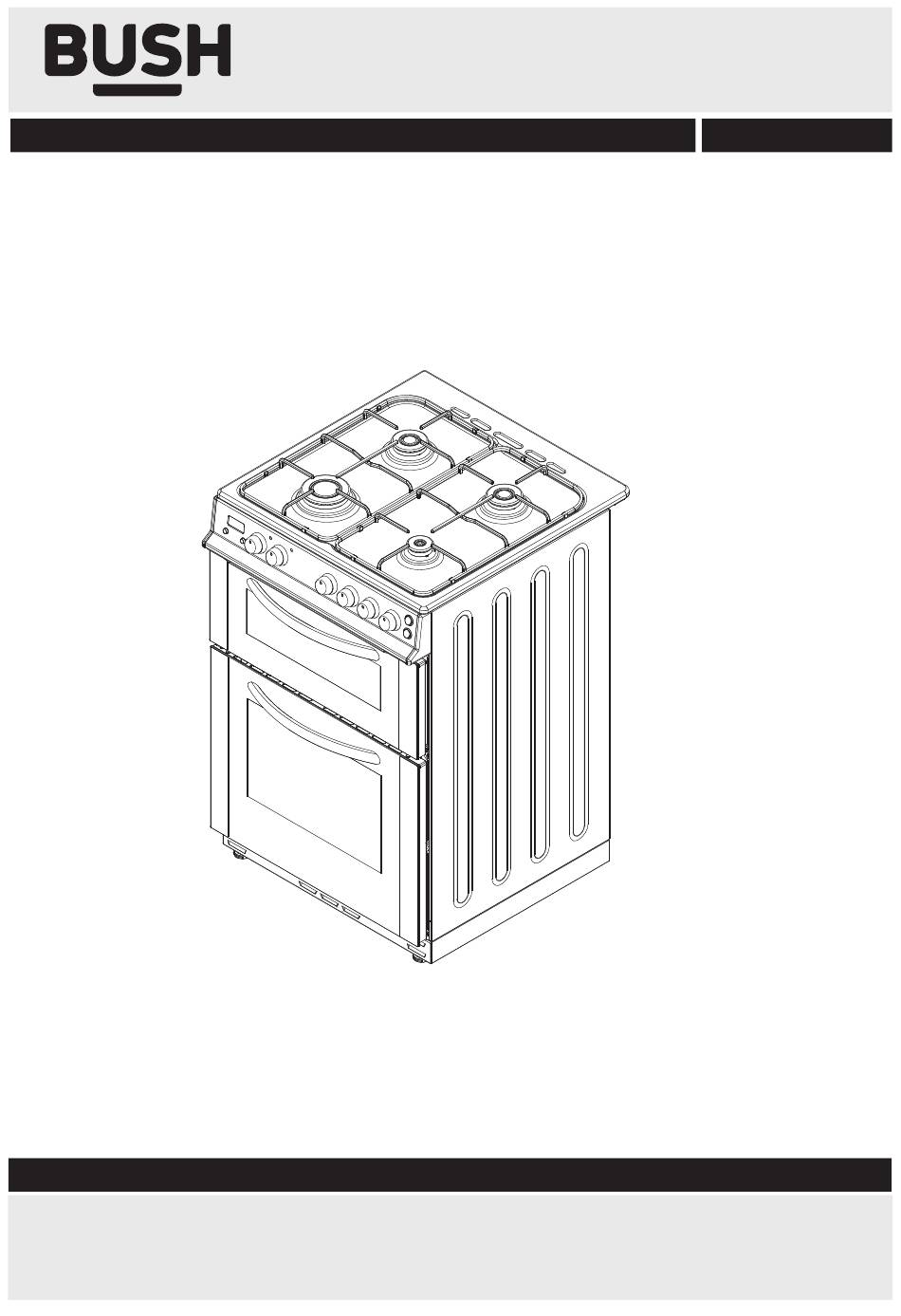

Double Oven Cooker
Operating Instructions -
Please keep for future reference
AG66DSS - AG66DA
Important -
Please read these instructions fully before using
These instructions contain important information which will help you get the best from your
appliance and help to ensure safe and correct installation, use and maintanence.
If you need help or have damaged or missing parts, call the Customer Helpline: 0345 257 7271
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bush AG66DSS
Summary of Contents for Bush AG66DSS
- Page 1 Double Oven Cooker Operating Instructions - Please keep for future reference AG66DSS - AG66DA Important - Please read these instructions fully before using These instructions contain important information which will help you get the best from your appliance and help to ensure safe and correct installation, use and maintanence.
-
Page 2: Table Of Contents
AG66DSS Installation User instructions 6-11 Using the hob Using the oven and grill Using the digital minute minder Cleaning and Maintenance Cleaning and Maintenance Transporting the cooker Trouble Shooting Technical specifications 14-15 Injector table Guarantee Product code AG66DSS - AG66DA... -
Page 3: Parts
Parts If you have damaged or missing parts, call the Customer Helpline: 0345 257 7271 Please familiarise yourself with the parts and accessories listed below 1. Pan supports x 2 Gas burner 2. Gas burner 11. Ignition switch 3. Rapid burner 12. -
Page 4: Safety Information
Safety Information Customer Helpline 0345 257 7271 Important - Please read these instructions fully before installation READ THESE INSTRUCTIONS CAREFULLY AND - WARNING: Danger of fire: do not COMPLETELY BEFORE USING YOUR store items on the cooking surfaces. APPLIANCE, AND KEEP IT IN A CONVENIENT - WARNING: If the surface is PLACE FOR REFERENCE WHEN NECESSARY. - Page 5 Safety Information Customer Helpline 0345 257 7271 Important - Please read these instructions fully before installation • All possible security measures have been taken - WARNING: Ensure that the to ensure your safety. Since the glass may break, appliance is switched off before you should be careful while cleaning to avoid replacing the lamp to avoid the scratching.
- Page 6 Safety Information Customer Helpline 0345 257 7271 Important - Please read these instructions fully before installation • When the door or drawer of the oven is open, • Do not leave the cooker while cooking with solid do not leave anything on it. You may unbalance or liquid oils.
-
Page 7: Installation
Installation Customer Helpline 0345 257 7271 Positioning & electrical connection IMPORTANT - All Gas installations must be carried out by a suitably qualified person. For information on choosing a gas installer contact the ‘Gas Safe Register’. For specific gas installation, refer to the separate installation guide. - Page 8 Installation Customer Helpline 0345 257 7271 Positioning & electrical connection IMPORTANT - Electrical connections must be carried out by a suitably qualified person and in accordance with all relevant local building and installation regulations. Electrical connections 1. This appliance is fitted with fused plug which Electrical connection diagram should be inserted into a suitable mains socket.
-
Page 9: User Instructions
User Instructions Customer Helpline 0345 257 7271 Using the hob IMPORTANT - Flame safety device: Ignition of the burners To determine which knob controls which Hob Burners burner, check the position symbol above the Hobs equipped with flame failure device knob. -
Page 10: Using The Hob
Control of the hob burners The knob has 3 positions: Off (0), maximum (big flame symbol) and minimum (small flame AG66DSS symbol). After you ignite the burner in maximum position; you can adjust the flame length between maximum and minimum Figure 4 positions. - Page 11 User Instructions Customer Helpline 0345 257 7271 Using the hob WARNING - Use only flat pans and with a sufficiently thick base. WARNING - Ensure that the base of the pan is dry before placing it on the burners. WARNING - The temperature of accessible parts may be high when the appliance is operating.
-
Page 12: Using The Oven And Grill
User Instructions Customer Helpline 0345 257 7271 Using the oven and grill Control of the Oven Burner trays during cooking or you can remove the top tray when the food is cooked and move the Ensure the glass lid is in the upright lower tray to the higher shelf to finish cooking position.After you ignite the oven burner as o not place baking trays directly on the oven... - Page 13 User Instructions Customer Helpline 0345 257 7271 Using the oven and grill If your appliance has a grill pan and handle set as an accessory, refer to accessories section for its usage. WARNING - Ensure that the grill is turned off before closing the door.
-
Page 14: Using The Digital Minute Minder
User Instructions Customer Helpline 0345 257 7271 Using the digital minute minder Simultaneously press (+) and (-) buttons of digital minute minder. The display will start flashing, and then you can set the time setting by using (+) and (-) buttons. When you press (+) or (-) buttons after setting the time ( ) symbol is displayed, and the desiring timer set. -
Page 15: Cleaning And Maintenance
Cleaning and Maintenance Customer Helpline 0345 257 7271 Cleaning and Maintenance Cleaning Be sure that all control switches are in the off position and your appliance has cooled down before cleaning your oven. Turn off the appliance. Check the cleaning products are recommended by the manufacturer. -
Page 16: Cleaning And Maintenance
Cleaning and Maintenance Customer Helpline 0345 257 7271 Cleaning and Maintenance Burner Caps If it does not have the original case; prepare a carriage box so that the appliance, especially Periodically, enameled pan support, enameled external surfaces (glass and painted surfaces) of covers, burner heads must be washed with oven is protected against external forces. -
Page 17: Trouble Shooting
Trouble Shooting Customer Helpline 0345 257 7271 Basic troubleshooting before contacting service WARNING – If you smell gas, immediately turn of the gas supply at the mains and open all windows and doors to ventilate the area. Do not operate any electrical appliances including lighting switches and wall sockets. -
Page 18: Technical Specifications
Technical Specifications Customer Helpline 0345 257 7271 Injector Table Gas Category: II 2H3+ G30/G31 Destination: GB Class: 1 Total Consumption: G30 28-30mbar 28-30/37 mbar 20 mbar 12.3 kW 894 g/h RAPID BURNER Injector Diameter (1/100mm) Nominal Rating (kW) Consumption 218.1 g/h 285.7 I/h AUXILLARY BURNER Injector Diameter (1/100mm) - Page 19 Technical Specifications Customer Helpline 0345 257 7271 AG66DSS AG66DA Model/Item 230-240V~ 230-240V~ Power supply Maximum gas consumption 12.3 kW 12.3 kW 900x600x600 mm 900x600x600 mm Size(H x W x D) We apologise for any inconvenience caused by any minor inconsistencies in these instructions , which may occur as a result of product improvemenst and development.
- Page 20 Customer Helpline: 0345 257 7271. 52113539 R002 05/15...
