- Page 1 Anypos67X User Manual QINGDAO WINTEC SYSTEM CO., LTD...
- Page 2 Anypos67X Thanks for purchasing Anypos67X POS terminal. This manual will give you some instructions on the function and operation of this product. About the Product Anypos67X a multifunctionaltouch POS terminal with optional POSperipherals like MSR, customer display and the second screen. To meet the specialized needs of different users, it is the ideal choice for retail and catering entertainment industry,etc.It is integrated with the processor of high...

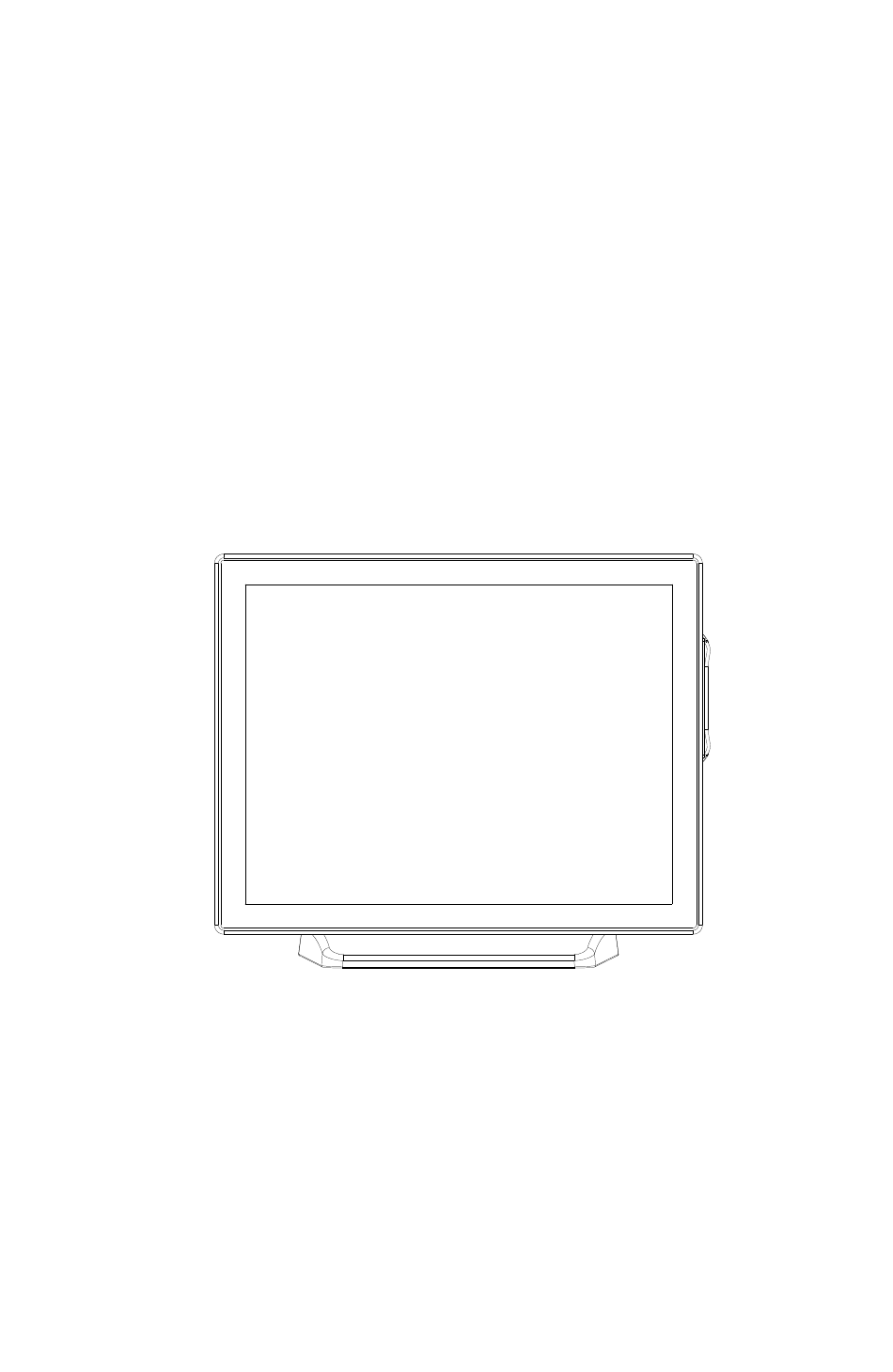

- Page 3 Outward Diagram Front view DESCRIPTION TFT LCD and Touch Screen Magnet Stripe Reader(Optional) Rear view DESCRIPTION Customer Display Cover Power Switch Base HDD Cover...
- Page 4 IOPort 1 DESCRIPTION COM3Port COM3 12V Power USB(Optional) PS2 KB Cash Drawer Port +12V Output Jack 12VOUT AC Adapter Jack COM4Port COM4 3G Antenna VGA Port COM1 COM1 Port LAN Port USB Ports USB Ports IOPort 2 DESCRIPTION COM3 Port COM3 12V Power USB(Optional) Cash Drawer Port...
- Page 5 COM1 COM1 Port 3G Antenna Line-out/Microphone OTG Jack HDMI HDMI Jack LAN Port USB Ports Note: IO port 1 for X86 models, IO port 2 for Android models. HDD Dismantlement 1. Dismantle the HDDcover, and find the HDD bracket. 2. Removethescrew M3*4 which is to fix the bracket...
-
Page 6: Customer Display Installation
3. Pull out the HDDbracket. Customer Display Installation 1. Connect the data cable of customer display to the seat of 4 Pins on the pinboard. 2. Connect the customer display on the rear cover with 4pcs M4*11.5 screws. MSR Installation 1. - Page 7 1. Double-click the icon, open the program, the system will automatically scan the card reader connected to the motherboard interface. The two interfaces of Anypos67X are connected with USB port by default when the machines are produced. As shown in the figure:Green words represent connected, red words represent not connected.
-
Page 8: Troubleshooting
Troubleshooting A few common hardware problems and suggested solutions are presented in the table below: PROBLEM SOLUTION Make sure that the Power LED is on and The display is dark. machine is not in sleeping mode. The following message when booting up appears Ensure that the operating system iscorrectly “Invalid system disk,...
