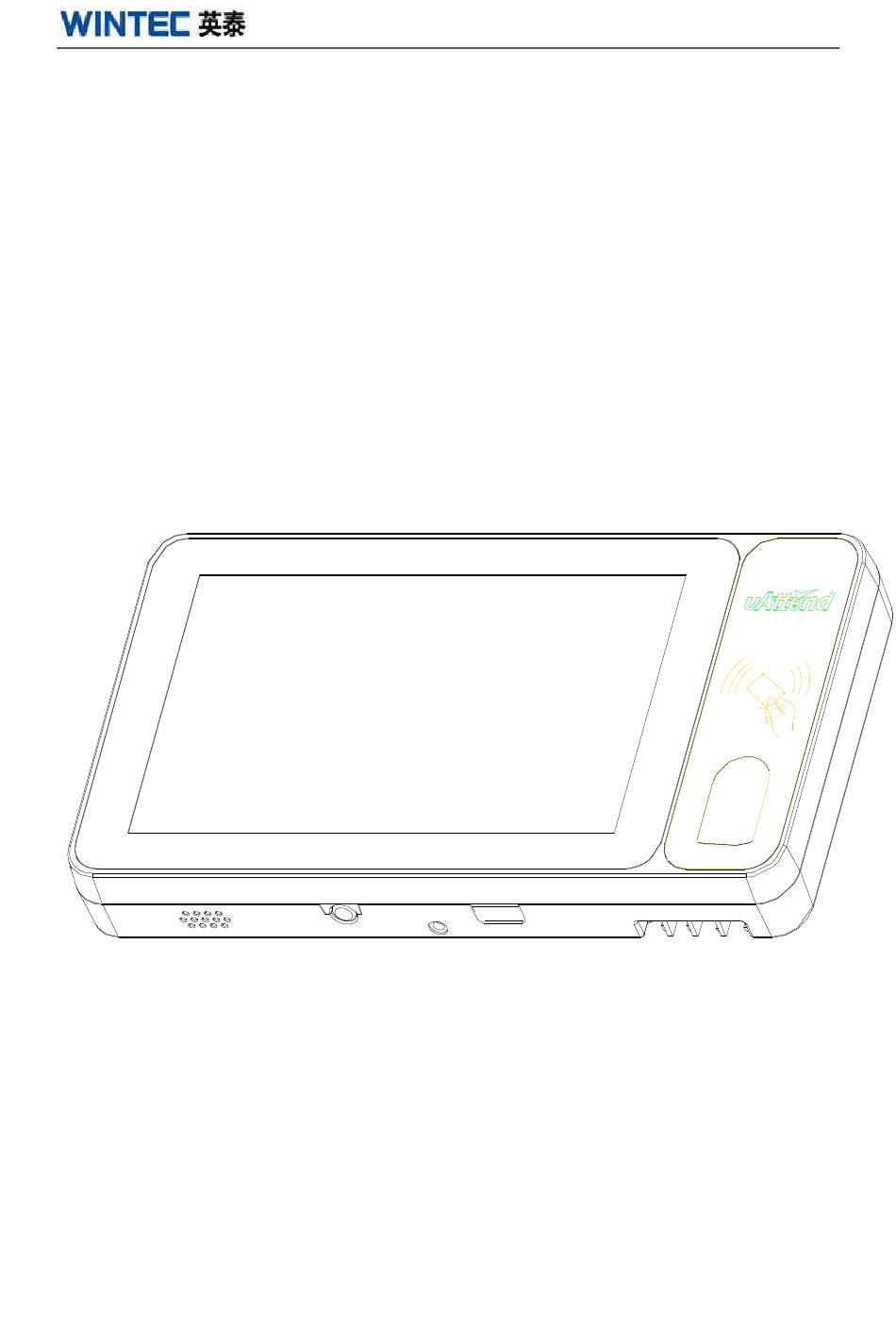

- Page 1 OB1000 OB1000 User Manual QINGDAO WINTEC SYSTEM CO., LTD www.wintec.cn Hotline:400 708 9898...
- Page 2 OS. It is an ideal choice for retail, hospitality and entertainment business etc. Packaging List After unpacking the carton, please check that the following items are included： POS、Adapter、User Manual. If any item is missing or appears damaged, please contact your dealer immediately. www.wintec.cn Hotline:400 708 9898...
- Page 3 OB1000 Outward Diagram Front View DESCRIPTION TFT LCD, Touch screen Front Camera RFID Fingerprint Module www.wintec.cn Hotline:400 708 9898...
- Page 4 OB1000 Back View DESCRIPTION Audio Host Power Button Bracket screw hole Side View DESCRIPTION www.wintec.cn Hotline:400 708 9898...
- Page 5 OB1000 Bottom View DESCRIPTION Bracket mounting position Battery shield Battery Cover Mount bracket Follow the direction of the icon,install the bracket and lock the screw. www.wintec.cn Hotline:400 708 9898...
- Page 6 OB1000 IO Ports www.wintec.cn Hotline:400 708 9898...
- Page 7 When first booting, take out the battery insulating strip . NOTE: Please don’t dismantle the machine without related guide. Please consult your supplier or service provider first if problem can’t be solved. Related technical materials can be download from http://www.wintec.cn. www.wintec.cn Hotline:400 708 9898...
- Page 8 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
