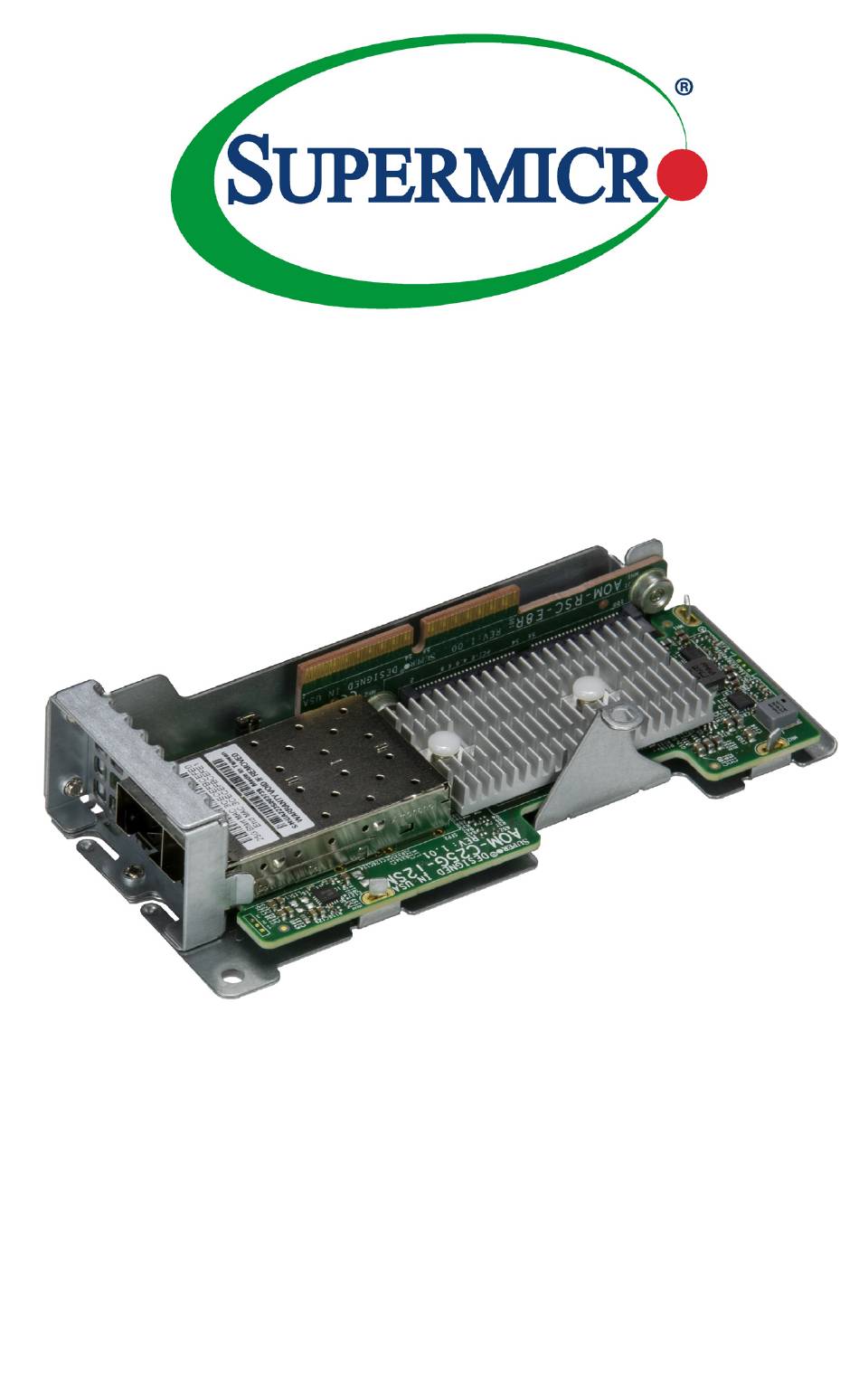

- Page 1 AOM-C25G-i2SM-12 User's Guide Revision 1.0...
- Page 2 Santa Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
- Page 3 It provides information for the installation and use of the AOM-C25G-i2SM-12 package. About this Adapter The AOM-C25G-i2SM-12 25 Gigabit Ethernet Adapter is one of the most compact and scalable 25GbE Ethernet adapters for today’s demanding data center environ- ments. Based on the latest Intel network controller E810-XXVAM2 and with NC-SI ®...
- Page 4 Super AOM-C25G-i2SM-12 Adapter User's Guide Conventions Used in the User's Guide Pay special attention to the following symbols for proper system installation and to prevent damage to the system or injury to yourself: Warning: Important information given to ensure proper system installation or to prevent damage to the components or injury to yourself.
- Page 5 Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML...
-
Page 6: Table Of Contents
Super AOM-C25G-i2SM-12 Adapter User's Guide Table of Contents Preface Chapter 1 Overview Overview ......................1-1 Key Features ....................1-1 Specifications ....................1-1 Parts List ......................1-5 Chapter 2 Hardware Components Adapter Image and Layout ................2-1 Major Components ..................2-2 Connectors ...................... -
Page 7: Chapter 1 Overview
Overview Congratulations on purchasing your adapter from an acknowledged leader in the industry. Supermicro products are designed with the utmost attention to detail to provide you with the highest standards in quality and performance. For product support and updates, please refer to our website at http://www.supermicro.com/... - Page 8 Super AOM-C25G-i2SM-12 Adapter User's Guide • Application Device Queues (ADQ) • Dynamic Device Personalization (DDP) Host Interface • PCIe v4.0 • Backward compatible with PCIe v3.0 • Message Signal Interrupt (MSI-X) Networking Features • Jumbo Packet (9K max) • Teaming •...
- Page 9 Chapter 1: Overview • Geneve • SR-IOV • 768 Virtual Station Interface (VSI) • Eight Physical Functions (PF) • Microsoft VM queue • VMWare NetQueue • DPDK support • QoS: Priority-based flow control (802.1Qbb) • Enhanced Transmission Selection (ETS) (802.1Qaz) Manageability •...
- Page 10 Super AOM-C25G-i2SM-12 Adapter User's Guide • Edge Virtual Bridging - IEEE 802.Qbg Power Saving • ACPI-compliant power management • Pass through Energy Efficient Ethernet (IEEE802.3az-2010) Cables Support • SFP28 Direct Attach Copper (DAC) cables • Fiber-optic cables (with required optional SFP28 transceivers) Power Consumption •...
-
Page 11: Parts List
Chapter 1: Overview Parts List Adapter Part Number Description Adapter AOM-C25G-i2SM MicroLP 2-Port 25GbE SFP28 adapter MicroLP Riser Card for MicroCloud 12 node Riser Card AOM-RSC-E8R MicroLP bracket for MicroCloud 12 node Bracket MCP-240-93913-0N... -
Page 12: Chapter 2 Hardware Components
Chapter 2: Hardware Components Chapter 2 Hardware Components Adapter Image and Layout AOM-C25G-i2SM-12 Image... -
Page 13: Major Components
REV:1.01 SFP2 Intel® E810-XXVAM2 Controller SFP1 JSFP1 JPAUX1 AOM-C25G-i2SM-12 Layout Major Components The following major components are installed on the AOM-C25G-i2SM-12. AOM-C25G-i2SM-12 Major Components Component Name Definition Intel E810-XXVAM2 Ethernet 25GbE LAN controller ® JPAUX1 1-2: Enable AUX Power 3-4: Disable AUX Power (default) -
Page 14: Connectors
Chapter 2: Hardware Components Connectors SFP28 Ports Two SFP28 25GbE adapter ports are located on the adapter. Connect a Direct Attach Copper cable or an LC Fiber-Optic cable to these ports to provide Gigabit Ethernet communication. Refer to the adapter layout on Page 2-2 for the locations of the SFP28 ports. -
Page 15: Chapter 3 Installation
Chapter 3: Installation Chapter 3 Installation Static-Sensitive Devices Electrostatic Discharge (ESD) can damage electronic com ponents. To avoid damag- ing your adapter, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD. Precautions •... -
Page 16: Before Installation
Super AOM-C25G-i2SM-12 Adapter User's Guide Before Installation To install the adapter properly, be sure to follow the instructions below. 1. Power down the system. 2. Remove the power cord from the wall socket. 3. Use industry-standard anti-static equipment (such as gloves or wrist strap) and follow the instructions listed on Page 3-1 to avoid damage caused by ESD. -
Page 17: Installing Drivers (For Intel ® E810-Xxvam2)
Chapter 3: Installation Installing Drivers (for Intel E810-XXVAM2) ® To install both drivers and firmware for the AOC-C25G-i2SM-12 adapter card for either Linux or Windows, please follow the instructions below. Building Driver RPM Package Please follow the steps below to build a binary RPM package for this driver. Note: RPM functionality has only been tested in Red Hat distributions. - Page 18 Super AOM-C25G-i2SM-12 Adapter User's Guide Note: For the build to work properly, the kernel currently running MUST match the version and configuration of the installed kernel sources. If you have just recompiled the kernel, reboot the system before building. 2. After building the RPM, the last few lines of the tool output contain the loca- tion of the RPM file that was built.
- Page 19 Chapter 3: Installation 4. Compile the driver module: # make install The binary will be installed as: /lib/modules/<KERNEL VER>/updates/drivers/net/ethernet/ intelice/ice.ko The installation location listed above is the default location. This may differ for various Linux distributions. Note: To compile the driver with ADQ (Application Device Queues) flags set, use the following command where <nproc>...
- Page 20 Super AOM-C25G-i2SM-12 Adapter User's Guide 7. After verifying that the interface works, enter the following commands where the IP_address is for another machine on the same subnet. Do so when the interface is being tested: # ping <IP_address>...
- Page 21 (Disclaimer Continued) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency com- munication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
