Intermatic EI200 Supplementary Manual

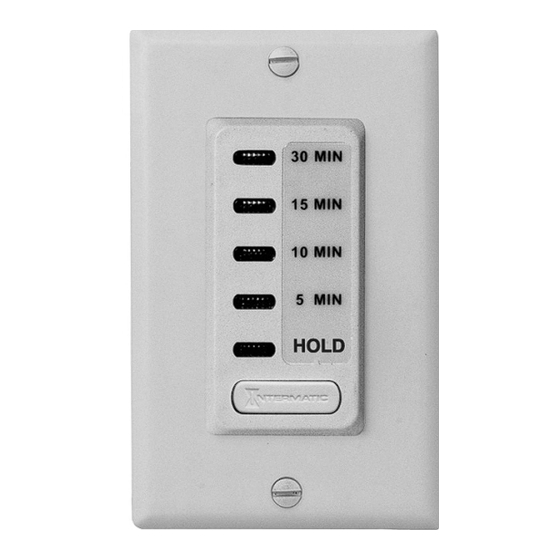

INTERMATIC EI200 ELECTRONIC
IN-WALL COUNTDOWN TIMER
FEATURES:
• 5-10-15-30 - Minute time ranges.
• Continuous HOLD feature.
• Available in White, Ivory, & Light Almond
RATINGS :
15A General Purpose
1000W, Tungsten
1/4 HP Motor
1000 VA, Ballast
125 Vac, 60 Hz
Leads: Black-Line, White-Neutral, Red-Load, Green-Ground
INSTALLATION
1. WARNING: TO AVOID FIRE, SHOCK, OR DEATH, TURN OFF POWER AT CIRCUIT
BREAKER AND TEST THAT POWER IS OFF BEFORE WIRING.
2. Remove wall plate and disconnect light switch. Make sure both "hot" and neutral wires are
present in the junction box. (See Fig. 1.) If both wires are not present, additional wiring will be
necessary before installation can be completed.
3. Connect red timer wire to wire from fixture using
wire connector. Connect black timer wire to the "hot"
(usually black or red) wire in junction box using wire
connector. Cut white wire in junction box (or open
splice) and strip 3/8­­" of insulation on both wires.
Connect white timer wire to white wires in junction
box using wire connector. (See Fig. 2)
4. If the wall switch you are replacing had separate
grounding conductors connected to the GREEN
screw on the switch, make sure to connect these to
the green wire from the timer with a wire connector.
5. Check that all wire connections are secure.
6. Place all wires inside junction box. Fit timer into
junction box. Next, install timer using (2) mounting
screws furnished.
7. Reconnect your electrical power.
OPERATIONS
Timer Mode
To enter timer mode, press and release the push button (for less than 2 seconds) repeatedly to select one of the four time set-
tings or OFF ( 5 minutes - 10 minutes - 15 minutes - 30 minutes - OFF). The illuminated LED
indicates which time setting is selected and the connected load is turned ON. Timer starts counting down until time out is
reached, all 5 LED's go off and the connected load turns OFF.
Hold Mode (Continuous Operation)
To turn timer ON for extended periods of time, press and hold the push button for more than 2 seconds. Timer enters HOLD
mode, HOLD LED turns on, and the connected load is turned ON. To exit HOLD mode press and release the push button, all 5
LED's go off and the connected load turns OFF.
