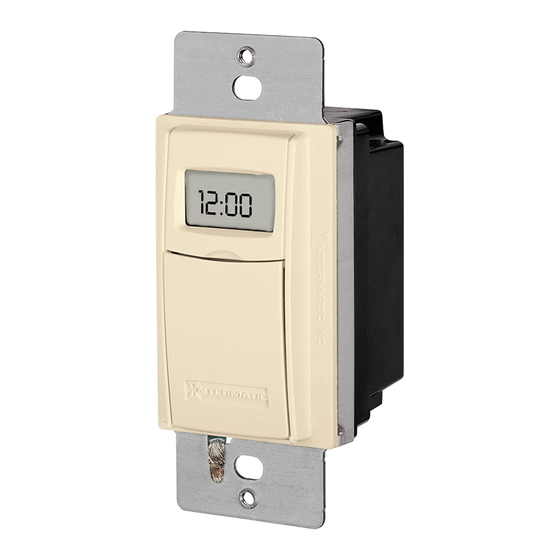

Intermatic ST01A Manual

ST01 Series
Digital In-Wall Timers
The ST01 Series In-Wall Timers are easy-to-program, 4-button
programmable timers that allow up to 40 event settings per week. The
timers have an Astronomic feature for sunrise and sunset switching.
Features
• Easy to program for 24-Hour or 7-Day load control
• Auto Daylight Saving Time adjustment
• CFL/LED compatible
• Astronomic feature provides sunset ON and sunrise OFF settings or
combine Astronomic features with specific timed ON/OFF
programming
• Low battery indicator
• Continuously displays time of day, mode and load status
• CR2 lithium battery provides up to 2+ years of time keeping
without AC power
• Replaces single-pole or 3-way switches in a variety of applications
• Random setting feature available to avoid predictable time
controlled look
• User program selections are stored in non-volatile memory
• Controls all voltage/frequencies with no adjustments required
• No neutral required
• Manual override feature
Not for use with sunlamps, saunas, or loads that could cause
personal injury if timed incorrectly.
Ratings
Switch Ratings:
Resistive:
Tungsten:
Ballast (magnetic):
Motor:
DC Loads:
Dimenisons:
Warranty:
Model Number Switch
ST01
Single-Pole/3-Way*
ST01A Single-Pole/3-Way*
*3-way applications up to 100 feet
15 Amp, 120-277 VAC
15 Amp, 120 VAC
6 Amp, 208-277 VAC
8 Amp, 120 VAC
4 Amp, 208-277 VAC
1 HP, 120 VAC
2 HP, 240 VAC
4 Amp, 12 VDC
2 Amp, 28 VDC
2.75" H x 1.75" W x 1.46" D
Limited 1 year
Manual Override Neutral Required
Yes No
Yes No
ST01 Series
In-Wall Timers
Project:
Location:
Product Type:
Contact/Phone:
Model #:
ST01A
Battery Backup
Yes
Yes
TITLE
LISTED
Color
White
Almond
20
Energy Controls xx
