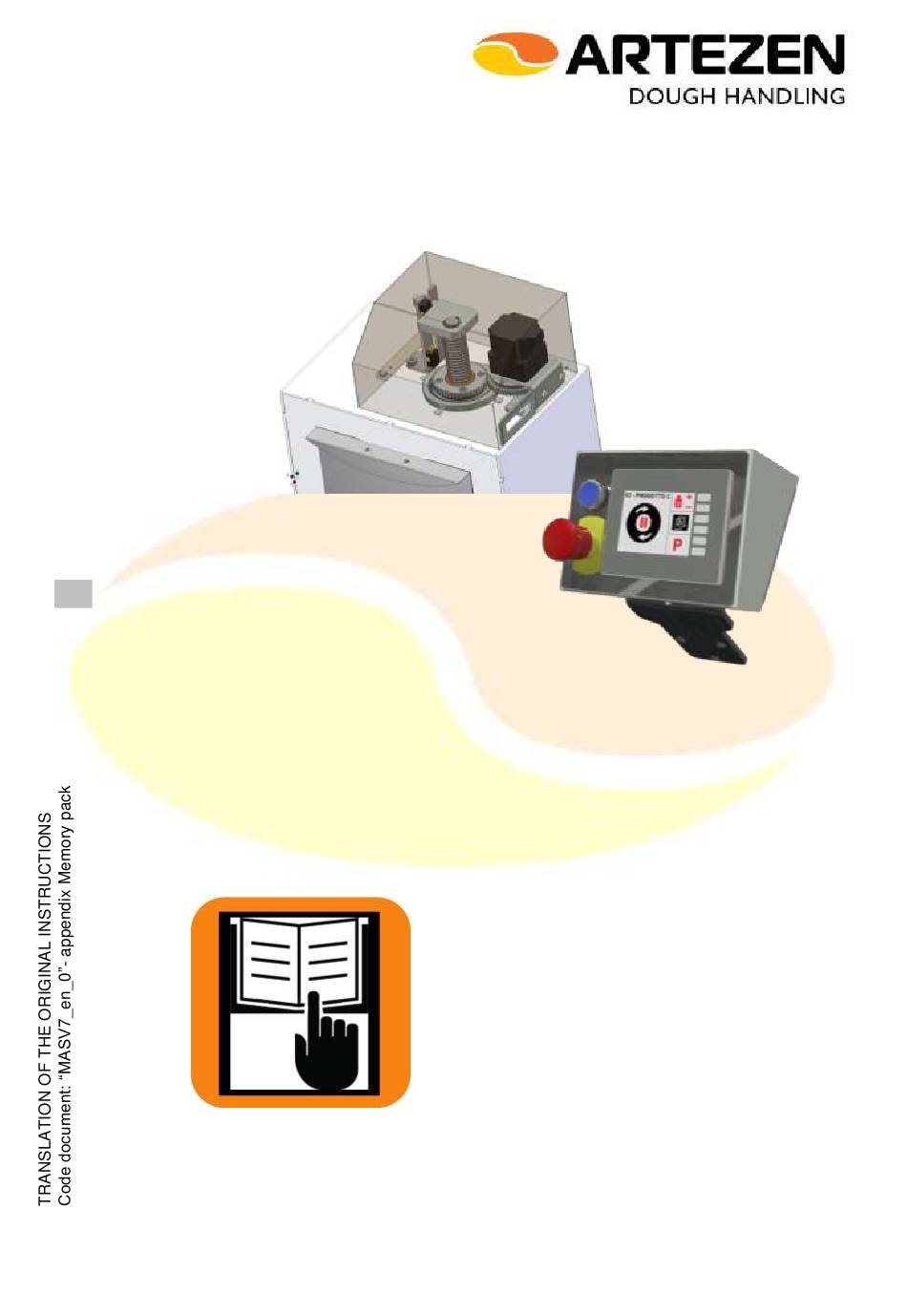

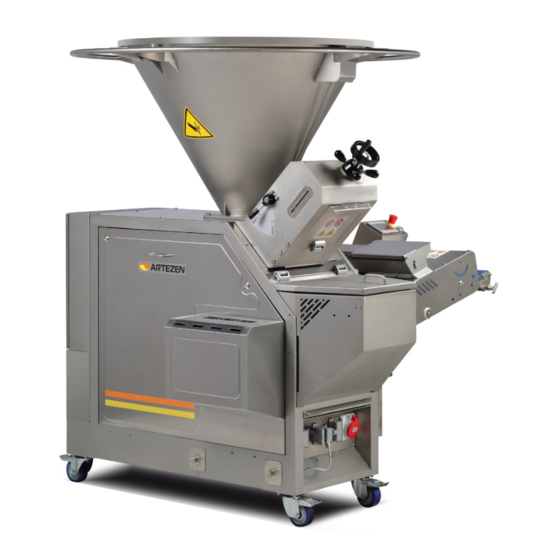

Calybra
"Appendix
Memory Pack"
It's strictly forbidden to even partially reproduce rigor of the law or disclose to third parties the content of this
document
Read this instruction manual carefully before installing and using the machine.
Keep for future reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Calybra and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ARTEZEN Calybra

Summary of Contents for ARTEZEN Calybra

  • Page 1 Calybra “Appendix Memory Pack” It’s strictly forbidden to even partially reproduce rigor of the law or disclose to third parties the content of this document Read this instruction manual carefully before installing and using the machine. Keep for future reference.
  • Page 2 Instruction manual for installation and maintenance VOLUMETRIC DIVIDER Appendix “Memory pack” Sommary GENERALITY General warnings Use of the instruction manual Consult the instruction manual Use of the symbols Recipients of the manual and tasks General rules – Bans Password INSTALLATION Use of the control panel Description of the control panel STATING OPERATIONS...
  • Page 3 This manual is an integral part of the MANUAL FOR USE AND MAINTENANCE of volumetric dividers mod. CALYBRA and CALYBRA L and concerns specifically the use of the controls and the operator of the machine control panel with "Memory Interface Pack" software; Therefore, before you...
  • Page 4 Instruction manual for installation and maintenance VOLUMETRIC DIVIDER Appendix “Memory pack” 1. 4 U se of t h e s y mb o l s To draw the attention of users for the purpose of proper use and safety of the machine, they are adopted in this Manual The following symbols.
  • Page 5 Instruction manual for installation and maintenance VOLUMETRIC DIVIDER Appendix “Memory pack” 1. 6 G en e r a l r u le s – B a ns For employees governed by the following prohibitions: The machine must not be operated with different parameters from those set by the manufacturer and determined by the purchase contract.

  • Page 6: Installation

    Instruction manual for installation and maintenance VOLUMETRIC DIVIDER Appendix “Memory pack” 2 INSTALLATION 2. 1 U se of t h e c on tr o l p an e l The digital control panel "touch screen" to be used by pressing lightly with the tip of your fingers, close to the icon corresponding to the various functions that gradually the panel proposes, subject to availability of operations that can be enabled in the state in which the machine is located in that moment.
  • Page 7 Instruction manual for installation and maintenance VOLUMETRIC DIVIDER Appendix “Memory pack” 3 STATING OPERATIONS 3. 1 Pr e li m i n ar y o p er a ti on s Press the “RESET” button to starting up the machine, the HOME screen will appear. Name Button “EDIT”...
  • Page 8 Instruction manual for installation and maintenance VOLUMETRIC DIVIDER Appendix “Memory pack”  A horizontal scroll bar will help provide guidance on the status of the loading of the work program: once the load is the colored bar, assotigliatasi to the right, it will stop and it will appear the following picture Button Enable button...
  • Page 9 Instruction manual for installation and maintenance VOLUMETRIC DIVIDER Appendix “Memory pack” 3. 2 St a rt o f t he w or k a nd h a nd l in g Press “START” start selected program The machine will start and the display will show the following picture Pag.
  • Page 10 Instruction manual for installation and maintenance VOLUMETRIC DIVIDER Appendix “Memory pack” ADJUSTMENT OF THE DIVIDING WEIGHT Press “Button adjustment” “-” Press “+” Press reduce 5 grams. increase grams. Pag. 10/25...
  • Page 11 Instruction manual for installation and maintenance VOLUMETRIC DIVIDER Appendix “Memory pack” ADJUSTMENT SPEED CAPACITY Button adjustment speed capacity “-” Press “+” Press decrease increase speed capacity speed capacity of the machine of the machine Alternatively horizontally sliding the slider to change the speed of work Pag.
  • Page 12 Instruction manual for installation and maintenance VOLUMETRIC DIVIDER Appendix “Memory pack” ADJUSTMENT OF THE SPLITTED SPEED OUTFEED BELT Button adjustment splitted outfeed belt “-” Press “+” Press decrease increase speed speed outfeed splitted outfeed splitted Alternatively horizontally sliding the slider to change the speed of work Pag.
  • Page 13 Instruction manual for installation and maintenance VOLUMETRIC DIVIDER Appendix “Memory pack” 3. 3 Sto r a ge p ro g r am Stop the machine pressing “START/STOP” button, than press the “SAVE” button. Press “SAVE” to save Click into the field “PASSWORD”...
  • Page 14 Instruction manual for installation and maintenance VOLUMETRIC DIVIDER Appendix “Memory pack” Click “ESC” “Y” “N” Click Click save it don’t save it Click onto the ‘disk’ icon complete saving process Pag. 14/25...
  • Page 15 Instruction manual for installation and maintenance VOLUMETRIC DIVIDER Appendix “Memory pack” 3. 4 Ch a n ge t h e p r og r a m Press the button “START/STOP” to stop the machine, until watch the picture below Press “List programs”...
  • Page 16 Instruction manual for installation and maintenance VOLUMETRIC DIVIDER Appendix “Memory pack” 3. 5 Ed it a nd st or e a n e w p ro g r am Select a program already stored do modify or a new empty program, than press “EDIT”...
  • Page 17 Instruction manual for installation and maintenance VOLUMETRIC DIVIDER Appendix “Memory pack” Click “ESC” Digit “NAME PROGRAM” Use the Use the alphanumeric keypad to type the "PROGRAM NAME" BS=Backspace (delete last character) ««=Move the cursot to the left »»=Move the curson to the right ENTER=Confirm it Pag.
  • Page 18 Digit weigt parameter, that tollerance should (grams) over the nearly “1” nominal weight, that will In the case of Calybra combined with Weight checker "Lybra" automatic adjustment on the weight Digit the weigt connected with tollerance weight checker (grams) below ‘Lybra’...

  • Page 19: Emergency Stop

    The devices that stop in emergency situation the machine, are the following:  “EMERGENCY Pressing STOP BUTTON”;  Pressing of the safety ring on the ede of the hopper;  Thermal alarm protection of the electrical motors.  Opening of the frontal door (just for “Calybra L” version); Pag. 19/25...
  • Page 20 Instruction manual for installation and maintenance VOLUMETRIC DIVIDER Appendix “Memory pack”  Pressing safety bar on he zone of the exit belt (just for “Calybra L” version);  Overheating of the hydraulic oil: the machine works but at lower speed to reduce the heating of the oil.
  • Page 21 Instruction manual for installation and maintenance VOLUMETRIC DIVIDER Appendix “Memory pack” NOTE! The emergency stop the machine immediately stops the machine, even interrupting the power supply to the control system of movements: this procedure therefore requires full charge of the program, preceded by a series of automated unloading of the dough may be present inside the weight chamber.
  • Page 22 Instruction manual for installation and maintenance VOLUMETRIC DIVIDER Appendix “Memory pack” 3. 7 Se t- up i nt e r n a l p a r am et e rs Click onto the icon “SERVICE” to access it  Press “SERVICE” and digit the password Digit ”511”...
  • Page 23 Instruction manual for installation and maintenance VOLUMETRIC DIVIDER Appendix “Memory pack” Pag. 23/25...
  • Page 24 Instruction manual for installation and maintenance VOLUMETRIC DIVIDER Appendix “Memory pack” 01÷04= Coefficient pulses comparison / moving for different construction versions; 05÷07=Speed limits machine; 08÷09=Minimum Weight limits Calybra 1.5 Pag. 24/25...
  • Page 25 Buttons status Artezen Srl - Via Lago di Tovel, 14 - 36015 Schio (VI) - Italy Tel. +39 0445 577495 info@artezen.eu www.artezen.eu Dati tecnici e fotografie si intendono forniti solo a titolo indicativo e non ci impegnano sulle eventuali modifiche che potranno essere apportate.
