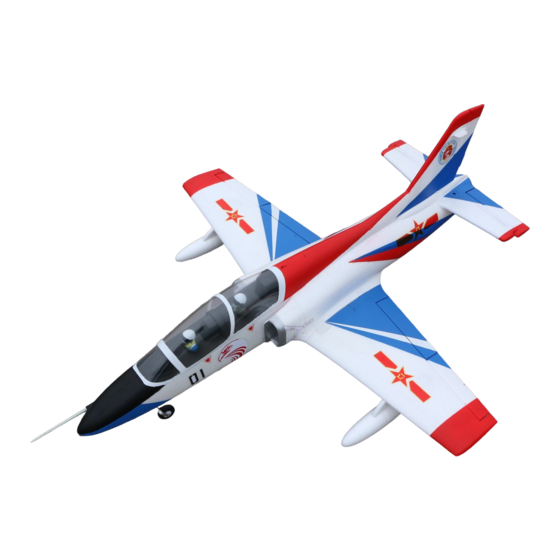

K-8 Karakorum Jet Trainer
64mm EDF RC JET
SPECIFICATIONS
Wingspan: 930mm
Length: 1026mm (without pitot tube)
Dry weight: 530g
Flying weight: 1150g (Full loading)
Wing loading: 72.6g/dm²
4S Version: 2200-2600mAh 4S Lipo; 6S Version: 2200-4200mAh 6S Lipo.
KIT
Shock Absorber
KIT
Landing Gear
9g Servo x 8 (Installed)
RECOMMENDED BATTERY
KIT TYPE
KIT + Servos
KIT
9g Servo x 8 (Installed)
40A ESC x 1 (Installed)
4S: 2840-3200KV 64mm EDF (Installed)
6S: 2840-2300KV 64mm EDF (Installed)
ELECTRONIC
Power System: 6S/4S 64mm EDF x 1
ESC: 40A ESC x 1
Servos: 9g servos x 8
Battery: 6S/4S Lipo
Radio: 6 Channel TX and RX
PNP
Advertisement
Related Manuals for FLYFANS K-8 64MM EDF JET 4S
Summary of Contents for FLYFANS K-8 64MM EDF JET 4S

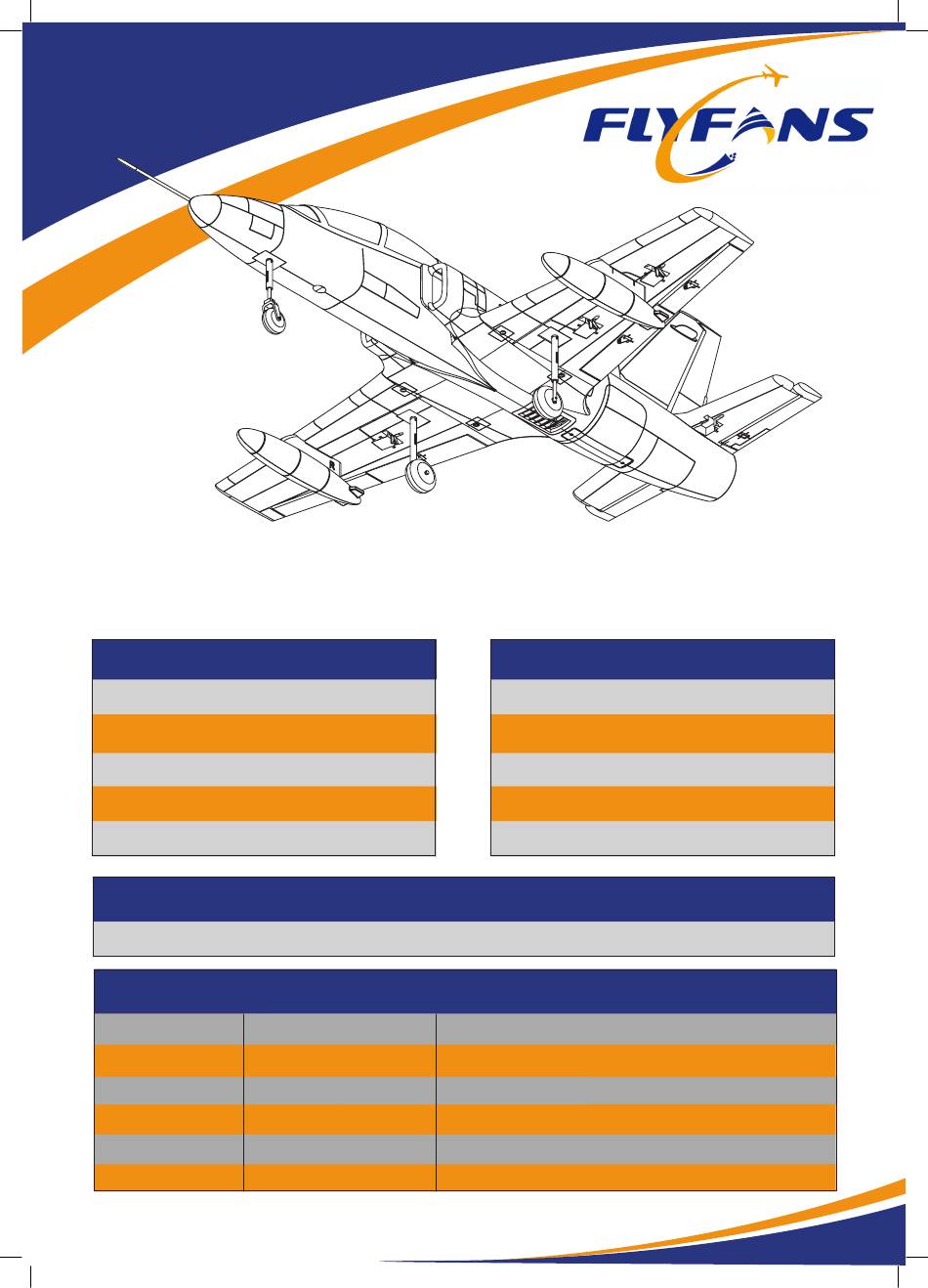

- Page 1 K-8 Karakorum Jet Trainer 64mm EDF RC JET SPECIFICATIONS ELECTRONIC Wingspan: 930mm Power System: 6S/4S 64mm EDF x 1 Length: 1026mm (without pitot tube) ESC: 40A ESC x 1 Dry weight: 530g Servos: 9g servos x 8 Flying weight: 1150g (Full loading) Battery: 6S/4S Lipo Wing loading: 72.6g/dm²...
-
Page 2: Contents Of Kit
CONTENTS OF KIT 1. Fuselage*1 9. Landing Gear L*1 16. Front Wheel Pushrods*1 2. Left Wing*1 10. Landing Gear R*1 17. Screws for wings*4 (Silver) 3. Right Wing*1 11. Drop Tank Pylon * 2 18. Screws for Tailplane*2 (Silver) 4. Tailplane*1 19. -
Page 3: Model Assembly
Model Assembly Tailplane Servo Set 9g servo to neutral point and screw on Servo arm. Glue the servo into the slot on the Hori- zontal Stabilizer. Suggested cable length is 15cm. Caution: Require 1 normal and 1 reverse 9g Servo. 2. - Page 4 Same procedure with the orther Wing. Rudder Servo Set 9g servo to neutral point and screw on Servo arm. Glue the servo into the slot on the Rudder. Ajust pushrods length then link the Servo arm and Control horn. Caution: We suggest use the 2nd holes on Servo arm.
- Page 5 9. Install Horizontal Stabilizer onto fuselage. Tighten the screws with 2.5mm hexagon key. EDF & ESC 10. Install ESCs into the ESC compartment and connect ESCs to EDFs. Do a test to make sure the power system work- ing properly. 11.
- Page 6 EDF & ESC 13. Install landing gear onto the base. Make sure the Scale 像真 spring face forward. For a scale looking, wheels suppose facing inside; But outside facing installation would be beneficial for taxiing stability. 稳定 Stable 14. Insert steering shaft into front landing gear and fix with screw.
- Page 7 Main Wing 16. Insert carbon spar into fuselage. Connect cables as per tag. 17. Install both wings and secure with screws. Accessories 18. Slide both Drop Tanks into rails. Install Pitot tube onto Nose cone. Caution! This Pitot tube made of hard material, strictly for display purpose only.
- Page 8 Flight Setup Check the C.G. The Center of Gravity (CG) location is 63mm from the leading edge of the main wing (as shown) with the battery pack installed. The center of gravity can be adjusted by moving the battery forward or aft. Model Setup Model Setup We recommand dual rate setting for better flying experience.
