Summary of Contents for YANGZI YZ-X5

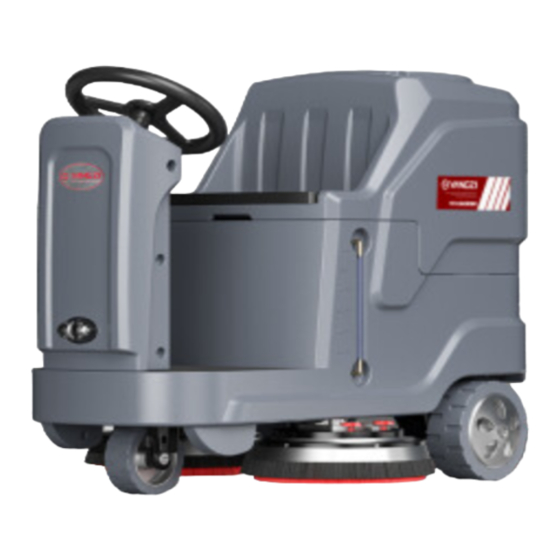

- Page 1 YZ-X5 Floor Scrubber operation instructions...
- Page 2 YZ-X5 Yangzi.Make cleaning easier...
-
Page 3: Table Of Contents
YZ-X5 Content Content......................1 Chapter 1 Description................3 Chapter 2 Use of the Machine..............4 Chapter 3 Routine Maintenance and Disassembly and Replacement of Wearing Parts..................8 Chapter 4 Analysis Table of Common Problems of Floor Scrubber.13 Chapter 5 Maintenance................14 Warranty card..................15... - Page 4 YZ-X5 Parts Armrest ② Lift rocker ③ Water level gauge ④ Left brush ⑤ Recovery tank cover ⑥ Wastewater tank ⑦ Sewage discharge pipe ⑧ Hinge ⑨ Clean water tank ⑩ Suction pipe ⑪ Squeegee ⑫ Sewage outlet ⑬ Center control panel ⑭...
-
Page 5: Chapter 1 Description
YZ-X5 Chapter 1 Description 1.1 Content and Purpose The following content points out potentially dangerous situations, please read these instructions carefully and take necessary precautions. The essence of this machine operating manual is to prevent injuries, and most accidents are caused at work by not heeding basic safety rules. -
Page 6: Chapter 2 Use Of The Machine
YZ-X5 ●Even if the machine is to be dismantled and scrapped, someone should be there to pay attention. Because some harmful substances (such as batteries, waste oil, etc.) have met the standards, they should be sent to a specific center for processing. - Page 7 YZ-X5 Please charge when the voltage is lower than 21V) ●Power switch (start this switch, the device is powered on) ●Water suction button (start this button, the suction motor starts to work) ●Brushing button (start this button, the brushing motor starts to work) ●...
- Page 8 YZ-X5 Before using the machine, close the water valve, and pour clean water into the water tank. Pay attention to the clean water quality to prevent the waterway from being blocked. ●When the machine is used to clean the epoxy floor, it is necessary to replace the ordinary brush plate with the needle plate and add a cleaning pad for cleaning, which can effectively protect the ground from wear and tear.
- Page 9 YZ-X5 Start the machine Step 1: Pull down the left and right lift handles and put down the squeegee head; Step 2: Pull down the right lift handle and put down the scrubbing plate; Step 3: Turn on the main power switch, start the brush switch button and the water suction motor switch button.
-
Page 10: Of Wearing Parts
YZ-X5 ● After the operation in winter, please drain the clean water tank in time to avoid freezing and affect the reuse. Sewage tank discharge sewage ●Turn off the main power to ensure that the machine stops; ●Open the cover of the sewage pipe and discharge the water;... - Page 11 YZ-X5 ● Park the machine on a flat ground and put down the scrubber; ●Rotate the plastic handle counterclockwise to remove the water retaining strip brush; ● Lift up the scrubbing brush plate, grab the bristles, lift it up slightly, shake it left and right, and the brush plate can be removed;...
- Page 12 YZ-X5 Step 2: Attach Plastic Assembly to Squeegee Cast Aluminum Base Plate; Step 3: Align the holes of the rear rubber strip with the plastic components of the squeegee to the protrusions; Step 4: Use both ends of the bead to snap together;...
- Page 13 YZ-X5 3.5 Maintenance and disassembly of suction motor ●After the daily use of the machine, please discharge the sewage from the sewage tank in time to prevent the water level from being too high, being sucked into the suction motor and burning the motor.
- Page 14 YZ-X5 Controller Troubleshooting Instructions Controller LED Fault description possible reason flashes Flash 1 time low voltage fault Battery voltage is too low Flashes 2 times in a Motor open Motor wiring is open circuit fault Blink 3 times in a Overcurrent/Mot 1.
- Page 15 YZ-X5 3.7 Disassembly and assembly of solenoid valve and filter ●Filter disassembly: The filter is located on the right side of the front wheel of the machine. After using for a period of time, if it is found that the water output of the machine is small or there is no water, most of the reasons are that the filter particles are blocked by impurities.
-
Page 16: Chapter 5 Maintenance
YZ-X5 service center Motor carbon brush wear Please contact the service center fan not working Suction motor noise is too Please contact the loud service center Suction motor burned out Replace the suction motor carbon brush wear Please contact the... -
Page 17: Warranty Card
YZ-X5 Main brush and drive system motor carbon brush inspection and replacement Warranty Warranty is not covered under the following conditions of use: ● Failure to perform maintenance in accordance with the maintenance manual may result in mechanical damage or failure. - Page 18 YZ-X5 4. During the warranty period, users who do not follow the operating instructions or those who dismantle and repair by themselves will not be covered by the warranty (if repair is required, a cost will be charged); 5. The buyer can go to the designated point of the seller for maintenance with the invoice, or send the machine back to our company for repair (return freight and insurance premiums are paid by themselves).
