swimmax 07iPS User And Service Manual page 21

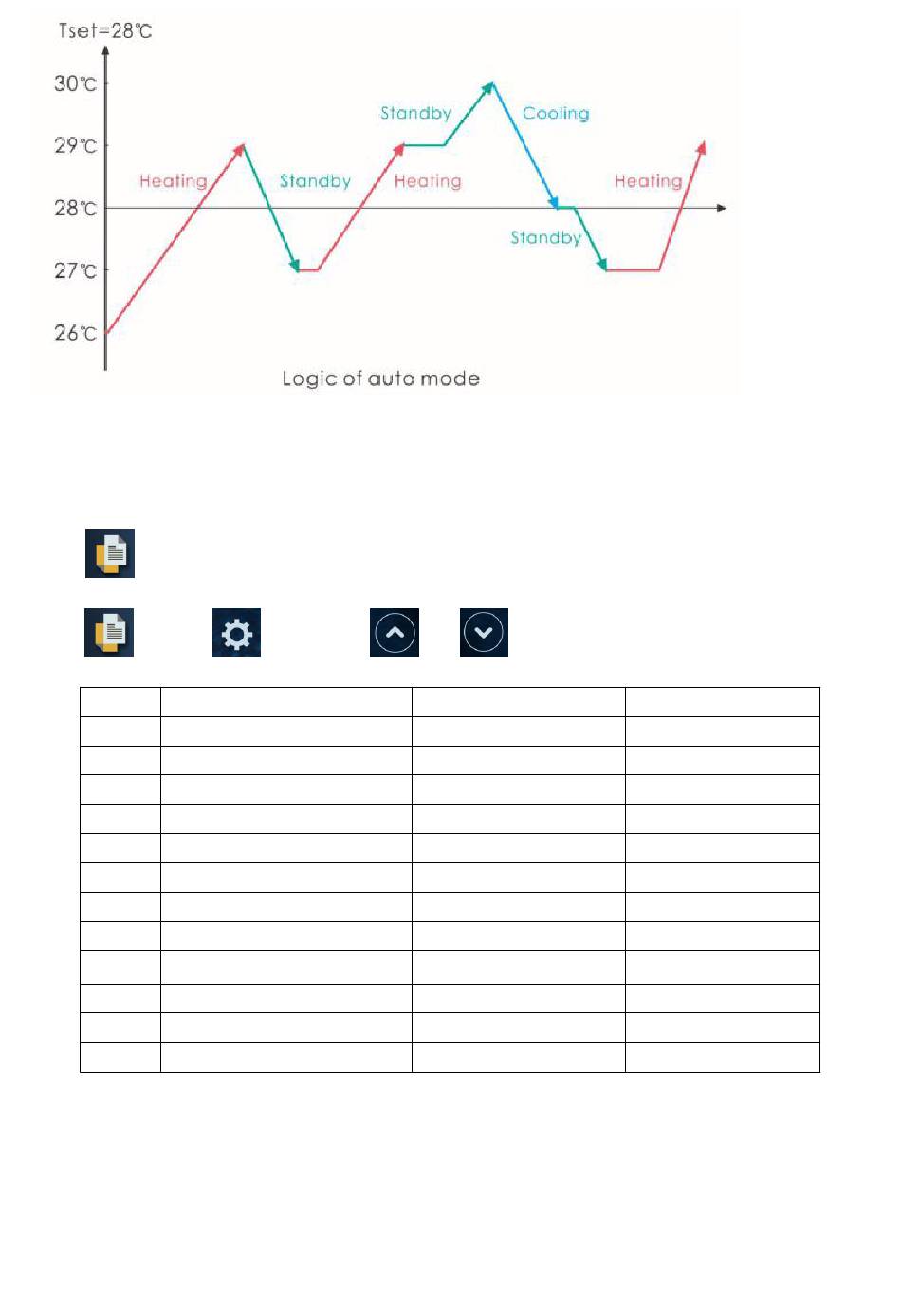

7.2.6 Parameter checking
Select and press
Code
d0 IPM mould temperature
d1 Inlet water temp.
d2 Outlet water temp.
d3 Ambient temp.
d4 Frequency limitation code
d5 Piping temp.
d6 Gas exhaust temperature
d7 Step of EEV
d8 Compressor running frequency
d9 Compressor current
d10 Current fan speed
d11 Error code for last time
Remark:
d4:Frequency limitation code,
0: No frequency limit;
2: Overheating or overcooling frequency limit; 4:Drive Current frequency limit;
8:Drive voltage frequency limit;
to enter, press
Condition
1:Coil pipe temperature limit;
16:Drive high temperature frequency limit
and to check d0-d11 value.
Scope
0-120℃
-9℃～99℃
-9℃～99℃
-30℃～70℃
0,1,2,4,8,16
-30℃～70℃
0℃～C5℃ (125℃)
0～99
0～99Hz
0～30A
0-1200 (rpm)
All error code
- 19 -
Remark
Real testing value
Real testing value
Real testing value
flash if Real value<-9
Real testing value
flash if Real value<-9
Real testing value
N*5
Real testing value
Real testing value
Real testing value
