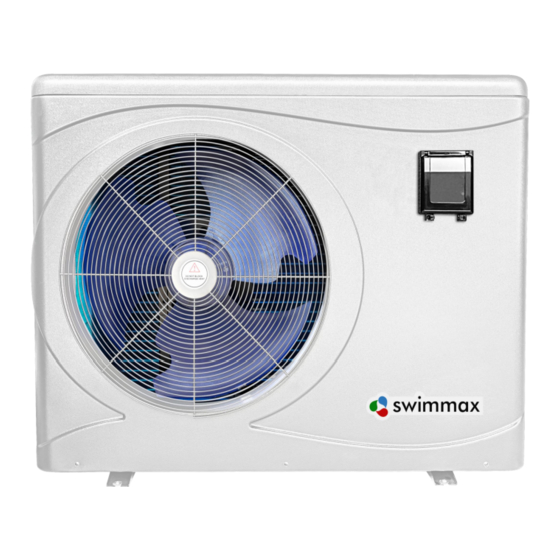

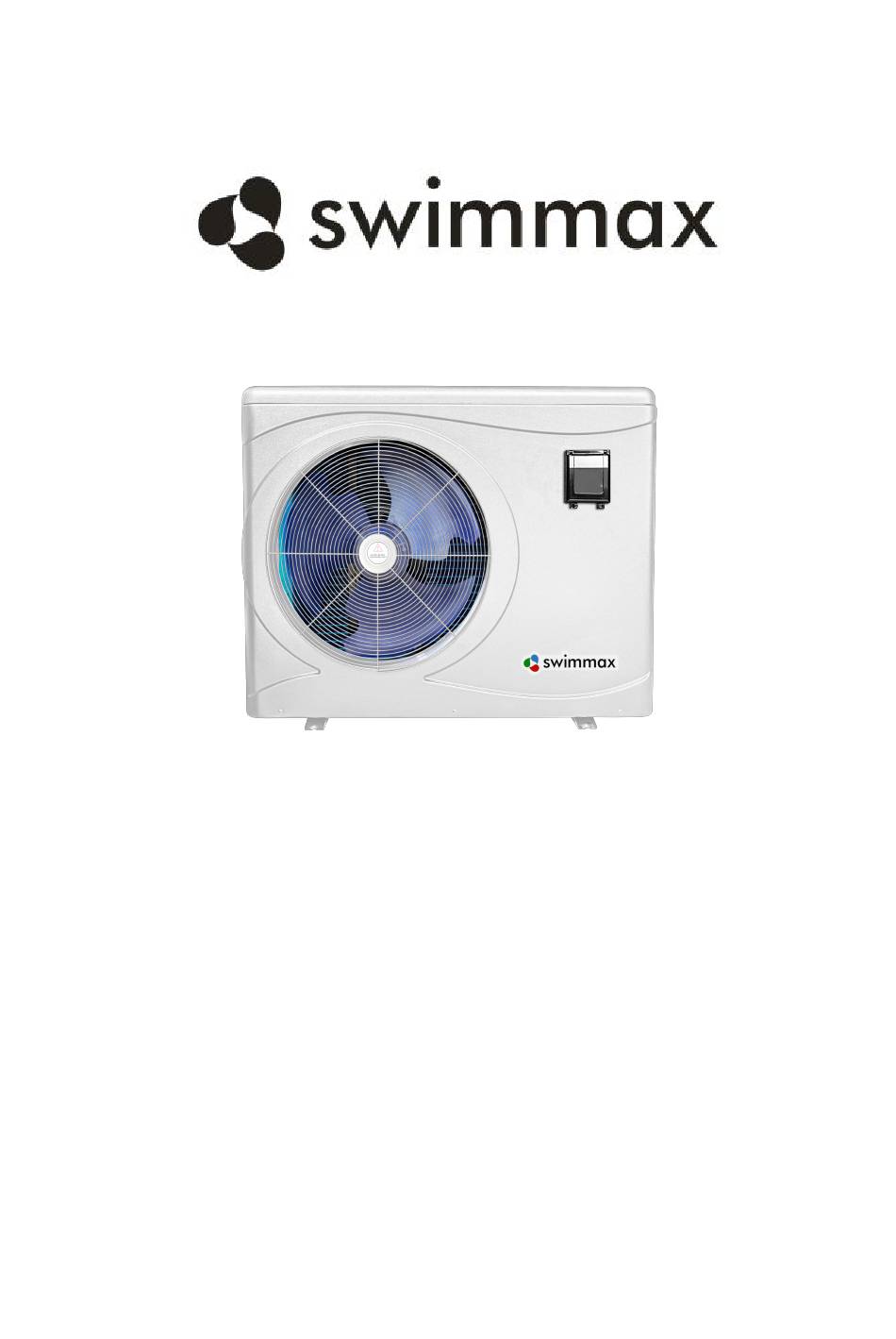

- Page 1 Swimming Pool Heat Pump User and Service Manual...
- Page 2 INDEX 1. Specifications 2. Dimension 3. Installation and connection 4. Accessories 5. Electrical wiring 6. Display controller operation 7. Running data setting 8. Troubleshooting 9. Exploded diagram 10. Maintenance ATTENTION: This manual includes all the necessary information regarding the use and the installation of your heat pump.
- Page 3 1. Specifications CE Standard, R32, ABS Cabinet MODEL Swimmax 07 Swimmax 09 Swimmax 13.5 * Performance at Air 28°C. Water 28°C. Humidity 80% 13.5 Heating capacity 1.34 1.70 2.33 Power consummation * Performance at Air 24℃, Water 26℃, Humidity 70% 7.35...
- Page 4 2. Dimensions 2.1 Model: Swimmax 07 / Swimmax 09 2.2 Model: Swimmax 13.5 - 3 -...
- Page 5 3. Installation and connection 3.1 Notes Upon purchase you will receive your complete Heat Pump. All other components, including a bypass if necessary, must be provided by the user or the installer. Attention: Please observe the following rules when installing the heat pump: 1.
- Page 6 3.3 Distance from your swimming pool The heat pump is normally installed within a perimeter area extending 7.5 m from the swimming pool. The greater the distance from the pool, the greater the heat loss in the pipes. As the pipes are mostly underground, the heat loss is low for distances up to 30 m (15 m from and to the pump;...
- Page 7 3.5 Typical arrangement Note: This arrangement is only an illustrative example. 3.6 Adjusting the bypass Use the following procedure to adjust the bypass: 1. Valve 1 wide open. Valve 2 & valve 3 closed. 2. Slowly open valve 2 & valve 3 by To pool From pool half, then close the valve 1 slowly to...
- Page 8 3.7 Electrical connection Note: Although the heat pump is electrically isolated from the rest of the swimming pool system, this only prevents the flow of electrical current to or from the water in the pool. Earthing is still required for protection against short-circuits inside the unit. Always provide a good earth connection.
- Page 9 Time delay: The heat pump has a built-in 3-minute start-up delay to protect the circuitry and avoid excessive contact wear. The unit will restart automatically after this time delay expires. Even a brief power interruption will trigger this time delay and prevent the unit from restarting immediately. Additional power interruptions during this delay period do not affect the 3-minute duration of the delay.
- Page 10 4.2 Accessories installation Anti-vibration bases 1. Take out 4 Anti-vibration bases 2. Put them one by one on the bottom of machine feet like the picture. Draining jet 1. Install the draining jet under the bottom panel 2. Connect with a water pipe to drain the water.
- Page 11 Water pump wiring 1. With the connector 1 and 2 you can pilot the water filtration through the timer of the filtration (dry contact) 4.3 Connection to pilot the water pump Dry contact timer connection Dry contact pump connection - 10 -...
- Page 12 5. Electrical Wiring 5.1 Electrical wiring diagram Model Swimmax 07 / Swimmax 09 - 11 -...
- Page 13 Model Swimmax 13.5 NOTE: (1)Above electrical wiring diagram is only for your reference, please consult the manufacturer for repair advice. (2)The swimming pool heat pump must be connected to earth, although the units heat exchanger is electrically isolated from the rest of the unit. Grounding the unit is still required to protect you against short circuits inside the unit .Bonding is also required.
- Page 14 5.2 Installation of the display Photo (1) Photo (2) Photo (3) - Disassembling of and degrafage control board of the connector (photo1) - Installation of the provided cable (photo 2) - To pass the cable by the press pack (photo 3) and to connect the sons directly 6.
- Page 15 On standby or running mode, press , then press to adjust hour/minute. Then press the again to store the new data. When setting the time, cannot work. 6.5 Water temperature setting: On standby or running mode, press to adjust the desired water temperature Note : the heat pump can running only if the water circle/filtration system is running.
- Page 16 7. Running data setting 7.1 How to check the parameters On standby or running mode, long press for 10 seconds, then press to check the parameters (from 0 to H, see operation parameter table). 7.2 How to adjust the parameters (Can only adjust on standby mode) 1) Long press for 10 seconds, press again to select the data (from 0 to L, see operation...
- Page 17 Please kindly noted: A) Press “MODE” to choose mode (Mode only be changed for “1” or “2” setting of parameter 6) B) Mode can be changed while running C) Auxiliary electrical heating is not applicable to these modes. - 16 -...
- Page 18 7.3 How to know the current status - 17 -...
- Page 19 Parameter Meaning Range Default Remarks To set the entering water temp. Adjustable 15-35℃ 28℃ under cooling mode To set the entering water temp. 15-40℃ 28℃ Adjustable under heating mode Entry into defrosting time period 30-90MIN 40MIN Adjustable Terms of Entry defrosting function Adjustable -30℃to0℃...
- Page 20 8.Troubleshooting 8.1 Error code display on controller Malfunction Error code Reason Solution Inlet water temperature The sensor in open or short Check or change the sensor sensor failure circuit Outlet water temperature The sensor in open or short Check or change the sensor sensor failure circuit Heating condenser sensor...
- Page 21 8.2 Other Malfunctions and Solutions (no display on LED controller) Malfunctions Observing Reasons Solution LED controller shows Check cable and circuit No power supply no display. breaker if it is connected LED wire controller. Heat pump under standby Startup heat pump to run. displays the actual time.
- Page 22 9.Exploded Diagram 9.1 Model: Swimmax 07 / Swimmax 09 - 21 -...
- Page 23 Model: Swimmax 07 / Swimmax 09 Name of parts Name of parts Ambient temp. sensor clip Low pressure switch Ambient temp. sensor 4-way valve coil Evaporator 4-way valve to exchanger Top frame Capillary Pillar Exchanger to capillary Fan motor bracket...
- Page 24 Model Swimmax 13.5 - 23 -...
- Page 25 Model Swimmax 13.5 Name of parts Name of parts Evaporator 4-way valve coil Top frame Four-way valve Pillar High pressure switch Evaporator bracket Pipe Fan motor bracket Low pressure switch Fan motor Gas return piping Fan blade 4-way valve to exchanger...
- Page 26 10. Maintenance (1) You should check the water supply system regularly to avoid any air entering the system and occurrence of low water flow, because it would reduce the performance and reliability of HP unit. (2) Clean your pools and filtration system regularly to avoid damage of the unit as a result of a clogged/dirty filter causing reduction in water flow.
- Page 28 A0207PHP03...
