4.3 Accessories Installation

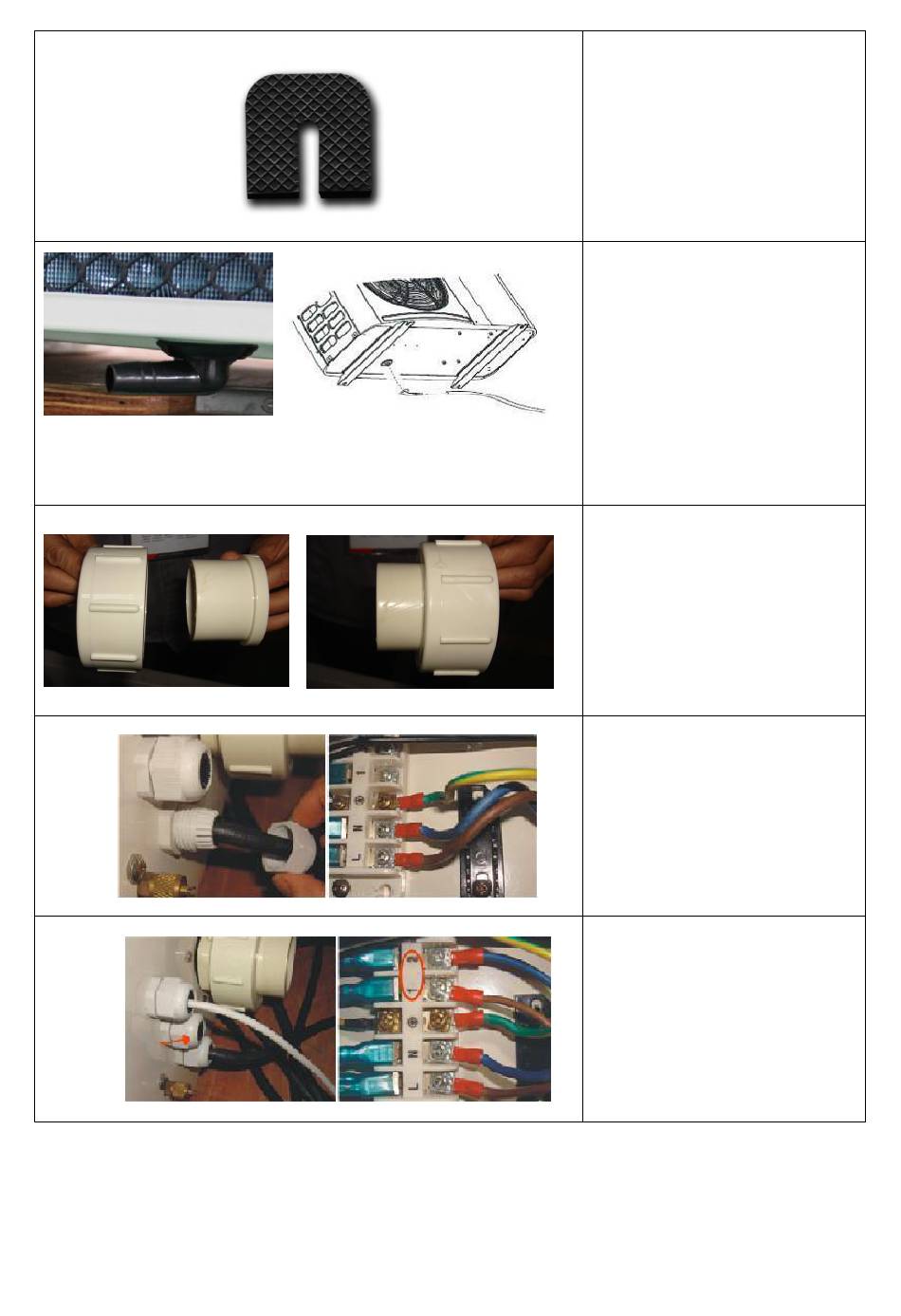

Anti-vibration bases
1. Take out 4 Anti-vibration bases
2. Install them on the bottom of
machine.
Draining plug
1. Install the draining plug under the
bottom panel
2. Connect with a water pipe to drain
out the water.
Note: Lift the heat pump to install
the draining plug. Never overturn the
heat pump, it could damage the
compressor.
Water Inlet & outlet connection
1. Install the two joints like the
picture shows
2. Screw them onto the water Inlet &
outlet connection
Mains Cable wiring
1.Connect the power supply wire
through the white hole like the
picture shows.
2.Fix the other side on joints inside
the electric box.
Water pump wiring
1.Connect the water pump wire
through the white hole marked
2.Fix the other side on joints inside
the electric box.
