IMPORTANT:

1. Neutral must always be connected to the WHITE lead of the control.

2. Grounding conductors are not shown but must be provided.

AUX. PULSE

AIR SWITCH

AIR HOSE

CONNECTION

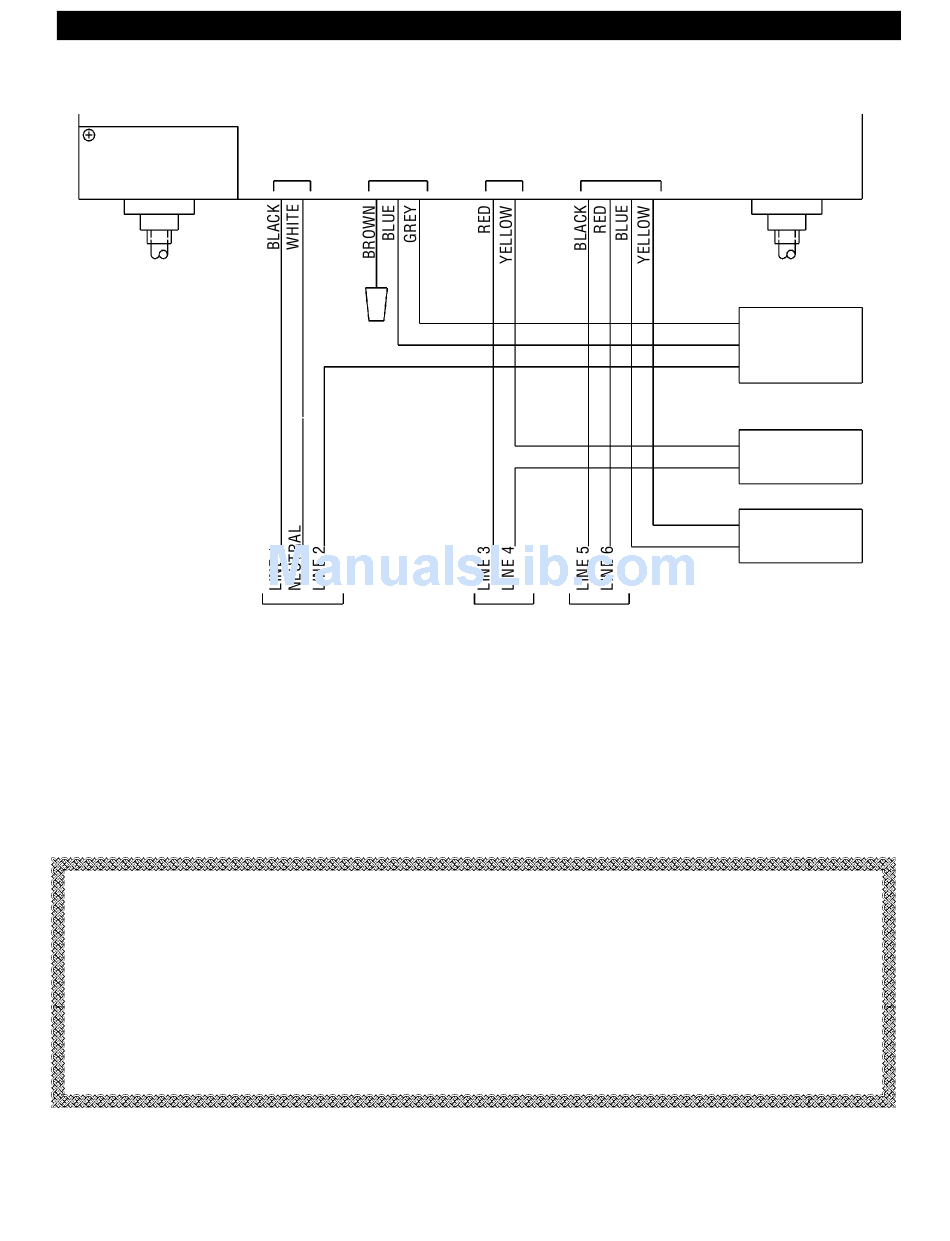

240V 2 - SPEED PUMP WITH TIMER, 240V BLOWER AND AUX. CIRCUIT.

240V SINGLE SPEED PUMP: Connect both BLUE and GREY leads to LOAD 1 of pump.

120V TWO SPEED PUMP: Connect NEUTRAL to WHITE leads of control and pump.

120V SINGLE SPEED PUMP: Connect both BLUE and GREY leads to load (black lead)

of pump and connect NEUTRAL to WHITE leads of control and pump.

120 V BLOWER: Substitute NEUTRAL for LINE 4.

FREEZE PROTECTION: (IF REQUIRED) Connect LINE 1 and BROWN lead to thermostat.

NOTE: Brown lead if not used must be permanently capped.

If within the warranty period specified, this product fails due to a defect in material or workmanship, Intermatic Incorporated will repair or replace

it, at its sole option, the unit free of charge. This warranty applies only to the original purchaser and is not transferable. This warranty does not apply

to: (a) damage caused by accident, abuse, mishandling, dropping, acts of God, or any negligent use; (b) units which have been subject to unautho-

rized repair, opened, taken apart, or otherwise modified; (c) units not used in accordance with instructions; (d) damages exceeding the cost of the

product. Some states do not allow a limitation of damages, so the foregoing limitation may not apply to you. This warranty gives you specific legal

rights and you may have other rights that vary from state to state.

INTERMATIC INCORPORATED WILL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. THIS WARRANTY IS IN LIEU OF ALL OTHER

EXPRESS OR IMPLIED WARRANTIES. ALL IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY AND THE WARRANTY OF

FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY MODIFIED TO EXIST ONLY AS CONTAINED IN THIS LIMITED WARRANTY, AND SHALL BE

OF THE SAME DURATION AS THE WARRANTY PERIOD STATED ABOVE.

This warranty service is available by either (a) returning the product to the dealer from whom the unit was purchased, or (b) mailing postage prepaid

to the nearest authorized service center listed. Please be sure to wrap the product securely when mailing to avoid shipping damage. This warranty is

made by: Intermatic Incorporated/After Sales Service, 7777 Winn Rd., Spring Grove, IL 60081-9698/815-675-7000 http://www/intermatic.com

Because of our commitment to continuing research and improvements, Intermatic Incorporated reserves the right to make changes, without notice, in the specifications and material

contained herein and shall not be responsible for any damages, direct or consequential, caused by reliance on the material presented.
