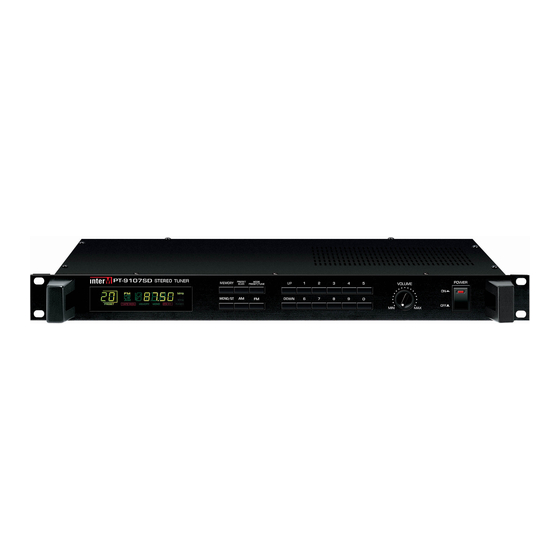

PT-9107SD
MONO
Stereo Tuner
MEMORY
PRESET
MODE
UP
1
SCAN
PRESET/TUNE
MHz
MONO / ST
AM
FM
DOWN
6
KHz
* Rack mount products in the Western Hemisphere(North America, South America,
and the Caribbean) do not have handles installed due to customer preference.
VOLUME
2
3
4
5
ON
7
8
9
0
OFF
MIN
MAX
POWER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PT-9107SD and is the answer not in the manual?

Questions and answers

parenteau michel
February 6, 2025

after enter memorize channel and frequency and after switch off and on the stéréo, the frequency channel are not the same try reset at the back and still the same

1 comments:
Mr. Anderson
February 10, 2025

The PT-9107SD stereo tuner may reset memorized channels and frequencies after powering off due to a lack of backup power for memory storage. If the internal memory relies on a capacitor or battery that has failed or is absent, the stored settings may be lost when the unit is turned off. Additionally, if the device is not designed to retain memory without continuous power, settings will be erased upon shutdown.

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for Inter-m PT-9107SD

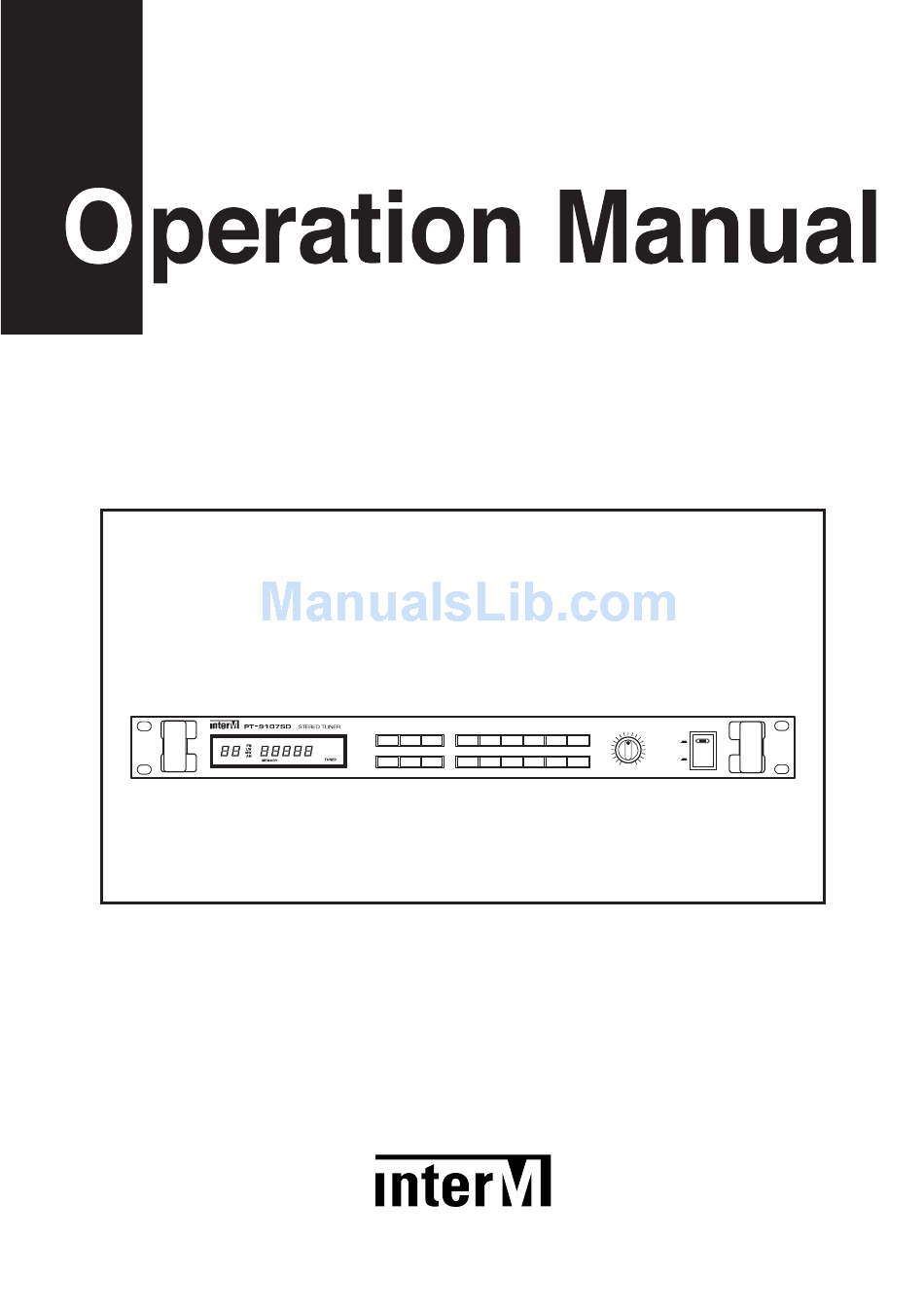

  • Page 1 PT-9107SD Stereo Tuner MEMORY MONO / ST MONO PRESET MODE VOLUME SCAN PRESET/TUNE DOWN * Rack mount products in the Western Hemisphere(North America, South America, and the Caribbean) do not have handles installed due to customer preference. POWER...
  • Page 2: Table Of Contents

    ...10 Block Diagram ...11 Specifications ...12 Service Procedures ...13 Schematic ...13 Parts List ...13 Variations and Options Warranty ...13 OFFICE : 653-5 BANGHAK-DONG, DOBONG-KU, SEOUL, KOREA TEL : 82-2-2289-8140~8, FAX : 82-2-2289-8149 Home Page : http://www.inter-m.com E-mail : export@inter-m.com ...13...
  • Page 3: Warning

    All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good many features and how to use them.
  • Page 4: Unpacking

    5. Depress the power switch to the ON position. The power switch will illuminate. 6. Connect antennas and position them to receive the best reception. 7. The product is ready for operation. Slowly increase the VOLUME control to the desired operating level. 8. Incorporate the Tuner’s remaining capabilities as desired. PT-9107SD...
  • Page 5: Environment

    STEREO TUNER S3125A S3125A PT-9107SD...
  • Page 6: Description

    - 20 station preset - Automatic Mute Circuit - Automatic Mute Circuit - DIGI-LINK function for remote control (The Digi-link contact terminal is only compatible with Inter-M code, - DIGI-LINK function for remote control (Inter-M Code) preset, control 10, 20) Accessories One detachable AC power cord and two antennas (one AM, one FM) are provided for use with this product.
  • Page 7: Front Panel

    6. POWER SWITCH This switch turns the AC mains ON/OFF. When in the ON position, the power switch will illuminate. MEMORY PRESET MODE SCAN PRESET/TUNE MONO / ST DOWN STEREO TUNER VOLUME PT-9107SD...
  • Page 8 Depressing these buttons selects between the AM and FM bands. 13. UP DOWN BUTTONS Depressing either of these buttons will tune UP or DOWN in frequency. Depressing and holding either button for 2 seconds will cause the Tuner to move UP or DOWN to the next broadcast signal. PT-9107SD...
  • Page 9: Rear Panel

    This fuse cover contain AC fuse, replace only with same type fuse when it is blown out. If it continuously low, stop replacing fuse and refer servicing to qualified personnel. 7. DIGI-LINK ACCESS CONNECTOR (The Digi-link contact terminal is only compatible with Inter-M code, preset, control 10, 20) This connector interfaces with the DIGI-LINK remote control.
  • Page 10: Connections

    AM antenna and its mounting position. An AM antenna is provided and should suitable for most applications. Repositioning the antenna (including taking it outdoors) may be necessary to identify the optimum mounting location. PT-9107SD FM T-SHAPE ANTENNA (USE 300 /75 MATCHING TRANS)
  • Page 11 - SYSTEM INTERCONNECT Inter-M products are wired to reflect accepted wiring practices used throughout the world. Balanced 1/4” TRS connectors are wire as described: Tip is Positive Ring is Common Sleeve is Shield Unbalanced RCA connectors are wire as described:...
  • Page 12: Applications

    POWER AMPLIFIER DISTRIBUTOR EMERGENCY PANEL FIRE AUDIO PRE AMPLIFIER MASTER OUTPUT REC OUT CD PLAYER CASSETTE DECK PT-9107SD AC INPUT 220V 60Hz FUSE T125mAL / 250V DSC-8200 DIGI-LINK CONTROL UNIT RX RX RM 1 RM 5 RX RX RX RX...
  • Page 13: Block Diagram

    STEREO TUNER Block Diagram Block Diagram PT-9107SD...
  • Page 14: Specifications

    Output Level FM (Mono Balanced)...1V(modul. 75kHz) FM (Stereo Balanced) ...500mV(modul. 75kHz) AM (Mono Balanced) ...240mV(modul. 30%) - GENERAL Power Source ...AC 100V/120V/230V/240V, 50/60Hz, DC 24V Power Consumption ...11W Weight...3.5kg Dimensions ...482(W)×44(H)×280(D)mm * Specifications and design subject to change without notice. PT-9107SD...
  • Page 15: Procedures

    To obtain specific warranty information and available service locations contact Inter-M directly or the autho- rized Inter-M Distributor for your specific country or region.
  • Page 16 Inter-M, Ltd. (Korea) began operations in 1983. Since then, Inter-M has grown to become one of the largest manufacturers of professional audio and commercial sound electronics equipment in the world. Inter-M has gained worldwide recognition for its own branded products, as well as private label manufacturing of electronics sold under other names (OEM).
