Operation
Manual
RM-88

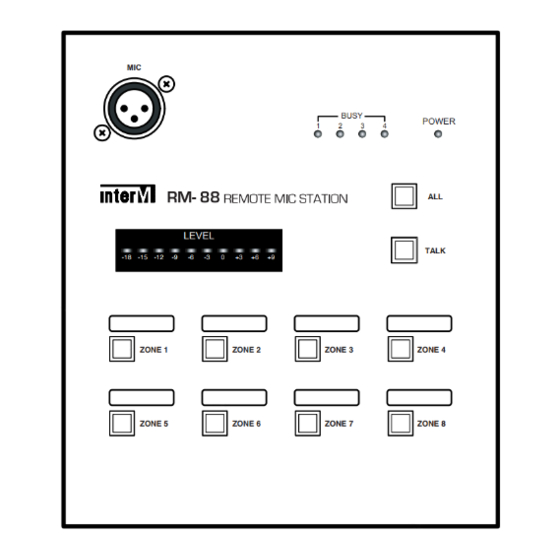

Remote Mic Station
MIC
1
LEVEL
-18
-15 -12
-9
-6
-3
0
+3
+6
+9
ZO
NE 1
ZONE 2
ZONE 3
ZONE 5
ZONE 6
ZONE 7
BUSY
POWER
2
3
4
ALL
TALK
ZONE 4
ZONE 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RM-88 and is the answer not in the manual?

Questions and answers

Summary of Contents for Inter-m RM-88

  • Page 1 Inter-M, Ltd. (Korea) began operations in 1983. Since then, Inter-M has grown to become one of the largest manufacturers of professional audio and commercial sound electronics equipment in the world. Inter-M has gained worldwide recognition for its own branded products, as well as private label manufacturing of electronics sold under other names (OEM).
  • Page 2: Table Of Contents

    A personal welcome to you from the management and employees of Inter-M All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products.
  • Page 3: Unpacking

    PX-0288 and will override the gain and program select settings on the PX-0288. 9. Connect one or more (maximum 4) RM-88 units to the remote mic input connector on the back of the PX-0288. Connect a microphone to each RM-88.
  • Page 4: Installation

    - DO NOT OPEN THE CASE OR ATTEMPT REPAIRS OR MODIFICATIONS YOURSELF This product contains no user-serviceable parts. Refer all maintenance to qualified Inter-M service personnel. Opening the case and/or tampering with internal circuitry voids the warranty. - ALWAYS POWER OFF BEFORE MAKING CONNECTIONS Always turn the AC mains OFF before connecting or disconnecting cables.
  • Page 5: Front Panel

    It displays the audio level of input or output. BUSY INDICATOR This indicates which of the RM-88 are in use at the moment. There are no priorities given to the remotes so the first to make signal is the only one active at any time.
  • Page 6 Balanced Audio Hot Audio- Balanced Audio Cold A-GND Analog Ground OUTPUT CONTROL This determines the output signal level of the RM-88 signal being sent to the PX-0288. MONITOR CONTROL It determines the volume level of the internal monitoring speaker. RM-88(REMOTE MIC STATION)
  • Page 7: Applications

    CONTROL connector located on the rear of the PX-0288. - Assign the appropriate address and Chime settings with the DIP switches on the rear of the RM-88. - Select an output zone from Remote Mic Station and press the "TALK" BUTTON. The selected zone(s) will show the letter "R"...
  • Page 8: Block Diagram

    B l o c k D i a g r a m RM-88(REMOTE MIC STATION) S p e c i f i c a t i o n s ■ ■ ■ ■ ELECTRICAL MIC Input ...-50dB(Balanced) Audio Output Line Output ...0dB(Balanced) Serial Interface (RS-422) Communication Speed ...9600 bps...
  • Page 9: Service

    To obtain specific warranty information and available service locations contact Inter-M directly or the authorized Inter-M Distributor for your specific country or region. RM-88(REMOTE MIC STATION)
