Inter-m RM-6800 Operation Manual

System remote mic station
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operation Manual
System Remote Mic Station
RM 6800
+3dB

Advertisement

Table of Contents
loading

Related Manuals for Inter-m RM-6800

Summary of Contents for Inter-m RM-6800

  • Page 1 Operation Manual System Remote Mic Station RM 6800 +3dB...
  • Page 2 A personal welcome to you from the management and employees of Inter-M All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products.

  • Page 3: Table Of Contents

    ............................3 Contents and Accessories ......................3 Front Panel ............................4 Rear Panel ............................6 How To Set Up The Device And Precautions ................8 Applications ..........................17 Block Diagram ..........................19 Specifications ..........................20 Service Procedures............................22 Schematic.............................22 Parts List ............................22 Variations and Options .......................22 Warranty ............................22 RM-6800...

  • Page 4: Unpacking

    SySteM ReMote MIc StAtIon Unpacking Unpacking Although your RM-6800 is neither complicated nor difficult to operate, we recommend you take a few minutes to read this brief manual and familiarize yourself with the important information regarding product features, setup and operation.

  • Page 5: Features

    Features Features - SYSTEM MODE SETTINGS you can set the operation mode (RM-6042, nRM-8000A, RM-6016 MoDe) of RM-6800. you can use the nPX-SySteM 6000 System by using this function. - GOOSENECK MICROPHONE you can use the gooseneck microphone to broadcast paging in each area.

  • Page 6: Front Panel

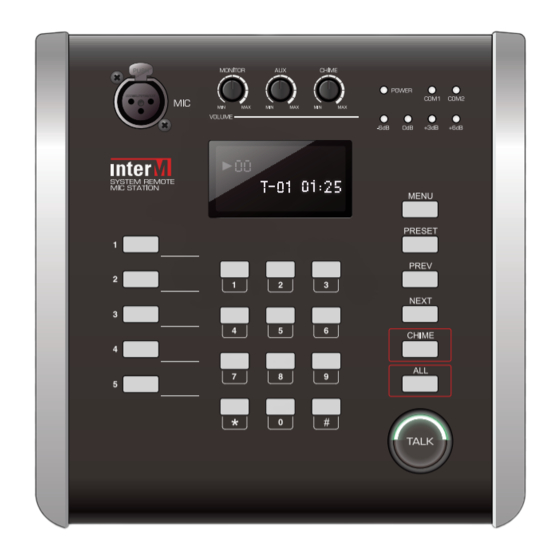

    18 of this manual for detailed information about the talk button settings. 6. MENU / PRESET / PREV / NEXT / CHIME / ALL BUTTON 1) MenU / PReSet/ PReV / neXt: these are the buttons to check the status of system settings and PReSet settings. RM-6800...
  • Page 7 It is the LeD that shows the power status and communication status. the power LeD is lit when power is applied, and the communication LeD blinks when communicating with the system. 9. MONITOR / AUX / CHIME VOLUME this volume controls the MonItoR/AUX/cHIMe output. RM-6800...

  • Page 8: Rear Panel

    – When using in nRM-8000A mode, this terminal is used to connect the nPX-8000 to this device. <PIn oUt SPecIFIcAtIonS> PIn no. Function cAn H cAn L +40V Audio out+ Audio out- 3. COM2 TERMINAL coM2 – When using in RM-6024 mode, this terminal is used to connect the PX-6216/ecS-6216P to this device. RM-6800...
  • Page 9 6. AUX INPUT TERMINAL you can use this terminal to use the AUX In jack to input an external sound source and broadcast through the RM-6800. 7. MIC GAIN ADJUSTMENT VOLUME this is the volume that adjusts the input GAIn of the microphone.

  • Page 10: How To Set Up The Device And Precautions

    9) Set the ID according to the 6000 System and nPX System. When connecting RMe to ecS-6216P (in case of the RM of RMe connected to ecS-6216P Port1: 1~8, in the case of the RM of RMe connected to eSc-6216P Port2: 9~16) RM-6800...
  • Page 11 LcD. 2) In the case of RM-6016, the "LInK" status and ID are not displayed. 3) When a high-priority broadcast is being made, a "BUSy" status is displayed on the standby screen. RM-6800...
  • Page 12 5) If you input a wrong number while inputting the number, select the * key to delete the wrong number (Backspace function). 6) After entering the number to broadcast, you can complete your input by selecting the # key (Add). 7) you can repeat the step 4) and 6) to register multiple numbers. RM-6800...
  • Page 13 - BUSY MESSAGE SCREEN 1) When the key is pressed in the Busy status according to the system priority broadcast on the standby screen, the message "the other source is broadcasting" (ecS-6216P) or "BUSy Zone" (PX-6216 or nPX-8000) is displayed. RM-6800...
  • Page 14 SySteM ReMote MIc StAtIon 3. PRESET CALL SPEED KEY: PRESET CALL OR INPUT SHORTCUT KEY FUNCTION 1) the 1 ~ 5 key on the front left side of RM-6800. +3dB 2) When nRM-8000A is used, the preset of the corresponding number is loaded and displayed.
  • Page 15 3) If you select the MenU button on the end chime Set screen, the talk type Set screen is displayed. 4) If there is no input for 10 seconds on the settings screen, it returns to the standby screen. 5. TALK TYPE SET: YOU CAN SET HOW THE TALK BUTTON WORKS. RM-6800...
  • Page 16 4) Set the ID according to the 6000 System and the nPX System. When connecting RMe to ecS-6216P (in the case of the RM of RMe connected to ecS-6216P Port1: 1~8; in the case of the RM of RMe connected to eSc-6216P Port2: 9~16) RM-6800...
  • Page 17 2) In RM-6016 / RM-6024 operating mode, the standby screen appears after displaying the “Invalid Function” message. 3) It can be used after setting RM Preset data in MP-8000. 4) the number of the current Preset is displayed on the display screen with a white background. RM-6800...
  • Page 18 7) If the zone is operating according to the priority, a corresponding message will be displayed. 8) this operation is terminated when playback of a sound source ends or when a high-priority broadcast is ※ the priority can be set and confirmed in the Windows program (MP-8000). output. RM-6800...

  • Page 19: Applications

    LM LINK LINK IN LM LINK LM LINK LM LINK LM LINK LINK OUT NLM-8000C MAX 8EA + NLM-8000A 1EA MAX 300M RM-6800(NRM-8000A MODE) Application (2) EP-6216 MATRIX PRE IN REMOTE IN 2 REMOTE IN 1 TIMER IN AUTO ANN IN...
  • Page 20 SySteM ReMote MIc StAtIon Applications Applications Application (3) Source Device RM-6800 RM-6800 Source Device RM-6800...

  • Page 21: Block Diagram

    SySteM ReMote MIc StAtIon Block Diagram Block Diagram RM-6800...

  • Page 22: Specifications

    SySteM ReMote MIc StAtIon Specifications Specifications RM-6800 Audio Feature Input Sensitivity -50 dBV output Sensitivity 0 dBV Signal-to-noise Ratio Better than 70dB (<22 kHz LPF) tHD (<22 kHz LPF) Less than 0.1% Frequency Response 0 dBV ± 3 dBV (100 Hz ~ 18 kHz)
  • Page 23 SySteM ReMote MIc StAtIon ※ DIMENSIONS RM-6800...

  • Page 24: Service

    Inter-M directly or the authorized Inter-M Distributor for your specific country or region.
  • Page 25 note...
  • Page 26 note...
  • Page 28 Inter-M, Ltd. (Korea) began operations in 1983. Since then, Inter-M has grown to become one of the largest manufacturers of professional audio and commercial sound electronics equipment in the world. Inter-M has gained worldwide recognition for its own branded products, as well as private label manufacturing of electronics sold under other names (oeM).
