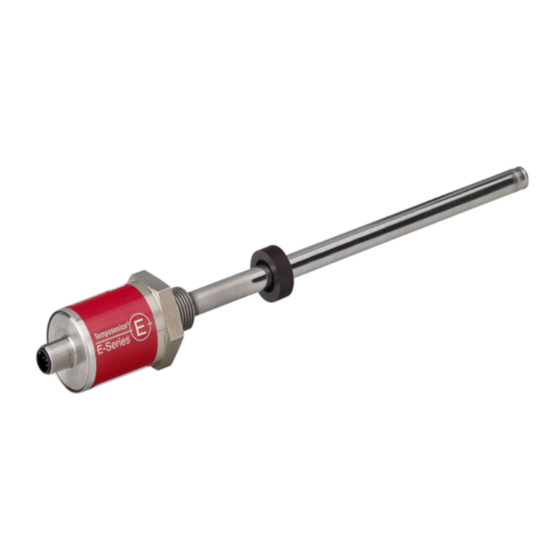

- Page 1 Operation Manual E-Series IO-Link Magnetostrictive Linear Position Sensors...
-
Page 2: Table Of Contents
3.7 Approvals ........................................ 10 3.8 Scope of delivery ..................................... 10 4. Product description and commissioning ........................11 4.1 Functionality and system design ................................11 4.2 Styles and installation of Temposonics ® EH ............................. 12 4.3 Styles and installation of Temposonics ®... -
Page 3: Introduction
® 1. The sensor systems of all Temposonics series are intended exclu sively for measurement tasks encountered in industrial, commercial and laboratory applications. The sensors are considered as system accessories and must be connected to suitable evaluation electron ics, e.g. -
Page 4: Installation, Commissioning And Operation
Operation Manual 2.3 Installation, commissioning and operation 2.5 Warranty ® grants a warranty period for the Temposonics position The position sensors must be used only in technically safe condition. To maintain this condition and to ensure safe operation, installation, sensors and supplied accessories relating to material defects and connection and service, work may be performed only by qualified... -
Page 5: Identification
Temposonics ® E-Series IO-Link Operation Manual 3. Identification 3.1 Order code of Temposonics ® a Sensor model d Connection type H Rod 4 M12 (4 pin) male connector b Design e Operating voltage EH rod-style sensor with housing material 1.4305 (AISI 303) +24 VDC (±25 %) -
Page 6: Order Code Of Temposonics Ep
Temposonics ® E-Series IO-Link Operation Manual 3.2 Order code of Temposonics ® a Sensor model P Compact profile b Design Without position magnet c Stroke length X M 0050…2540 mm Standard stroke length (mm*) Ordering steps 50 … 500 mm 25 mm 500…2540 mm... -
Page 7: Order Code Of Temposonics El
Temposonics ® E-Series IO-Link Operation Manual 3.3 Order code of Temposonics ® a Sensor model Ultra low profile b Design Without position magnet c Stroke length X M 0050…2540 mm Standard stroke length (mm*) Ordering steps 50 … 500 mm 25 mm 500…2540 mm... -
Page 8: Order Code Of Temposonics Ep2
Temposonics ® E-Series IO-Link Operation Manual 3.4 Order code of Temposonics ® a Sensor model 2 Smooth profile b Stroke length X M 0050…2540 mm Standard stroke length (mm*) Ordering steps 50 … 500 mm 25 mm 500…2540 mm 50 mm U 002.0…100.0 in. -
Page 9: Order Code Of Temposonics Er
Temposonics ® E-Series IO-Link Operation Manual 3.5 Order code of Temposonics ® a Sensor model R Aluminum cylinder with a guided driving rod b Design M Inside thread M6 at end of rod (For metric stroke length measurement) Inside thread ¼"-28 UNF at end of rod... -
Page 10: Nameplate
Temposonics ® E-Series IO-Link Operation Manual 3.6 Nameplate Connection type Operating voltage Stroke length (e.g. 200 mm) Output Sensor model Part No. EHM0200MD441K Serial number FNr.: 15490547 Fig. 1: Example of nameplate of an E-Series EH sensor 3.7 Approvals •... -
Page 11: Product Description And Commissioning
• The external position magnet is a permanent magnet. Mounted on The absolute, linear position sensors provided by the mobile machine part, it travels along the sensor rod or profile rely on the company’s proprietary Temposonics ® magnetostrictive and triggers the measurement through the sensor rod wall. -
Page 12: Styles And Installation Of Temposonics Eh
Temposonics ® E-Series IO-Link Operation Manual 4.2 Styles and installation of Temposonics ® E-Series EH Stroke length Sensor electronics housing Null zone Dead zone 50…2540 63.5 (2…100) (0.51) (1.89) (2.01) (2.5) 4 pin A/F 34 Threaded flange Sensor rod Type »K«, »M«, »W«: Type »K«, »L«:... - Page 13 ® Temposonics E-Series IO-Link Operation Manual Notice for metric threaded flanges Thread Z° ×P) +0.1 +0.4 ±1° EH-K M18×1.5-6g 55 ≥ 10 24.5 19.8 28.5 26 15° EH-M / -W M18×1.5-6g 55 ≥ 13 24.5 19.8 28.5 26 15° Ød Ød...
-
Page 14: Styles And Installation Of Temposonics Ep
Temposonics ® E-Series IO-Link Operation Manual 4.3 Styles and installation of Temposonics ® E-Series EP Sensor electronics Null zone Stroke length housing Dead zone 50…2540 48.8 (1.38) (2…100) (0.51) (1.92) (2.68) 4 pin Magnet 35.6 (1.40) 14.6 Mounting clamps (0.57) 50 (1.97) -
Page 15: Styles And Installation Of Temposonics El
Temposonics ® E-Series IO-Link Operation Manual 4.4 Styles and installation of Temposonics ® E-Series EL Sensor electronics housing Null zone Stroke length Dead zone 50…2540 (0.51) (1.77) (1.38) (2…100) (2.68) 4 pin Magnet 35.6 (1.40) 14.6 Mounting clamps 50 (1.97) (0.57) -
Page 16: Styles And Installation Of Temposonics Ep2
Temposonics ® E-Series IO-Link Operation Manual 4.5 Styles and installation of Temposonics ® E-Series EP2 Null zone Stroke length Dead zone 50…2540 (2.87) (2…100) (2.87) Mounting support 3 ± 2 (0.12 ± 0.08) (0.51) 4 pin 14.6 Mounting clamps 35.6 (1.40) (0.57) -
Page 17: Styles And Installation Of Temposonics Er
Temposonics ® E-Series IO-Link Operation Manual 4.6 Styles and installation of Temposonics ® E-Series ER (0.12) Stroke length 35.5 50…1500 132.5 + stroke length (1.40) 17.8 M12×1 (5.22 + stroke length) (2…60) (0.7) 4 pin Optional: Optional: (1.97) Adjustable Adjustable... -
Page 18: Magnet Installation
Temposonics ® E-Series IO-Link Operation Manual 4.7 Magnet installation Magnet Typical Sensors Benefits Ring magnets Rod model • Rotationally symmetrical Air gap: 3 ±2 8 ±2 (EH) magnetic field (0.12 ±0.08) (0.31 ±0.08) Sensor element Block magnet U-magnets Profile &... - Page 19 Temposonics ® E-Series IO-Link Operation Manual E-Series EL with magnet slider “S”, “N”, “V”, “G” Start and end positions of the position magnets Consider the start and end positions of the position magnets during the installation. To ensure that the entire stroke length is electrically...
-
Page 20: Electrical Connections
Temposonics ® E-Series IO-Link Operation Manual 4.8 Electrical connections Signal + power supply Placement of installation and cabling have decisive influence on M12 male connector the sensor‘s electromagnetic compatibility (EMC). Hence correct Function (A-coded) installation of this active electronic system and the EMC of the entire system must be ensured by using suitable metal connectors, shielded* cables and grounding. -
Page 21: Frequently Ordered Accessories
Temposonics ® E-Series IO-Link Operation Manual 4.9 Frequently ordered accessories – Additional options available in our Accessories Guide 551 444 Position magnets Ø 32.8 Ø 32.8 (Ø 1.29) Ø 25.4 Ø 4.3 (Ø 1.29) Ø 17.4 (Ø 1) Ø 4.3 (Ø... - Page 22 Temposonics ® E-Series IO-Link Operation Manual Cable connectors Cable ~ 57 26.5 Ø 15 Ø 15 (~2.25) (1.04) (Ø 0.6) (Ø 0.6) 45.5 Ø 12.2 31.5 (1.8) (Ø 0.48) Ø 8.8 (1.24) (Ø 0.35) 2.09) Ø 11.6 (Ø 0.46) Ø 11.6 Ø...
-
Page 23: Operation
Temposonics ® E-Series IO-Link Operation Manual 5. Operation IO-Link IO-Link is an open standard according to IEC 61131-9. It is a serial, bi-directional point-to-point connection for signal transmission and energy supply. The bi-directional communication enables consistent communication between sensors and the controller as well as consistent diagnostic information down to the sensor level. -
Page 24: Standard Commands
Temposonics ® E-Series IO-Link Operation Manual 5.2 Standard commands The following commands can be used to reset the device, or reset all parameters to default settings. Index Subindex Parameter Access Command Description Table 3: Standard commands 5.3 Measuring parameter These parameters allow the sensor to be adapted to the application. The resolution, a filter of the measured value and the measuring direction can all be configured. -
Page 25: Switch Points
Temposonics ® E-Series IO-Link Operation Manual 5.5 Switch points The digital output of the sensor on pin 2 (DI / DQ) can be configured as a switch point (see "4.8 Electrical connections" on page 20). This switch point is output in parallel to the position value. -
Page 26: Set Measurement Range
Temposonics ® E-Series IO-Link Operation Manual 5.6 Set measurement range The start and end point of the measurement can be set by the user in order to customize the measuring range. Teach measurement points For the teach-in procedure the user moves the position magnet to the required position. Click the appropriate button in the graphical user interface (GUI) of the IO-Link master in order to define set point 1 or set point 2. -
Page 27: Error / Warning Messages
Temposonics ® E-Series IO-Link Operation Manual 5.7 Error / warning messages If any issues happen, the following warnings and error messages will be issued. Code Mode Type Message Error More than one magnet Error Warning Warning Table 8: Error codes specified by... -
Page 28: Device Access Lock
Temposonics ® E-Series IO-Link Operation Manual 5.9 Device Access Lock The parameter "Device Access Lock" allows the user to activate or deactivate data storage mechanism. Set bit 1 to "0" to unlock the data storage mechanism of the IO-Link device; so the IO-Link master can read the data storage of the IO-Link device and write to the data storage of the IO-Link device. -
Page 29: Integration Into Automation Studio
Temposonics ® E-Series IO-Link Operation Manual 6. Integration into Automation Studio 6.1 Introduction of "Automation Studio" After successfull file import the IODD file will be shown in the column "Toolbox - Hardware Catalog" (Fig. 29). The following is a description how to integrate a Temposonic ®... -
Page 30: Configure Process Data
Temposonics ® E-Series IO-Link Operation Manual Configure the settings of the IO-Link master (X20DS438A) and set the Create 4 single byte variables (PositionByte0…PositionByte3) operating mode of the IO-Link interface to "Operate" (Fig. 32). ("USINT" – unsigned shot integer) which linked to the data of the sensor process data in the logical view of "Global.var". - Page 31 ® Temposonics E-Series IO-Link Operation Manual To compose the position from the position bytes create a program (in this example it is called "ComposePosition") with following code: Initialization method Initialization of variables PositionByte0...PositionByte3 and ComposedPosition.The variable ComposedPosition stores the measured position value.
- Page 32 Temposonics ® E-Series IO-Link Operation Manual With that code running, you can observe how the position is composed out of the input bytes using the variable watch window. Fig. 39: Sensor parameter Fig. 36: Variable watch window With the device configuration UI the sensor configuration can be done in a convenient way.
-
Page 33: Maintenance And Troubleshooting
Temposonics ® E-Series IO-Link Operation Manual 7. Maintenance and troubleshooting 7.1 Error conditions, troubleshooting See chapter "5. Operation" on page 23. 7.2 Maintenance The sensor is maintenance-free. 7.3 Repair Repairs of the sensor may be performed only by a repair facility explicitly authorized by 7.4 List of spare parts... -
Page 34: Technical Data
Temposonics ® E-Series IO-Link Operation Manual 9. Technical data 9.1 Technical data of Temposonics ® Output Interface Digital Transmission protocol IO-Link V1.1 Data format 32 bit signed (position in μm) Data transmission rate COM3 (230.4 kBaud) Process data device – master 4 bytes Process data master –... -
Page 35: Technical Data Of Temposonics Ep
Temposonics ® E-Series IO-Link Operation Manual 9.2 Technical data of Temposonics ® Output Interface Digital Transmission protocol IO-Link V1.1 Data format 32 bit signed (position in μm) Data transmission rate COM3 (230.4 kBaud) Process data device – master 4 bytes Process data master –... -
Page 36: Technical Data Of Temposonics El
Temposonics ® E-Series IO-Link Operation Manual 9.3 Technical data of Temposonics ® Output Interface Digital Transmission protocol IO-Link V1.1 Data format 32 bit signed (position in μm) Data transmission rate COM3 (230.4 kBaud) Process data device – master 4 bytes Process data master –... -
Page 37: Ep2
Temposonics ® E-Series IO-Link Operation Manual 9.4 Technical data of Temposonics ® Output Interface Digital Transmission protocol IO-Link V1.1 Data format 32 bit signed (position in μm) Data transmission rate COM3 (230.4 kBaud) Process data device – master 4 bytes Process data master –... -
Page 38: Technical Data Of Temposonics Er
Temposonics ® E-Series IO-Link Operation Manual 9.5 Technical data of Temposonics ® Output Interface Digital Transmission protocol IO-Link V1.1 Data format 32 bit signed (position in μm) Data transmission rate COM3 (230.4 kBaud) Process data device – master 4 bytes Process data master –... -
Page 39: Appendix
1 . Appendix Safety Declaration Dear Customer, If you return one or several sensors for checking or repair, we need you to sign a safety declaration. The purpose of this declaration is to ensure that the returned items do not contain residues of harmful substances and / or that people handling these items will not be in danger. order number: ________________________________ Sensor type(s): __________________________________________ Serial number(s): _________________________________________... - Page 40 © 2021 Temposonics, LLC – all rights reserved. Temposonics, LLC and Temposonics GmbH & Co. KG are subsidiaries of Amphenol Corporation. Except for any third party marks for which attribution is provided herein, the company names and product names used in this document may be the registered trademarks or unregistered trademarks of Temposonics, LLC or...
