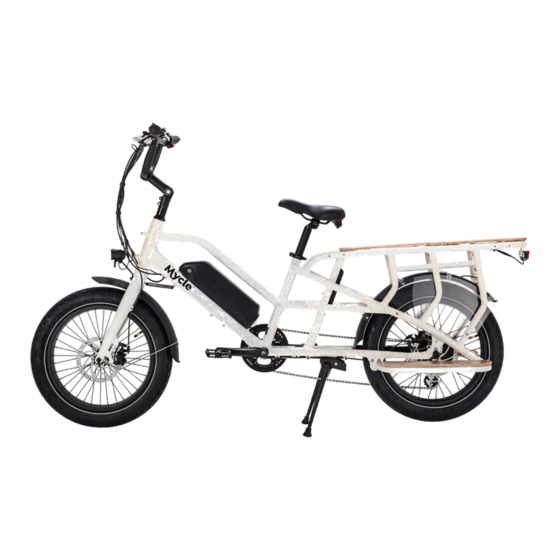

- Page 1 The Cargo User Manual...
- Page 2 Meet Mycle. Your New Best Mate. Equipped with motor-powered assistance, the Mycle Cargo brings a boost to every journey. To get the most out of your bike – and ensure you’re using it safely and correctly – make sure you read this manual before you get out on the road.
-
Page 3: Table Of Contents
Contents General Safety Meet Your Mycle Quick Set-Up Power Assist 10-11 Controller 12-13 Charging The Battery 14-15 Charger Safety Precautions 16-17 Additional Comments 18-19 Maintenance Warranty Our Misson 22-23... - Page 4 Mycle Our Mission Moving People And Planet Forward...
- Page 5 Mycle Our Mission Our Mission The biggest change starts small, and we believe that a better planet isn’t a million miles away. Change is just on your doorstep – get out on your Mycle and go find it! Connected Cleaner Transport Communities We’re on a mission to challenge the health issues facing the world...
- Page 6 Mycle General Safety Always wear a helmet Watch the weather...
-
Page 7: General Safety
Mycle General Safety General Safety Your Mycle Cargo has been built and tested in the UK by our trained Cytech bike technicians. However, before trying out your Cargo, make sure you carry out the routine checks listed in the MAINTENANCE section of this manual. -
Page 8: Meet Your Mycle
Mycle Meet Your Mycle Meet Your Mycle... - Page 9 Mycle Meet Your Mycle Get started by understanding all the parts and components of Your Mycle Cargo. Accessory name Accessory name Accessory name Saddle Derailleur Integrated front fork Seat post Front fender Seat post quick release Kickstand Headlight Controller Hub motor...
-
Page 10: Quick Set-Up
Mycle Quick Set Up Quick Set-up Before you get out on the road, make sure your bike is correctly set up and aligned to your height. - Page 11 Mycle Quick Set Up Front Wheel The front wheel is attached with a quick release lever. Put the bike on the double kick stand so it’s supporting itself. The quick release lever can be found through the middle of the front wheel.
-
Page 12: Power Assist
Mycle Power Assist Power Assist The Power Assist feature is what makes Mycle special. You can switch from fully manual to high speed assistance at the push of a button. Power Assist is initiated by the pedals and operated through the On Board control pannel. Simply pedalling the bike will create an additional level of power to increase your riding speed or help you tackle hills. - Page 13 Mycle Power Assist Level 0 full y manual for lo w speeds Level 1 & f lat ridin g for faste r speeds Level 2 & uphills Level 3 for high speeds & uphills Twist Throttle Press the red button, this is the on switch for the throttle Twist the throttle to use.
-
Page 14: Controller
Mycle Meet your Mycle On Board Controller Everything you need to know about your bike appears on the On Board Controller. Assist Level Charging Light Battery Level Power On/Off Level Down Level Up Front and Rear Lights (Hold) - Page 15 Mycle Meet Your Mycle Get Started Hold the Power button for two seconds to switch on and off. Use The Lights Hold down the Level Up button for two seconds to switch on the front and rear light. The rear light is both a light and a brake light. The light will become brighter when the brakes are applied.
-
Page 16: Charging The Battery
Mycle Charging The Battery High Power Dual Battery Uniformly Upgrade Kit Balanced Available... - Page 17 • Using a damaged battery or charger, can create additonal bike damaged and/or a fire hazard. If you have concerns please stop using your battery/charger and contact Mycle for further instruction. • The battery can be charged connected to the bike or by itself.
- Page 18 Mycle Charging The Battery Battery Battery Life Range The range can vary depending on; Battery performance will decline after prolonged • The level of assistance use. Depending on usage • The weight of the user patterns, the energy • The gradient of the road capacity can reduce by •...
-
Page 19: Charger Safety Precautions
Mycle Charging The Battery Charger Safety Precautions • Only use the charger supplied with this bike. • Avoid contact with water while charging the battery. If a plug becomes wet, dry thoroughly before use. • For indoor use, do not expose the battery charger to rain. - Page 20 • Hills that are normally easy to climb and descend without cargo can require additional effort, as the extra weight affects steering, braking, balancing as well as the amount of power it takes to go uphill.
- Page 21 • Never leave the bike unattended with cargo on the bike, otherwise the bike could tip over and cause serious damage to your cargo if not weighted level. • Increased weight from passenger(s) will increase the time it takes to slow the bike when braking and wear through brake pads more quickly.
-
Page 22: Maintenance
Mycle Maintenance Maintenance While your Mycle Cargo has been built and tested in the UK by our trained Cytech bike technicians, it’s important that you make the following routine checks before you first ride the bike, then on an ongoing weekly basis. -
Page 23: Warranty
Mycle Warranty Warranty Your Mycle Cargo comes with a 12 month warranty covering parts and labour (if returned to Mycle). Should you opt to have your bike worked on by an independent qualified bike repairer we will happily send you replacement parts subject to the terms of our warranty and with prior authorisation from us. - Page 24 Mycle Maintenance Recommended Service Intervals Regular inspection and maintenance are key to ensure bikes function as intended, and to reduce wear and tear on their systems. Recommended service intervals are meant to be used as guidelines. Real world wear and tear, and the need for service, will vary with conditions of use.
- Page 25 Mycle Maintenance Monthly (250-750 miles / 400-1200 km) Inspect Service Replace • Check brake pad alignment, brake cable • Clean and tension. lubricate drive • Check bike is shifting train. properly, proper derailleur cable • Check crank • Replace brake tension.
- Page 26 Mycle Maintenance Safety Checklist Before every ride and after every 30-80km we recommend following this safety checklist. Brakes Ensure front and rear brakes work properly. √ Check brake pads for wear and ensure they are not overworn. √ Ensure brake pads are correctly positioned in relation to the brake rotors.
- Page 27 Mycle Maintenance Bearings Ensure all bearings are lubricated, run freely, and display no √ excess movement, grinding, or rattling. Check headset, wheel bearings, pedal bearings, and bottom bracket bearings. Cranks and pedals Ensure pedals are securely tightened to the cranks.
- Page 28 Mycle Maintenance Charge and store bike and battery in a dry location, between √ 10-25 °C (50-77 °F). Let bike dry completely before using again. Battery Ensure battery is charged before use. √ Ensure there is no damage to battery.
- Page 29 Tyre inflation and replacement The Cargo has 20’ x 3’ tyres, These tyres are designed for durability and safety for regular cycling activities and should be checked before each use for proper inflation and condition.
- Page 30 If anything seems wrong, take your bike to a local, certified, and reputable bike mechanic, or contact Mycle Product Support. Test the brake levers. a. Fully squeeze each lever, and ensure neither the front nor rear brake lever touch the handlebar grips.
- Page 31 Mycle Maintenance Troubleshooting Symptoms Possible Causes Most Common Solutions Charge the battery Insufficient battery power Clean and repair connectors Faulty connections Install battery correctly The bike does not Battery not fully seated in tray Turn on bike with proper work...
- Page 32 The Cargo User Manual Imported and distributed by Mycle Ltd. Your Mycle Cargo has been designed in accordance with the requirements of European standards: EN 14764 and EN 15194, which comply with safety requirements.
