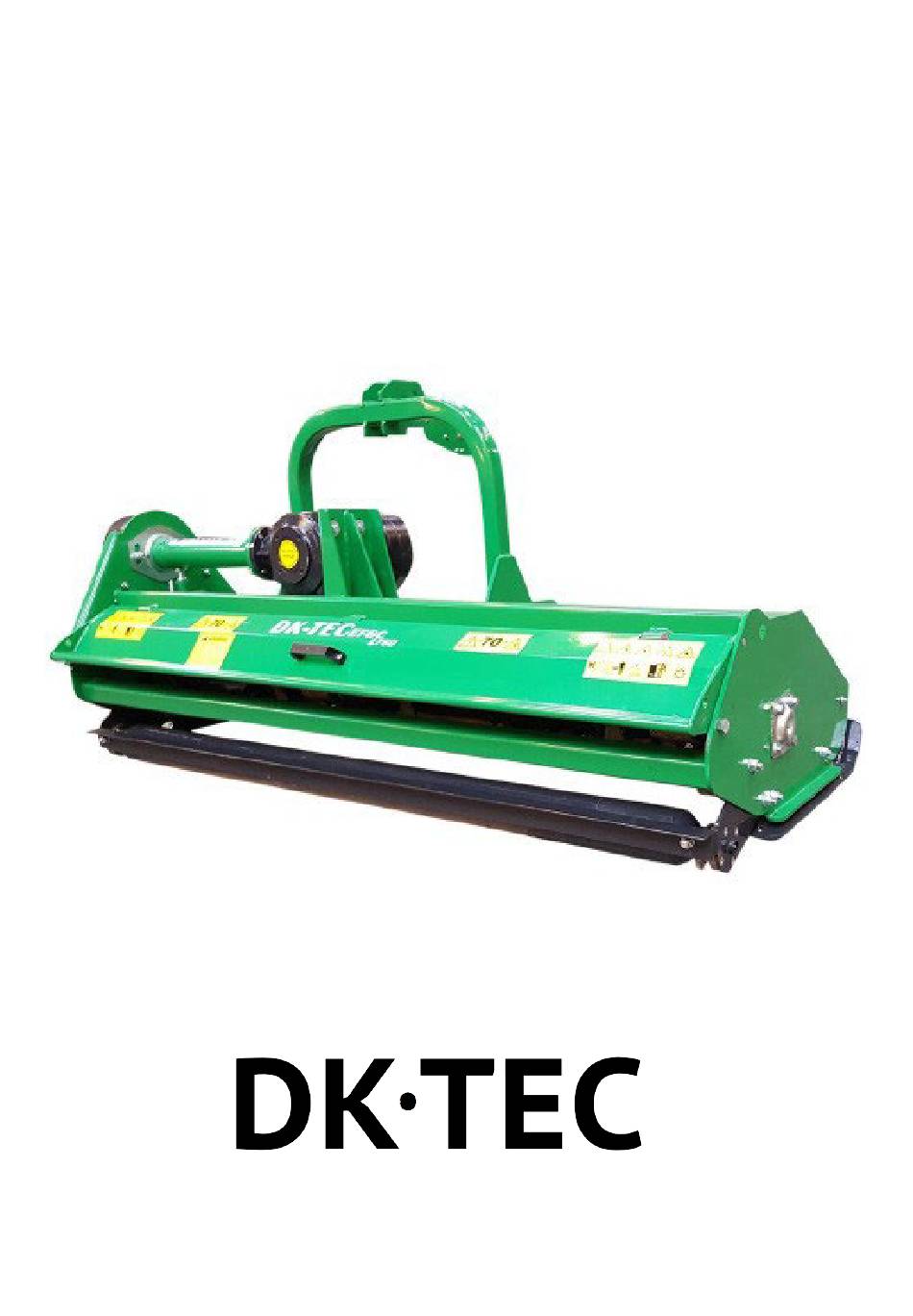

- Page 1 Flail mower 10/2021 User manual Translation of original manual Model: HNEFG HNEFGC HNEFGCH ALWAYS READ INSTRUCTIONS BEFORE USING THE MACHINE DK-TEC A/S Ærøvej 8, 5800 Nyborg Phone: 66128222 E-mail: info@dk-tec.dk...
-
Page 2: Table Of Contents
Table of contents 1. Getting started with your new product ..................1 2. Important safety information ......................2 3. Safety labels..........................6 4. Operating Instructions ........................7 5. Service & Maintenance ......................11 Specifications Model Working width Number of Number of HK needs Weight hammer... -
Page 3: Getting Started With Your New Product
09/2019 1. Getting started with your new product Never connect the product to the vehicle; eg. tractor, mini loader, ATV, car etc. except when the vehicle is; braked, stopped, and the ignition key is in the OFF position. • When the product is connected, it must be checked that all screens and safety locks etc. are mounted and intact. -
Page 4: Important Safety Information
09/2019 2. Important safety information Rear door security (for models with a rear door): Tailgate on some models can be opened for easier passage of material, and for maintenance of the machine. When working with tailgate, SAFETY is INCREDIBLY IMPORTANT 1. - Page 5 09/2019 Security at all times: The manual is read carefully and instructions in this manual must be understood before operation. All instructions on the safety labels must be read before using the machine. Persons who have not read and understood the contents of this manual must NOT operate the machine.
- Page 6 09/2019 Pay attention to signal words: A signal word tells something about the level of danger. DANGER: Indicates a dangerous situation which, if not avoided, will result in death or serious injury. This signal word is limited to the most extreme situations, typically to machine components which, for the sake of function, cannot be shielded.
- Page 7 Always read and follow the instructions. 1. Keep all safety labels clean and legible. 2. Replace all damaged or missing labels. If you want to order new labels, cash DK-TEC. ordering new parts for your machine, make sure you get the correct safety labels.
-
Page 8: Safety Labels
09/2019 3. Safety labels STOP! Check the oil level of the gearbox before starting the machine. Refill if needed. DANGER! Rotating parts. Never operate the machine without all safety shields being securely fitted. safety shield not properly fitted, can cause injury or death! DANGER Keep your distance from the machine in operation. -
Page 9: Operating Instructions
09/2019 WARNING Failure to read this manual before operating the machine may result in injury or death. It is your responsibility to keep an eye on the safety labels and to follow them. 4. Instruction manual Transport: NOTE: Always turn off the PTO before raising the flail mower to the transport position. •... - Page 10 09/2019 6. Clear the area to be cut of stones, branches and other foreign objects. 7. Lower the flail mower to the ground. Set the throttle on the tractor to approximately. 1/4 open. Connect the PTO so that the blades start rotating. 8.
- Page 11 09/2019 Flail mower adjustment • On a level area the machine must be retrotrapped to the tractor using the three-point suspension. • Use a powerful adjustable top bar. • Lower the three-point suspension to the lowest position. • With the carrier roller at back machine in contact with the ground, the length of of the...
- Page 12 Installing the V-belt: CAUTION: The strap is very tight; use caution to avoid bodily harm! 1. Remove strap guard and strap coverage. 2. Release the belt tension by loosening tightening bolt until strap can be removed. 3. With the tension relieved from the strap, the old strap is removed from the pulley and a new one is inserted.
-
Page 13: Service & Maintenance
PTO's tension is also checked. • Replace worn and damaged parts and illegible safety labels. New security labels are available from DK-TEC Replacing the blades: IMPORTANT: Make sure the knife has the same length and weight as the others on flail mower. - Page 14 09/2019 Lubrication For every 4 hours of work: • Check and tighten the bolts and nuts. • Lubricate with grease where indicated on the machine. • After 50 hours of work, oil is filled on the gearbox to the specified max level. Use a gear oil 80/90.
- Page 15 EC - D E C L A R A T I O N O F C ON F OR M I T Y DK Manufacturer Changzhou Han-Sun Machinery Co., Ltd. 89 Huanbao 4th Road Huanbao Industrial Park Hi-Tech, Changzhou, Jiangsu, P.R. China Hereby declares that the Following machinery: Designation: Flail mower...
- Page 16 09/2019 Always refer to the latest version of the manual, as well as the spare parts list/parts list for your item on www.dk-tec.dk, under the machine itself.
