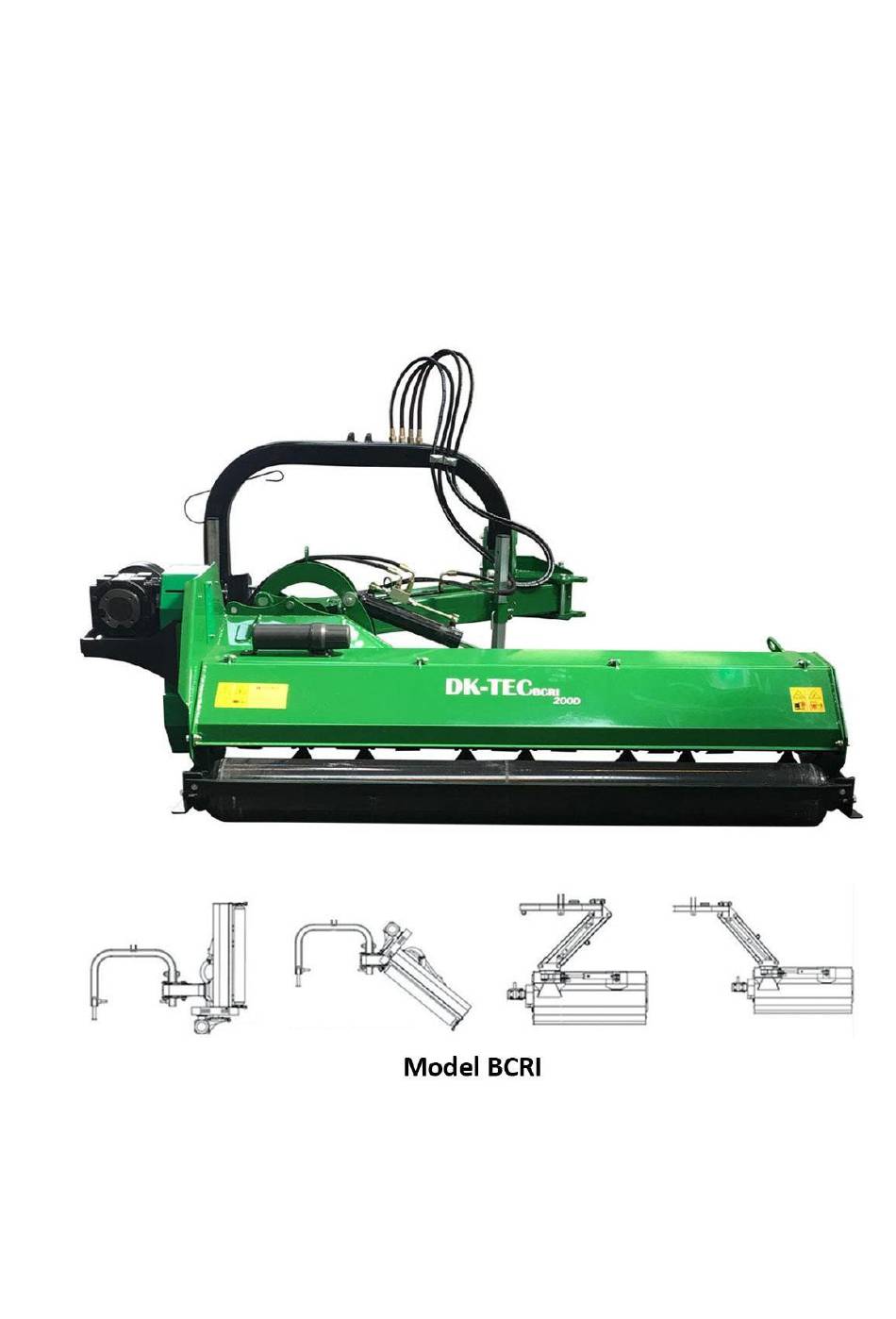

- Page 1 Flail Mower User Manual Original manual Model BCRI ALWAYS READ INSTRUCTIONS BEFORE USING THE MACHINE DK-TEC A/S Ærøvej 8, 5800 Nyborg Telephone: 66128222 Email: Info@dk-tec.dk...
-
Page 2: Table Of Contents
Table of Contents: Important safety information… ........................3-5 Safety Labels ................................6-7 Introduction… ................................8 Section 1: Operating Instruction… ........................9 Section2: Adjustments ............................10 Section3: Maintenaince..........................11-12... -
Page 3: Important Safety Information
Important safety information Safety at all times Read and understand the instructions in this manual before operating the machine. See "Safety Labels" and read all instructions on this. Do not allow anyone to operate this machine who has not fully read and understood this manual and who has not been properly trained in the safe operation of the machine. - Page 4 For your protection: ● Read and understand the "Safety labels" section. Read all the instructions given on them. Shutdown and storage: ● Lower the flail mower to the ground, set the tractor's parking brake, turn off the engine and take the ignition key. ●...
- Page 5 Preparing for emergencies: ● Be prepared if a fire occurs. ● Have a first aid kit and fire extinguisher readily available. ● Have phone numbers for a doctor, ambulance, hospital and fire department nearby. Wear protective equipment: ● Protective clothing must be worn. ●...
-
Page 6: Safety Labels
Safety Labels Your flail mower is equipped with safety labels. They are designed to help you operate your flail mower safely. Read and follow these instructions: 1. Keep all safety labels clean and legible. 2. Replace any damaged or missing labels. If you want to order new labels, go to your 3. -
Page 9: Introduction
Introduction This flail mower is designed with care and built by skilled workers using quality materials. Correct installation, maintenance and safe operating practices will give you many years of satisfactory use of the machine. Specification: The flail mower is designed for category 1 - 3 point suspension or Quick-Hitch System. The flail mower is ideal for grass cutting on, outdoor arenas, construction sites and maintenance on farm and ranch tracks or roads. -
Page 10: Section 1: Operating Instruction
Section 1: Operating Instructions NOTE: Always disengage PTO before raising flail mower in transport position. 1. When raising the flail mower to transport position, ensure that the PTO shaft does not come into contact with the tractor or flail mower. Adjust and set the tractor's 3- point suspension lift height so that the axle does not come into contact with the mower in the raised position. -
Page 11: Section2: Adjustments
11. After mowing the first 50 meters, stop and check that the flail mower is adjusted 12. Do not make sharp turns while the mower is on the ground. correctly. 13. Do not engage the PTO with the mower in the raised position. Section 2: Adjustments Leveling the flail mower: NOTE: Tractor and flail mower must be level. - Page 12 Section 3: Maintenance and lubrication Proper maintenance and adjustment is the key to longevity. With careful and systematic control, you can avoid expensive maintenance, time and repairs. CAUTION, For safety reasons, each maintenance operation must be performed with the tractor PTO disengaged, the flail mower lowered completely to the ground and the tractor engine turned off with the ignition key removed.
- Page 13 Lubrication: PTO shaft Lubrication type: Multi-purpose Grease Roller bearings (Both ends) Lubrication type: Multi-purpose Grease Flap cutter bearings (Both ends) Lubrication type: Multi-purpose Grease Gearbox Lubrication type: SAE 90W Gear Lube Check the oil level in the gearbox by removing the plug located on the right side. The oil must be level with the bottom of the level hole.
- Page 14 EC - DECLARATION OF CONFORMITY DK Fabrikant CHANGZHOUMATENGMACHINERYCOLTDN0.10CH UANGSHENGROAD,1'UOYANGINDUSTRIALPARK,C HANGZHOU,CHINA Erklærerhermedatfølgendemaskine: Betegnelse: Slagleklipper Model: DBCRI,BCRL,BCR Beskrivelse: Slagleklippertilmonteringpåtraktortil slåningafrelevantearealer ErfremstilletioverensstemmelsemedfølgendeEF-direktiv: • Maskindirektivet2006/42/EC Anvendtestandarder: • ENISO12100:2010, • ENISO4254-12:2012 GUOFANGMA/CIIANGZHOU underskrift...
- Page 15 Always see the latest version of the manual, as well as the spare parts list / parts list for your item www.dk-tec.dk, under the machine itself.
