Page 1: Attached Storage

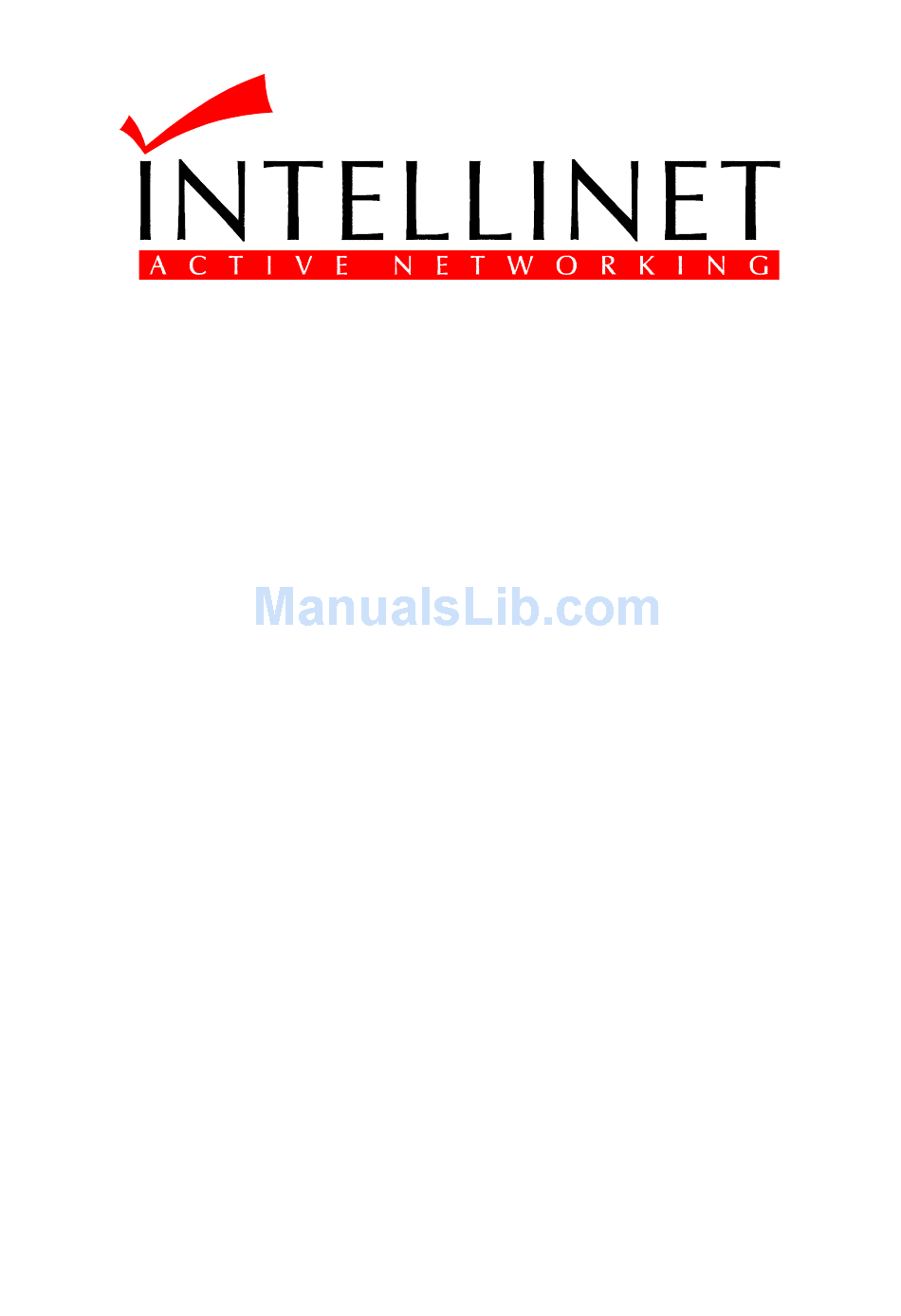

INTELLINET SOHO NAS SOHO Network Attached Storage 500012 User’s Guide User Manual Version: 1.0... - Page 2 Type of PC you are using; • Operating system you are using For more information about INTELLINET products, please visit the INTELLINET Web Site: www.intellinet-network.com The Software installation as described below, may be slightly different from the installation on your computer.
-
Page 3: Table Of Contents
3.3.2 Windows clients ... 26 3.3.3 INTELLIENT NAS Administration Console... 27 3.4 FTP... 28 3.4.1 FTP (File Transfer Protocol) Basic ... 28 3.4.2 Login FTP Site ... 28 4. Appendix ... 30 Reset... 30 5. Glossary... 32 INTELLINET SOHO NAS User Manual Version: 1.0... -
Page 4: Introduction
1. Introduction The INTELLIENT 500012 NAS is an intelligent storage solution for small offices and home network environments. It provides high speed networked storage that is ideal for sharing music, pictures, and real-time motion video files. With its support of industry-standard protocols, The INTELLIENT shared network storage can easily be added to your existing network. -
Page 5: System Specification
Net Weight: 1.5kg and Gross Weight: 2.5kg. 0~40℃. 0~95%RH. CE/FCC. External Power Adaptor (100~240V/60Hz/1.7A). Color Status LED Activity Power On Power Off Flashing Transfer/Receive Data Flashing Read/Write Data HDD Full HDD have free space INTELLINET SOHO NAS User Manual Version: 1.0... -
Page 6: Package Contents
1.6 System Requirements for Configuration • Computer with Windows2000 SP2 or above, Windows XP and Linux-based operating system with an installed Ethernet adapter • Internet Explorer or Netscape Navigator version 6.0 or above, with JavaScript enabled INTELLINET SOHO NAS User Manual Version: 1.0... -
Page 7: Quick Installation
2.1. HD tray installation guide Step 1: Draw out the HDD tray from the system. Install HDD in the tray. Step 2: Screw the HDD on the tray. Step 3: HDD assembled in the tray. INTELLINET SOHO NAS User Manual Version: 1.0... - Page 8 INTELLINET SOHO NAS Step 4: Assembled HDD tray Step 5: Insert IDE cable into HDD. Step 6: Insert power cable into HDD. Step 7: Install assembled HDD tray into system. Step 8: Screw HDD tray on the system. Step 9: Cover the system with top chassis.
-
Page 9: System Outlook And Led
INTELLINET SOHO NAS 2.2. System outlook and LED User Manual Version: 1.0... -
Page 10: I/O Port On The Back Side
INTELLINET SOHO NAS 2.3. I/O port on the back side Notice: The left USB port only support HDD or flash drive, and the right USB port only support printer. User Manual Version: 1.0... -
Page 11: Software Installation
Please do not power off either your computer or the NAS during this process. This could take a few minutes depending on your hard drive capacity. Step 07: When the system upgrade process is completed, you will see the message below in your web browser. INTELLINET SOHO NAS User Manual Version: 1.0... - Page 12 Step 10: Click “Administration Console” to operate Step 11: Click the “Server Web Management” and key in the default username and password”, then you can access the system setup. (Notice: The System Default Username and Password is “admin”) INTELLINET SOHO NAS User Manual Version: 1.0...
-
Page 13: Software Instruction
Windows 2000 (Professional, Server, or Advanced Server) with Service Pack 2 or above. • If you are going to use the Intellinet NAS to boot clients, the NIC in each protected client must support Preboot eXecution Environment (PXE) v.99j or above. -
Page 14: Web Management
INTELLINET SOHO NAS 3.2 Web management INTELLIENT NAS is shipped with a set of web management pages to help you manage your system. When the system boots for the first time, the default IP address is 192.168.0.1. You can connect to it via a web browser, such as Microsoft Internet Explorer (suggest to use version 6.0 or above), and you will see the dialog below:... -
Page 15: System Tab
INTELLINET SOHO NAS 3.2.1 System Tab The System tab allows you to configure basic system settings, such as hostname, comment, workgroup, date/time, time zone, and administrator password. Host Name: Host name of NAS server. Comment: Additional description of this INTELLIENT NAS server. You can see it from My Network Places (in Microsoft Windows). -
Page 16: Network Tab
INTELLINET SOHO NAS 3.2.2 Network Tab The Network Tab allows you to configure network-related settings. Profile: There are three predefined profiles available to make the setup process easier. They are Profile1-Conference, Profile2-Home and Profile3-FixedIP. You can simply select and apply one of these predefined profiles. By default the system is configured for Profile1. -
Page 17: Share Tab
There are six predefined network shares (public, share1, share2, share3, share4 and share5). These can be accessed by clients from My Network Places (in Microsoft Windows). You cannot add a new share or delete any of these predefined shares. INTELLINET SOHO NAS User Manual Version: 1.0... -
Page 18: Usb Table
Devices suitable for USB range from simple input devices such as printers and storage devices. You can use this function to addition or remove any USB device. INTELLINET SOHO NAS User Manual Version: 1.0... -
Page 19: Status Tab
INTELLINET SOHO NAS 3.2.5 Status Tab The Status tab displays basic system information including the status of its services and disk space usage. Note that you will not see the whole information before system is ready, i.e. when “SYS ALERT” led is blinking or on. -
Page 20: Advanced Tab
INTELLINET SOHO NAS 3.2.6 Advanced Tab The Advanced Tab allows you to update your firmware, codepage for share folders and view advanced system information, such as S.M.A.R.T information. Firmware Version: You can upgrade the system firmware via HTTP. Code Page: You can change codepage for share folders. -
Page 21: Reset Tab
INTELLINET SOHO NAS 3.2.7 Reset Tab The Reset tab enables you to delete all user data stored on the disk and revert to your configuration back to the factory default values. Reset option: You can just restore the configurations to factory default values or remove the data on the disk in addition. -
Page 22: Logout Tab
INTELLINET SOHO NAS 3.2.8 Logout Tab Select the Logout tab to log out of the system and let another administrator log in. Note that only one login session for the web management is allowed at any given time. Note that when terminating the browser abnormally (for example, closing the window using the Close button on the right top corner), you will not be allowed to log back in again for three minutes. -
Page 23: Usage
1. Open Windows Explorer (or My Computer). 2. Select Tools \ Map Network Drive. 3. Browser to the appropriate share on the INTELLIENT NAS server. 4. Enter login information. You can leave the Connect As field blank. INTELLINET SOHO NAS User Manual Version: 1.0... -
Page 24: Intellient Nas Administration Console
INTELLIENT NAS servers on the network. INTELLIENT NAS Web Management You can use this function to connect to the web management page. It will bring up your default browser and help to direct to the web management page. INTELLINET SOHO NAS User Manual Version: 1.0... -
Page 25: Ftp
Open the Internet Brower. b. Input the FTP IP address at address bar with the “ftp://” prefix. (For example, if the INTELLINET NAS IP Address is 192.168.0.16, please key in the ftp://192.168.0.16). c. Select the “File\Login As” d. Key in your user name and pass word. (User name is “Share Folder Name” and password is “Full Access Password”) - Page 26 INTELLINET SOHO NAS e. Login Success User Manual Version: 1.0...
-
Page 27: Appendix
4. Appendix Reset INTELLINET NAS provides two types of reset; one is restoring the configurations to the factory default values, it can be performed from RESET button in the front panel and the “Reset” web page. The other is deleting all the data on the disk besides restoring configurations, it can be performed from the “Reset”... -
Page 28: Glossary
It is used to create IP address numbers used only within a particular network. TCP/IP (Transmission Control Protocol/Internet Protocol) – This is the standard protocol for data transmission over the Internet. Protocols used to connect hosts on the Internet. INTELLINET SOHO NAS User Manual Version: 0.2...
